0348-0-33-15-34-27-10-0
ActiveMill-Max Manufacturing Corp.

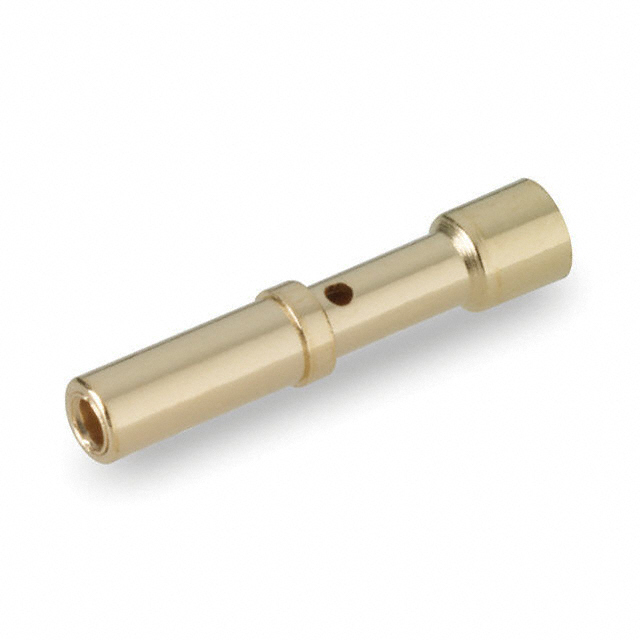

CONN PIN RCPT .032-.046 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
0348-0-33-15-34-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .032-.046 SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0348-0-33-15-34-27-10-0 |
|---|---|
| Accepts Pin Diameter | 0.81 mm, 1.17 mm |
| Accepts Pin Diameter [Max] | 0.046 in |
| Accepts Pin Diameter [Min] | 0.032 " |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.122 in |
| Flange Diameter [diameter] | 3.1 mm |
| Length - Overall [x] | 0.53 in |
| Length - Overall [x] | 13.46 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 1.63 mm |
| Pin Hole Diameter [diameter] | 0.064 in |
| Socket Depth | 0.2 in |
| Socket Depth | 5.08 mm |
| Tail Type | Crimp |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.24 | |
| 10 | $ 1.05 | |||
| 25 | $ 1.00 | |||
| 50 | $ 0.98 | |||
| 100 | $ 0.94 | |||
| 250 | $ 0.85 | |||
| 500 | $ 0.77 | |||
| 1000 | $ 0.68 | |||
| 2500 | $ 0.62 | |||
Description
General part information
0348-0 Series
Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) Crimp Solder
Documents
Technical documentation and resources
No documents available
