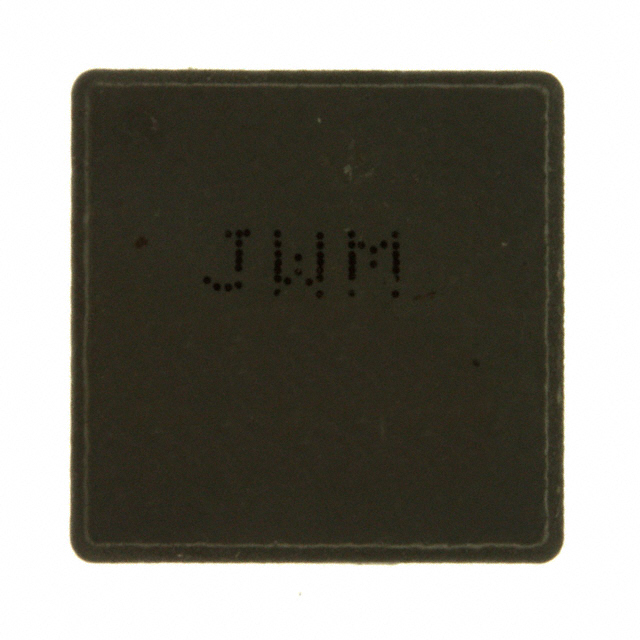

PM12651S-4R7M
ObsoleteBourns Inc.
FIXED IND 4.7UH 12A 7.2 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PM12651S-4R7M
ObsoleteBourns Inc.
FIXED IND 4.7UH 12A 7.2 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PM12651S-4R7M |
|---|---|
| Current Rating (Amps) | 12 A |
| DC Resistance (DCR) [Max] | 7.2 mOhm |
| Height - Seated (Max) [Max] [z] | 5.9 mm |
| Height - Seated (Max) [Max] [z] | 0.232 " |
| Inductance | 4.7 ÁH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 0.547 in |
| Size / Dimension [x] | 13.9 mm |
| Size / Dimension [y] | 0.531 in |
| Size / Dimension [y] | 13.5 mm |
| Tolerance | 20 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PM12651S Series
4.7 µH Shielded Wirewound Inductor 12 A 7.2mOhm Max Nonstandard
