142204-75

Active

Amphenol RF

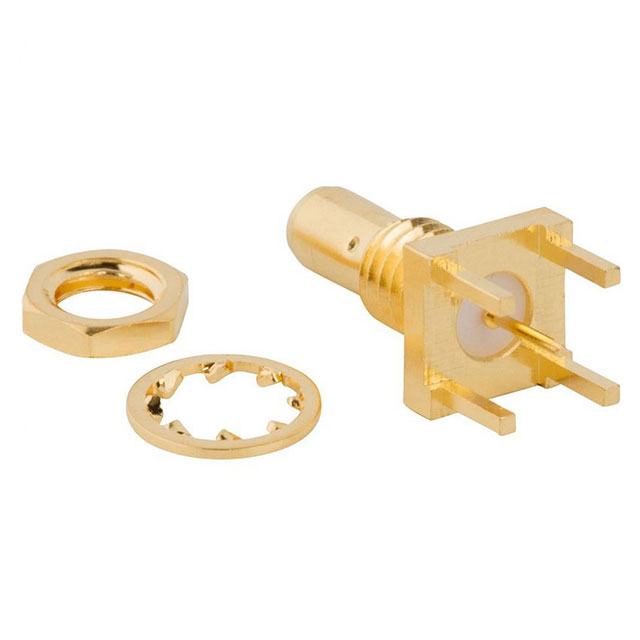

CONN SMB RCPT STR 75 OHM PCB

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMB RCPT STR 75 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	142204-75

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	75 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Frequency - Max [Max]	Body Material	Fastening Type	Center Contact Plating	Mating Cycles	Includes	Dielectric Material	Voltage Rating	Mounting Feature	Mounting Type	Connector Style	Insertion Loss	Housing Color	Contact Termination	Connector Type	Impedance	Shield Termination	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Body Finish
Amphenol RF 142204-75	4 GHz	Brass	Snap-On	Gold	500	1 Connector 1 Lockwasher 1 Nut	Polytetrafluoroethylene (PTFE)	335 V	Bulkhead - Front Side Nut	Panel Mount Through Hole	SMB	0.3 dB	Gold	Solder	Male Pin Receptacle	75 Ohms	Solder	1	-65 ░C	165 °C	Brass	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Receptacle, Male Pin 75 Ohms Panel Mount, Through Hole Solder
