Technical Specifications
Parameters and characteristics for this part
| Specification | 2138A 0101000 |
|---|---|
| Cable Type | Multi-Pair, Cat5e |
| Conductor Insulation | Polyolefin (PO) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Features | Drain Wire, UV Resistant |
| Jacket (Insulation) Diameter [diameter] | 6.73 mm |
| Jacket (Insulation) Diameter [diameter] | 0.265 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 8 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -40 °C |
| Shield Coverage | 100 % |
| Shield Material | Polyester, Aluminum |
| Shield Type | Foil |
| Usage | Video, Ethernet, LAN |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 0.85 | |
Description
General part information
2138A Series

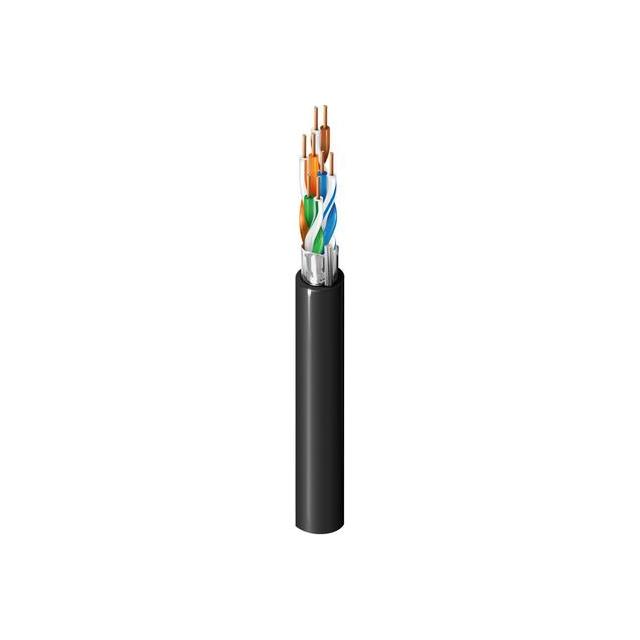

8 (4 Pair) Conductor Multi-Pair, Cat5e Cable Black 24 AWG Foil 1000.0' (304.8m)
