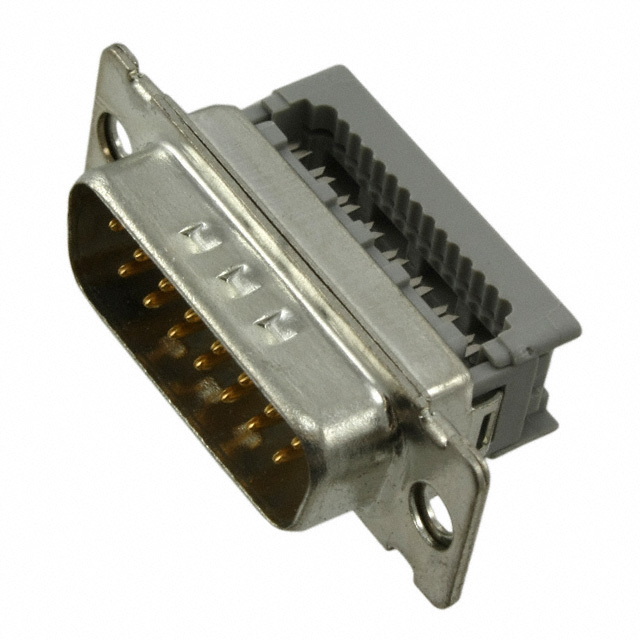

8215-8000

Active

3M (TC)

CONN D-SUB PIN 15 POS 1.38MM IDT RA PANEL MOUNT 15 TERMINAL 1 PORT BOX

Search across all available documentation for this part.

Active

3M (TC)

CONN D-SUB PIN 15 POS 1.38MM IDT RA PANEL MOUNT 15 TERMINAL 1 PORT BOX

Technical Specifications

Parameters and characteristics for this part

Specification	8215-8000

Color	Gray
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT), Polyester
Features	Grounding Indents, Feed Through
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	IDC, Ribbon Cable

Part	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Flange Feature	Contact Finish	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Shell Size, Connector Layout	Dielectric Material	Connector Type	Material Flammability Rating	Connector Style	Color	Contact Type	Termination	Shelf Life Start	For Use With/Related Products	Shelf Life	Type
3M (TC) 8215-7000	Copper Alloy	105 ░C	-55 °C	15	Housing/Shell (Unthreaded)	Gold	Grounding Indents	0.76 Ám	30 Áin	2	2	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Male Pins Plug	UL94 V-0	D-Sub	Gray	Signal	IDC Ribbon Cable
3M (TC) 8215 / CEF0805							Clear												Date of Manufacture	Optical Screens	24 Months	Optically Clear Adhesive
3M (TC) 8215-8000	Copper Alloy	105 ░C	-55 °C	15	Housing/Shell (Unthreaded)	Gold	Feed Through Grounding Indents	0.76 Ám	30 Áin	2	2	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Male Pins Plug	UL94 V-0	D-Sub	Gray	Signal	IDC Ribbon Cable
3M (TC) 8215-6000	Copper Alloy	105 ░C	-55 °C	15	Housing/Shell (Unthreaded)	Gold	Feed Through Grounding Indents	0.76 Ám	30 Áin	2	2	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Male Pins Plug	UL94 V-0	D-Sub	Gray	Signal	IDC Ribbon Cable
3M (TC) 8215-6009	Copper Alloy	105 ░C	-55 °C	15	Housing/Shell (Unthreaded)	Gold	Feed Through Grounding Indents	0.76 Ám	30 Áin	2	2	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Male Pins Plug	UL94 V-0	D-Sub	Gray	Signal	IDC Ribbon Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Plug, Male Pins Connector
