F1238H12B1-FSR-WS
ActiveMechatronics Fan Group

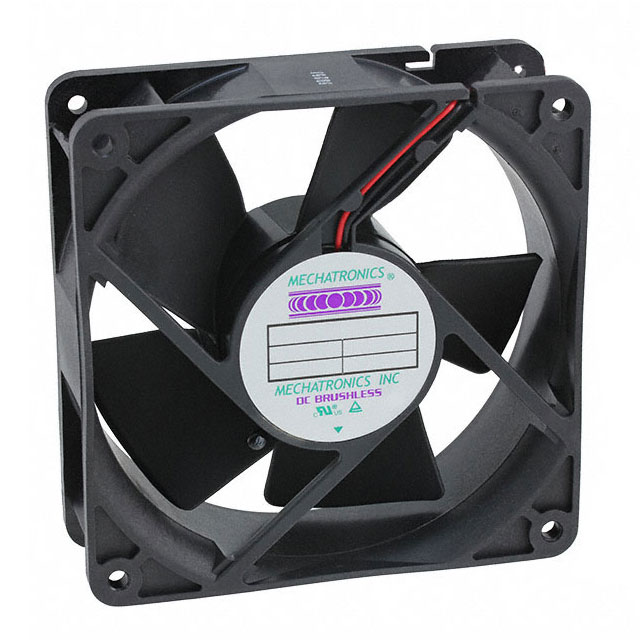

FAN AXIAL 119X38MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
F1238H12B1-FSR-WS
ActiveMechatronics Fan Group
FAN AXIAL 119X38MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | F1238H12B1-FSR-WS | F1238 Series |
|---|---|---|
| Air Flow | 3.22 mł/min | 2.27 - 112 mł/min |
| Air Flow | 115 CFM | 81 - 140 CFM |
| Air Flow | - | 3.14 m³/min |
| Approval Agency | CE, cUL, TUV, UL | CE, cUL, TUV, UL |
| Bearing Type | Ball | Ball |
| Current Rating (Amps) | 0.44 A | 0.09 - 800 A |
| Fan Type | Tubeaxial | Tubeaxial |
| Features | Locked Rotor Protection, Auto Restart, Speed Sensor (Tach), Alarm Sensor | Locked Rotor Protection, Auto Restart, Speed Sensor (Tach), Alarm Sensor, Conformal Coating, Locked Rotor Sensor, Thermistor |
| Material - Blade | - | Polybutylene Terephthalate (PBT) |
| Noise | 41 dB | 33 - 47 dB |
| RPM | 2500 RPM | 1800 - 3600 RPM |
| Size / Dimension [x] | 119 mm | 119 mm |
| Size / Dimension [y] | 119 mm | 119 mm |
| Static Pressure | 0.25 in H2O | 0.14 - 0.37 in H2O |
| Static Pressure | 62.3 Pa | 34.9 - 92.2 Pa |
| Termination | 4 Wire Leads | 2 Wire Leads, 3 Wire Leads, 4 Wire Leads, 2 Terminals |
| Voltage - Rated | 12 VDC | 5 - 24 VDC |
| Voltage - Rated | - | 48 VDC |
| Weight | - | 0.097 - 0.59 lb |
| Weight | - | 44 - 267.62 g |
| Width [y] | 38 mm | 38 mm |
F1238 Series
FAN AXIAL 119X38MM 24VDC WIRE
| Part | Approval Agency | Size / Dimension [y] | Size / Dimension [x] | Current Rating (Amps) | Termination | Width [y] | Bearing Type | Fan Type | Static Pressure | Static Pressure | Air Flow | Air Flow | RPM | Noise | Features | Voltage - Rated | Voltage - Rated [custom] | Weight | Weight | Material - Blade | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mechatronics Fan Group F1238H24B-FSR | CE, cUL, TUV, UL | 119 mm | 119 mm | 0.22 A | 2 Wire Leads | 38 mm | Ball | Tubeaxial | 0.25 in H2O | 62.3 Pa | 3.22 mł/min | 115 CFM | 2500 RPM | 41 dB | Auto Restart, Locked Rotor Protection | 24 VDC | |||||
Mechatronics Fan Group F1238E48B1-FSR-TTL | CE, cUL, TUV, UL | 119 mm | 119 mm | 0.21 A | 3 Wire Leads | 38 mm | Ball | Tubeaxial | 0.28 in H2O | 69.7 Pa | 3.53 m³/min | 126 CFM | 2800 RPM | 43 dB | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 48 VDC | |||||
Mechatronics Fan Group F1238H12B1-FSR-WS | CE, cUL, TUV, UL | 119 mm | 119 mm | 0.44 A | 4 Wire Leads | 38 mm | Ball | Tubeaxial | 0.25 in H2O | 62.3 Pa | 3.22 mł/min | 115 CFM | 2500 RPM | 41 dB | Alarm Sensor, Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 12 VDC | |||||
Mechatronics Fan Group F1238L48B1-FHR-CC-GB | CE, cUL, TUV, UL | 119 mm | 119 mm | 3 Wire Leads | 38 mm | Ball | Tubeaxial | 0.2 in H2O | 49.8 Pa | 2.6 m³/min | 93 CFM | 2400 RPM | 35 dB | Auto Restart, Conformal Coating, Speed Sensor (Tach) | 48 VDC | 0.59 lb | 267.62 g | ||||
Mechatronics Fan Group F1238E12B-FSR | CE, cUL, TUV, UL | 119 mm | 119 mm | 0.7 A | 2 Wire Leads | 38 mm | Ball | Tubeaxial | 0.28 in H2O | 69.7 Pa | 3.53 m³/min | 126 CFM | 2800 RPM | 43 dB | Auto Restart, Locked Rotor Protection | 12 VDC | |||||
Mechatronics Fan Group F1238H12B2-FS | CE, cUL, TUV, UL | 119 mm | 119 mm | 0.44 A | 3 Wire Leads | 38 mm | Ball | Tubeaxial | 0.25 in H2O | 62.3 Pa | 3.22 mł/min | 115 CFM | 2500 RPM | 41 dB | Auto Restart, Locked Rotor Sensor | 12 VDC | |||||
Mechatronics Fan Group F1238M12B1-FSR | CE, cUL, TUV, UL | 119 mm | 119 mm | 360 mA | 3 Wire Leads | 38 mm | Ball | Tubeaxial | 0.21 in H2O | 52.3 Pa | 2.94 m³/min | 105 CFM | 2300 RPM | 38 dB(A) | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 12 VDC | |||||
Mechatronics Fan Group F1238L05B-FS | CE, cUL, TUV, UL | 119 mm | 119 mm | 800 mA | 2 Wire Leads | 38 mm | Ball | Tubeaxial | 0.2 in H2O | 49.8 Pa | 2.6 m³/min | 93 CFM | 2400 RPM | 35 dB | Auto Restart | 5 V | Polybutylene Terephthalate (PBT) | ||||
Mechatronics Fan Group F1238X24B2-FSR | CE, cUL, TUV, UL | 119 mm | 119 mm | 0.5 A | 3 Wire Leads | 38 mm | Ball | Tubeaxial | 0.3 in H2O | 74.7 Pa | 3.92 mł/min | 140 CFM | 3100 RPM | 45 dB(A) | Auto Restart, Locked Rotor Sensor | 24 VDC | |||||
Mechatronics Fan Group F1238L05B-FSR | CE, cUL, TUV, UL | 119 mm | 119 mm | 800 mA | 2 Wire Leads | 38 mm | Ball | Tubeaxial | 0.17 in H2O | 42.3 Pa | 2.63 m³/min | 94 CFM | 2050 RPM | 36 dB | Auto Restart, Locked Rotor Protection | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 15.87 | |
Description
General part information
F1238 Series
Fan Tubeaxial 12VDC Square - 119mm L x 119mm H Ball 115.0 CFM (3.22m³/min) 4 Wire Leads
