57040-500
ActiveLaird Thermal Systems, Inc.

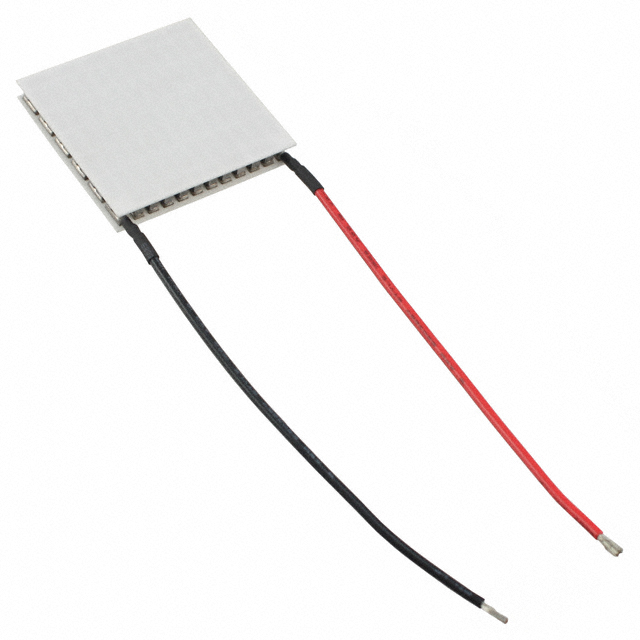

PELTIER CP2,71,10,L1,W4.5
Deep-Dive with AI
Search across all available documentation for this part.
57040-500
ActiveLaird Thermal Systems, Inc.
PELTIER CP2,71,10,L1,W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 57040-500 |
|---|---|
| Current - Max [Max] | 9 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 5.59 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 44.2 W |
| Resistance | 810 mOhms |
| Size / Dimension [x] | 43.94 mm |
| Size / Dimension [y] | 43.94 mm |
| Voltage - Max [Max] | 7.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 53.38 | |
| 5 | $ 50.17 | |||
| 10 | $ 48.85 | |||
| 25 | $ 47.16 | |||
| 50 | $ 45.92 | |||
| 100 | $ 45.00 | |||
Description
General part information
57040 Series
Peltier Module 44.2W @ 25°C 9 A 80°C
Documents
Technical documentation and resources
