TE Connectivity AMP Connectors

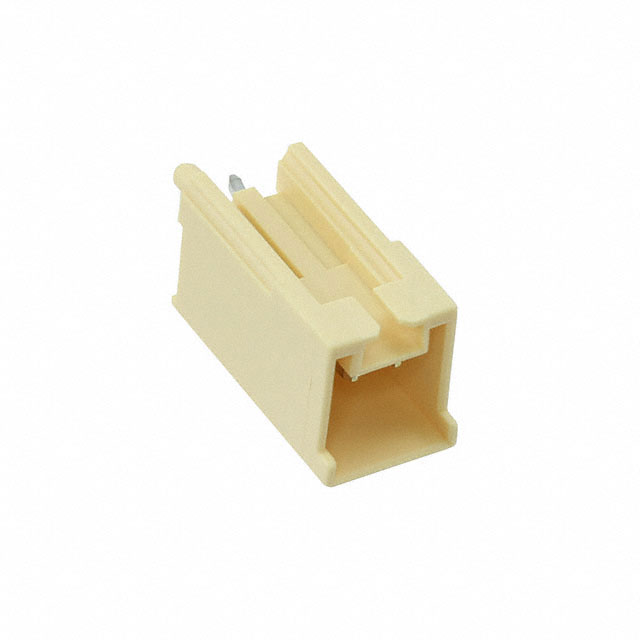

CONN HEADER VERT 2POS 2.5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 2POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	917722-4

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.185 in
Contact Length - Mating	4.7 mm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Yellow
Insulation Height	15.29 mm
Insulation Height	0.602 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights [z]	19.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Overall Contact Length	15.9 mm
Overall Contact Length	0.626 in
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	50 V

CONN HEADER VERT 2POS 2.5MM

Part	Connector Type	Mated Stacking Heights [z]	Shrouding	Contact Finish - Post	Features	Fastening Type	Material Flammability Rating	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Number of Rows	Style	Termination	Applications	Contact Shape	Insulation Height	Insulation Height	Current Rating (Amps)	Mounting Type	Number of Positions	Contact Type	Contact Length - Post	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Voltage Rating	Insulation Material	Pitch - Mating	Pitch - Mating
TE Connectivity AMP Connectors 917722-4	Header	19.2 mm	Shrouded - 4 Wall	Tin	Board Guide	Latch Holder	UL94 V-0	All	15.9 mm	0.626 in	1	Board to Cable/Wire	Kinked Pin, Solder	General Purpose	Square	15.29 mm	0.602 in	3 A	Through Hole	2	Male Pin	3.2 mm	0.126 in	0.185 in	4.7 mm	Copper Alloy	-30 ░C	105 ░C	Yellow	50 V	Polyamide (PA66), Nylon 6/6, Glass Filled	2.5 mm	0.098 in
