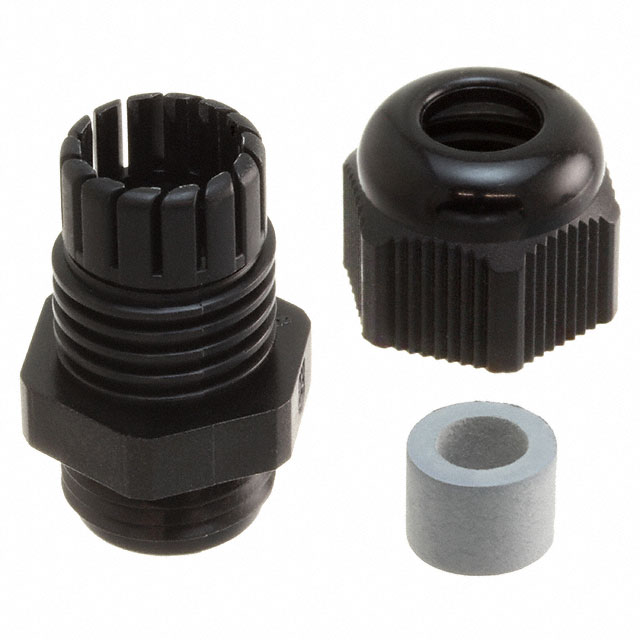

CG-PG9-2-BK

Active

Essentra Access Solutions

CABLE GLAND 4-8MM PG9 POLYAMIDE

Search across all available documentation for this part.

Active

Essentra Access Solutions

CABLE GLAND 4-8MM PG9 POLYAMIDE

Technical Specifications

Parameters and characteristics for this part

Specification	CG-PG9-2-BK

Color	Black
Includes	Sealing Gland, Sealing Nut
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	8 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in
Outside Cable Diameter (Min) [Min]	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm
Panel Hole Size	0.606 in
Panel Hole Size	15.4 mm
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	PG9
Type	Cable Gland

Part	Thread Size	Color	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Material	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Ingress Protection	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
Essentra Access Solutions CG-PG9-1-BK	PG9	Black	0.606 in	15.4 mm	0.236 in	6 mm	Polyamide (PA) Nylon	Sealing Gland Sealing Nut	100 °C	-20 C	8 mm	0.315 in	IP68 - Dust Tight Waterproof	Cable Gland	0.079 in	2 mm
Essentra Access Solutions CG-PG9-2-BK	PG9	Black	0.606 in	15.4 mm	0.315 in	8 mm	Polyamide (PA) Nylon	Sealing Gland Sealing Nut	100 °C	-20 C	8 mm	0.315 in	IP68 - Dust Tight Waterproof	Cable Gland			0.157 in	4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon PG9 Black
