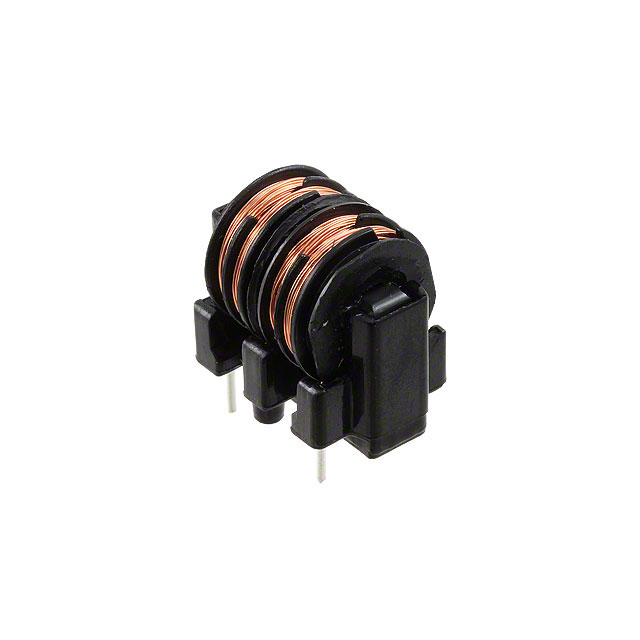

Specification	SS11VL-R17036

Current Rating (Max)	1.7 A
DC Resistance (DCR) (Max)	190 mOhm
Filter Type	Power Line
Height (Max)	0.768 in
Inductance	3.6 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-25 °C
Package / Case	4 PC Pin, Vertical
Package Leads	4 Leads
Package Name	Vertical
Size / Dimension Length	0.866 in
Size / Dimension Width	0.571 in
Voltage Rating - AC	250 V

SS11VL Series

Part	Height (Max)	Number of Lines	Mounting Type	Package Leads	Package / Case	Package Name	Inductance	Voltage Rating - AC	Size / Dimension Width	Size / Dimension Length	Operating Temperature (Min)	Operating Temperature (Max)	Current Rating (Max)	Filter Type	DC Resistance (DCR) (Max)
KEMET SS11VL-R17036	0.768 in	2	Through Hole	4 Leads	4 PC Pin Vertical	Vertical	3.6 mH	250 V	0.571 in	0.866 in	-25 °C	120 °C	1.7 A	Power Line	190 mOhm
KEMET SS11VL-06180	0.768 in	2	Through Hole	4 Leads	4 PC Pin Vertical	Vertical	18 mH	250 V	0.571 in	0.866 in	-25 °C	120 °C	600 mA	Power Line	1.3 Ohm
KEMET SS11VL-04350	0.768 in	2	Through Hole	4 Leads	4 PC Pin Vertical	Vertical	35 mH	250 V	0.571 in	0.866 in	-25 °C	120 °C	400 mA	Power Line	2.6 Ohm
KEMET SS11VL-R07190	0.768 in	2	Through Hole	4 Leads	4 PC Pin Vertical	Vertical	19 mH	250 V	0.571 in	0.866 in	-25 °C	120 °C	700 mA	Power Line	900 mOhm
KEMET SS11VL-R04520	0.768 in	2	Through Hole	4 Leads	4 PC Pin Vertical	Vertical	52 mH	250 V	0.571 in	0.866 in	-25 °C	120 °C	400 mA	Power Line	2.6 Ohm
KEMET SS11VL-R11076	0.768 in	2	Through Hole	4 Leads	4 PC Pin Vertical	Vertical	7.6 mH	250 V	0.571 in	0.866 in	-25 °C	120 °C	1.1 A	Power Line	400 mOhm
KEMET SS11VL-07120	0.768 in	2	Through Hole	4 Leads	4 PC Pin Vertical	Vertical	12 mH	250 V	0.571 in	0.866 in	-25 °C	120 °C	700 mA	Power Line	900 mOhm
KEMET SS11VL-R13052	0.768 in	2	Through Hole	4 Leads	4 PC Pin Vertical	Vertical	5.2 mH	250 V	0.571 in	0.866 in	-25 °C	120 °C	1.3 A	Power Line	280 mOhm
KEMET SS11VL-R08125	0.768 in	2	Through Hole	4 Leads	4 PC Pin Vertical	Vertical	12.5 mH	250 V	0.571 in	0.866 in	-25 °C	120 °C	800 mA	Power Line	740 mOhm
KEMET SS11VL-R03820	0.768 in	2	Through Hole	4 Leads	4 PC Pin Vertical	Vertical	82 mH	250 V	0.571 in	0.866 in	-25 °C	120 °C	300 mA	Power Line	4.1 Ohm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

KEM_LF0022_SS11VL.pdf

SS11VL-R17036

SS11VL-R17036 | Datasheet

Manufacturer Catalogue EN

Technical Data Sheet EN
