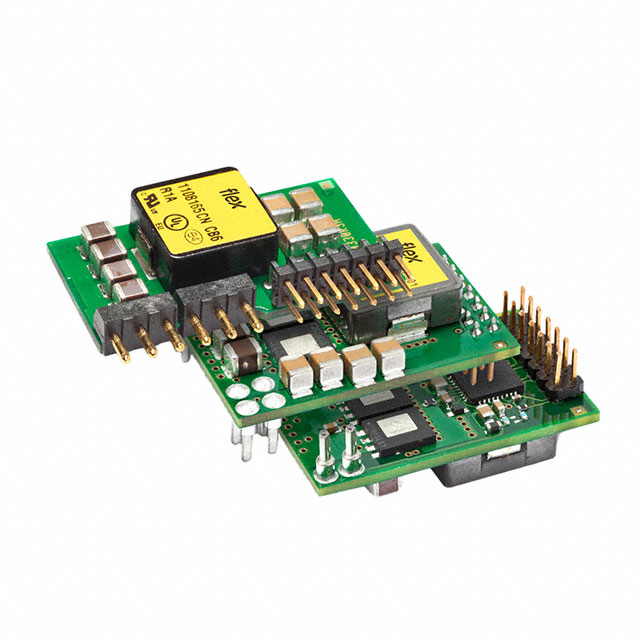

BMR4642002/001

Flex Power Modules

DC DC CONVERTER 0.6-3.3V 132W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BMR4642002/001

Flex Power Modules

DC DC CONVERTER 0.6-3.3V 132W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMR4642002/001	BMR464 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA	CB, UL, IEC, TUV, CSA
Control Features	Active High, Enable	Active High, Enable
Current - Output (Max) [Max]	40 A	40 - 50 A
Efficiency	95.5 %	95.3 - 95.7 %
Features	Remote Sense, Adjustable Output, PMBus™, Remote On/Off	Remote Sense, Adjustable Output, PMBus™, Remote On/Off
Mounting Type	Through Hole	Through Hole, Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	20-SIP Module	20-DIP Module, 20-SIP Module, 20-SMD Module
Power (Watts)	132 W	132 W
Size / Dimension [x]	1.3 "	1.21 - 1.3 in
Size / Dimension [x]	33 mm	30.9 - 33 mm
Size / Dimension [y]	7.6 mm	7.6 - 20 mm
Size / Dimension [y]	0.3 "	0.3 - 0.79 "
Size / Dimension [z]	0.71 in	0.32 - 0.71 "
Size / Dimension [z]	18.1 mm	8.2 - 18.1 mm
Standard Number	62368-1	62368-1
Type	Non-Isolated PoL Module, Digital	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V	14 V
Voltage - Input (Min) [Min]	4.5 V	4.5 V
Voltage - Output 1 [Max]	3.3 V	3.3 V
Voltage - Output 1 [Min]	0.6 V	0.6 V

BMR464 Series

DC DC CONVERTER 0.6-3.3V 165W

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Applications	Approval Agency	Control Features	Features	Current - Output (Max) [Max]	Number of Outputs	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Package / Case	Standard Number	Type	Mounting Type	Voltage - Input (Min) [Min]	Power (Watts)
Flex Power Modules BMR4640008/001	8.2 mm	30.9 mm	0.79 "	1.21 in	20 mm	0.32 "	0.6 V	3.3 V	ITE (Commercial)	CB, CSA, IEC, TUV, UL	Active High, Enable	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	50 A	1	95.7 %	125 °C	-40 °C	14 V	20-DIP Module	62368-1	Non-Isolated PoL Module, Digital	Through Hole	4.5 V
Flex Power Modules BMR4642008/001	18.1 mm	33 mm	0.3 "	1.3 "	7.6 mm	0.71 in	0.6 V	3.3 V	ITE (Commercial)	CB, CSA, IEC, TUV, UL	Active High, Enable	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	50 A	1	95.3 %	125 °C	-40 °C	14 V	20-SIP Module	62368-1	Non-Isolated PoL Module, Digital	Through Hole	4.5 V
Flex Power Modules BMR4641008/001	8.2 mm	30.9 mm	0.79 "	1.21 in	20 mm	0.32 "	0.6 V	3.3 V	ITE (Commercial)	CB, CSA, IEC, TUV, UL	Active High, Enable	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	50 A	1	95.7 %	125 °C	-40 °C	14 V	20-SMD Module	62368-1	Non-Isolated PoL Module, Digital	Surface Mount	4.5 V
Flex Power Modules BMR4640002/001	8.2 mm	30.9 mm	0.79 "	1.21 in	20 mm	0.32 "	0.6 V	3.3 V	ITE (Commercial)	CB, CSA, IEC, TUV, UL	Active High, Enable	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	40 A	1	95.3 %	125 °C	-40 °C	14 V	20-DIP Module	62368-1	Non-Isolated PoL Module, Digital	Through Hole	4.5 V	132 W
Flex Power Modules BMR4642002/001	18.1 mm	33 mm	0.3 "	1.3 "	7.6 mm	0.71 in	0.6 V	3.3 V	ITE (Commercial)	CB, CSA, IEC, TUV, UL	Active High, Enable	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	40 A	1	95.5 %	125 °C	-40 °C	14 V	20-SIP Module	62368-1	Non-Isolated PoL Module, Digital	Through Hole	4.5 V	132 W
Flex Power Modules BMR4641002/001	8.2 mm	30.9 mm	0.79 "	1.21 in	20 mm	0.32 "	0.6 V	3.3 V	ITE (Commercial)	CB, CSA, IEC, TUV, UL	Active High, Enable	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	40 A	1	95.3 %	125 °C	-40 °C	14 V	20-SMD Module	62368-1	Non-Isolated PoL Module, Digital	Surface Mount	4.5 V	132 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 28.77
		5	$ 28.55
		10	$ 28.33
		25	$ 27.89
		40	$ 26.56
		130	$ 24.34
		260	$ 23.90

Description

General part information

BMR464 Series

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 3.3V 40A 4.5V - 14V Input
