115-47-318-41-001000

Active

Mill-Max Manufacturing Corp.

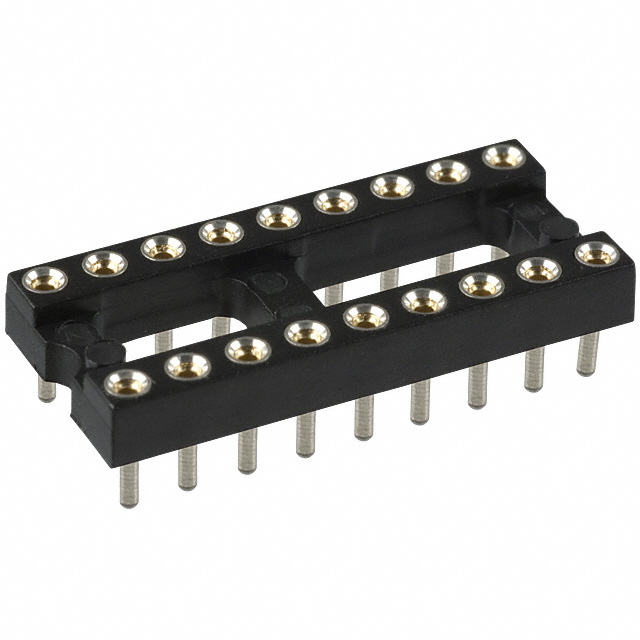

CONN IC DIP SOCKET 18POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

115-47-318-41-001000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 18POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	115-47-318-41-001000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	18
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length [x]	0.108 in
Termination Post Length [x]	2.74 mm
Type	0.3 "
Type	7.62 mm
Type	DIP

115-47 Series

Part	Pitch - Post	Pitch - Post	Termination Post Length [x]	Termination Post Length [x]	Type	Type	Type	Mounting Type	Contact Finish - Post	Termination	Contact Finish - Mating	Contact Material - Post	Features	Housing Material	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Finish Thickness - Mating	Contact Resistance	Material Flammability Rating	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 115-47-640-41-001000	2.54 mm	0.1 in	0.108 in	2.74 mm	DIP	0.6 in	15.24 mm	Through Hole	Tin	Solder	Gold	Brass Alloy	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Beryllium Copper	200 µin	5.08 µm	40	20	2	Flash
Mill-Max Manufacturing Corp. 115-47-428-41-003000	2.54 mm	0.1 in			DIP	0.4 in	10.16 mm	Through Hole	Tin	Solder	Gold	Brass Alloy	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Beryllium Copper	200 µin	5.08 µm	28			Flash	10 mOhm	UL94 V-0	2.41 mm	0.095 in
Mill-Max Manufacturing Corp. 115-47-636-41-001000	2.54 mm	0.1 in	0.108 in	2.74 mm	DIP	0.6 in	15.24 mm	Through Hole	Tin	Solder	Gold	Brass Alloy	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Beryllium Copper	200 µin	5.08 µm	36			Flash	10 mOhm	UL94 V-0
Mill-Max Manufacturing Corp. 115-47-428-41-001000	2.54 mm	0.1 in	0.108 in	2.74 mm	DIP	0.4 in	10.16 mm	Through Hole	Tin	Solder	Gold	Brass Alloy	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Beryllium Copper	200 µin	5.08 µm	28			Flash	10 mOhm	UL94 V-0
Mill-Max Manufacturing Corp. 115-47-320-41-003000	2.54 mm	0.1 in			DIP	0.3 "	7.62 mm	Through Hole	Tin	Solder	Gold	Brass Alloy	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Beryllium Copper	200 µin	5.08 µm	20			Flash			2.41 mm	0.095 in
Mill-Max Manufacturing Corp. 115-47-318-41-001000	2.54 mm	0.1 in	0.108 in	2.74 mm	DIP	0.3 "	7.62 mm	Through Hole	Tin	Solder	Gold	Brass Alloy	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Beryllium Copper	200 µin	5.08 µm	18			Flash
Mill-Max Manufacturing Corp. 115-47-624-41-001000	2.54 mm	0.1 in	0.108 in	2.74 mm	DIP	0.6 in	15.24 mm	Through Hole	Tin	Solder	Gold	Brass Alloy	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Beryllium Copper	200 µin	5.08 µm	24			Flash
Mill-Max Manufacturing Corp. 115-47-424-41-003000	2.54 mm	0.1 in			DIP	0.4 in	10.16 mm	Through Hole	Tin	Solder	Gold	Brass Alloy	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Beryllium Copper	200 µin	5.08 µm	24			Flash	10 mOhm	UL94 V-0	2.41 mm	0.095 in
Mill-Max Manufacturing Corp. 115-47-310-41-001000	2.54 mm	0.1 in	0.108 in	2.74 mm	DIP	0.3 "	7.62 mm	Through Hole	Tin	Solder	Gold	Brass Alloy	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Beryllium Copper	200 µin	5.08 µm				Flash	10 mOhm	UL94 V-0			2 x 5	10
Mill-Max Manufacturing Corp. 115-47-648-41-003000	2.54 mm	0.1 in			DIP	0.6 in	15.24 mm	Through Hole	Tin	Solder	Gold	Brass Alloy	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Beryllium Copper	200 µin	5.08 µm	48			Flash	10 mOhm	UL94 V-0	2.41 mm	0.095 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.76
		22	$ 1.53
		44	$ 1.43
		110	$ 1.37
		264	$ 1.24
		506	$ 1.14
		1012	$ 0.98
		2508	$ 0.91

Description

General part information

115-47 Series

18 (2 x 9) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
