Specification	IXDD414SI

Channel Type	Single
Current - Peak Output (Sink)	14 A
Current - Peak Output (Source)	14 A
Driven Configuration	Low-Side
Fall Time (Typ)	22 ns
Gate Channel	N-Channel, P-Channel
Gate Type	IGBT, N-Channel, P-Channel MOSFET, MOSFET
Input Type	Non-Inverting
Logic Voltage - VIH	3.5 V
Logic Voltage - VIL	0.8 V
Mounting Type	Surface Mount
Number of Drivers	1
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Package Length	0.154 in
Package Name	14-SOIC
Package Width	3.9 mm
Rise Time (Typ)	25 ns
Voltage - Supply (Maximum)	35 V
Voltage - Supply (Minimum)	4.5 V

IXDD414 Series

Part	Gate Type	Operating Temperature (Min)	Operating Temperature (Max)	Current - Peak Output (Source)	Current - Peak Output (Sink)	Driven Configuration	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Channel Type	Package Name	Mounting Type	Logic Voltage - VIH	Logic Voltage - VIL	Number of Drivers	Fall Time (Typ)	Rise Time (Typ)	Gate Channel	Input Type	Package Length	Package Width	Package / Case	Package Leads
LITTELFUSE IXDD414PI	IGBT MOSFET N-Channel P-Channel MOSFET	-55 °C	150 °C	14 A	14 A	Low-Side	35 V	4.5 V	Single	8-DIP	Through Hole	3.5 V	0.8 V	1	22 ns	25 ns	N-Channel P-Channel	Non-Inverting	0.3 in	7.62 mm
LITTELFUSE IXDD414CI	IGBT MOSFET N-Channel P-Channel MOSFET	-55 °C	150 °C	14 A	14 A	Low-Side	35 V	4.5 V	Single	TO-220-5	Through Hole	3.5 V	0.8 V	1	22 ns	25 ns	N-Channel P-Channel	Non-Inverting			TO-220-5
LITTELFUSE IXDD414SI	IGBT MOSFET N-Channel P-Channel MOSFET	-55 °C	150 °C	14 A	14 A	Low-Side	35 V	4.5 V	Single	14-SOIC	Surface Mount	3.5 V	0.8 V	1	22 ns	25 ns	N-Channel P-Channel	Non-Inverting	0.154 in	3.9 mm

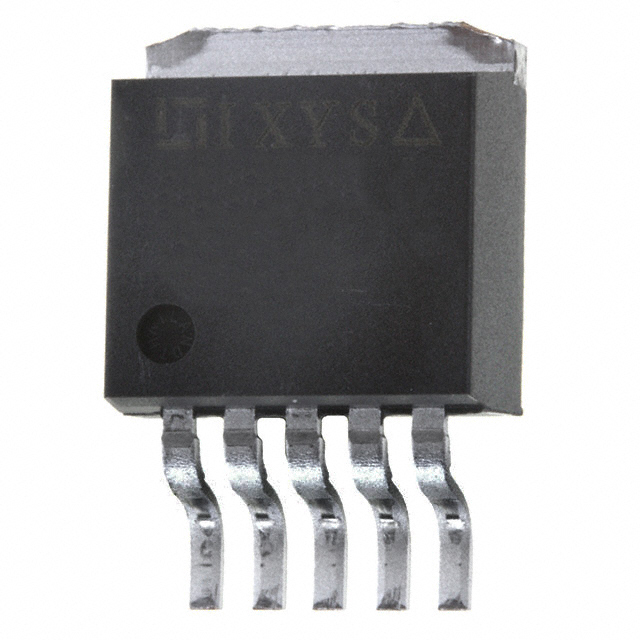

LITTELFUSE IXDD414YI	IGBT MOSFET N-Channel P-Channel MOSFET	-55 °C	150 °C	14 A	14 A	Low-Side	35 V	4.5 V	Single	D2PAK TO-263-5	Surface Mount	3.5 V	0.8 V	1	22 ns	25 ns	N-Channel P-Channel	Non-Inverting				5 Leads
