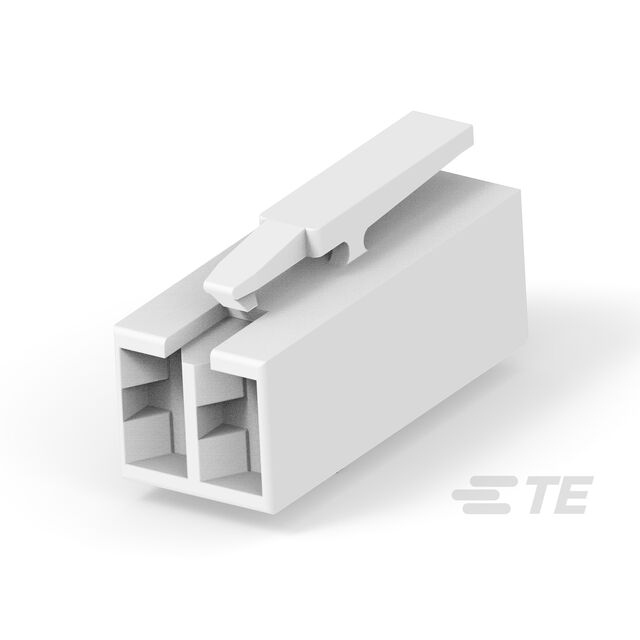

Specification	2315717-1

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Glow Wire Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Pitch	0.197 in

RAST 5 Series

Part	Number of Positions	Accessory Type	Color	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Number of Rows	Pitch	Fastening Type	Insulation Material	Contact Termination	Contact Type	Connector Type	Terminal Type	Stacking Direction	Terminal Size	Gender	Style	Contact Shape	Material Flammability Rating	Shrouding	Features	Contact Material	Insulation Height	Contact Length - Post	Voltage Rating	Number of Positions Loaded	Termination	Pitch - Mating	Current Rating	Contact Finish - Mating	Insulation Color	Contact Finish - Post	Note	Contact Finish Thickness - Mating	Contact Finish Thickness - Post

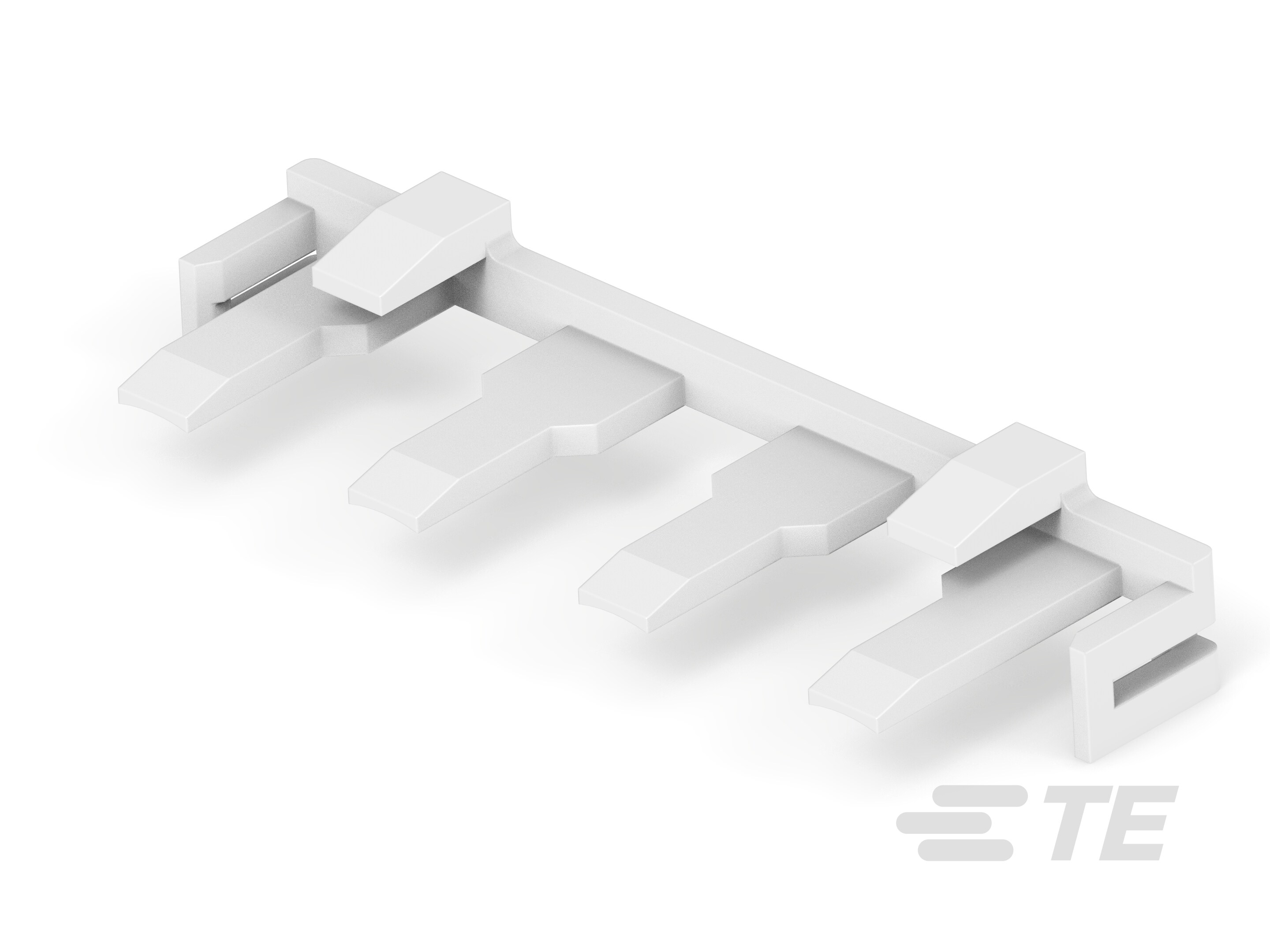

TE Connectivity AMP Connectors 2364004-4	4	Retainer
TE Connectivity AMP Connectors 1-1241964-5	5		Natural	-40 °C	105 °C	Free Hanging (In-Line)	1	0.197 in	Latch Holder	Nylon 6 Polyamide (PA6)	Crimp	Female Socket	Receptacle
TE Connectivity AMP Connectors 2371464-2	2		Natural			Free Hanging (In-Line)								Disconnect Quick Connect	Side to Side	0.25 in	Female Receptacle	Housing
TE Connectivity AMP Connectors 1-2232532-2	2			-40 °C	120 °C	Through Hole	1		Latch Holder	Nylon Polyamide (PA)		Tab	Header					Board	Rectangular	UL94 V-0	Shrouded - 4 Wall	Board Guide Glow Wire Compliant	Brass	0.504 in	0.138 in	250 V	All	Solder	0.197 in	16 A	Tin	Natural	Tin
TE Connectivity AMP Connectors 5-1241965-4	4		Natural	-40 °C	105 °C	Free Hanging (In-Line)	1	0.197 in	Latch Lock	Nylon 6/6 Polyamide (PA66)	Crimp	Female Socket	Plug
TE Connectivity AMP Connectors 2364000-3	3		Natural	-40 °C	105 °C	Free Hanging (In-Line)	1	0.197 in	Latch Lock	Nylon 6/6 Polyamide (PA66)	Crimp	Female Blade Socket	Plug

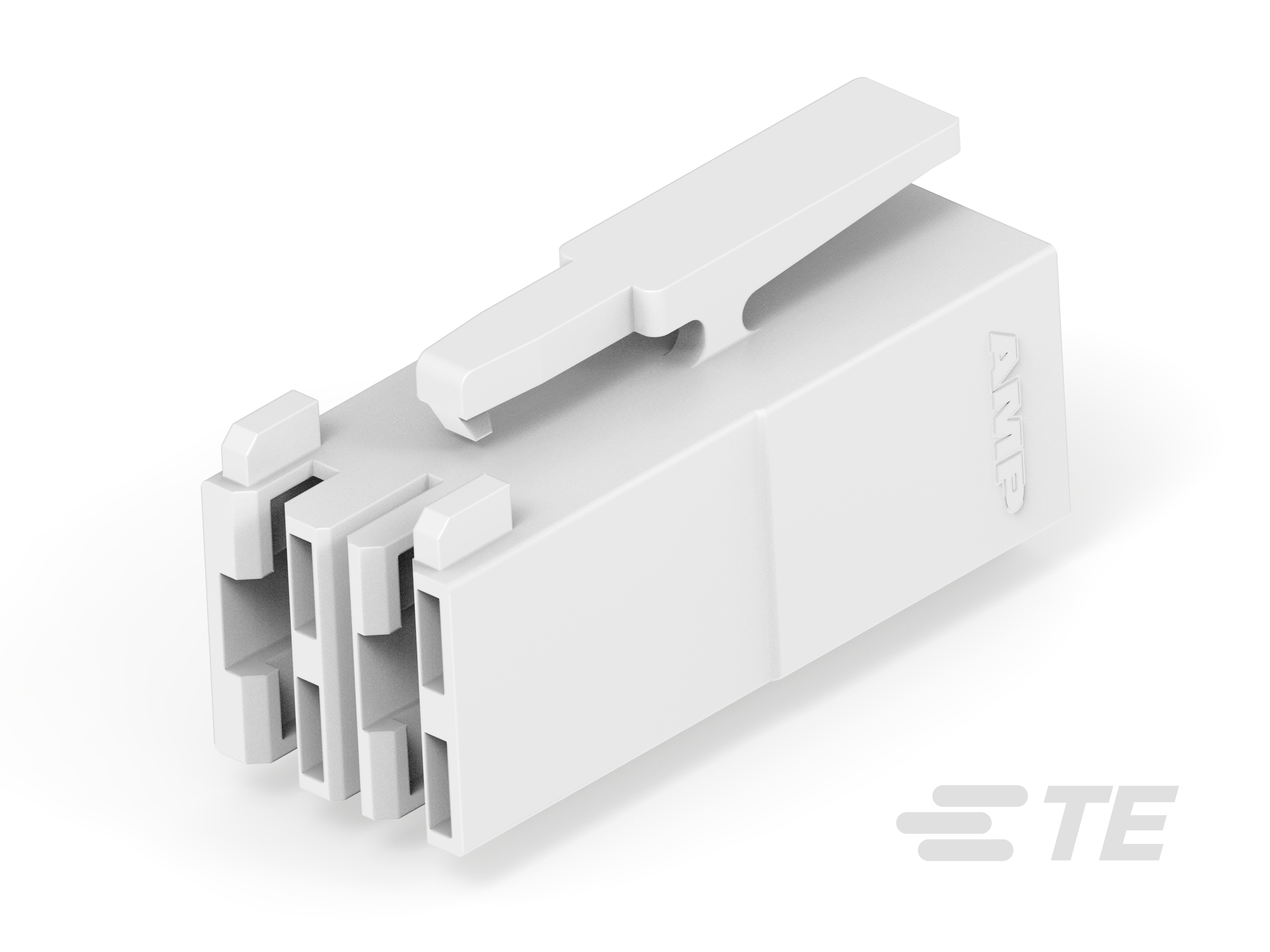

TE Connectivity AMP Connectors 1-2371464-2	2		Natural	-40 °C	110 °C	Free Hanging (In-Line)	1	0.197 in	Latch Lock	Nylon 6/6 Polyamide (PA66)	Crimp	Female Socket	Plug

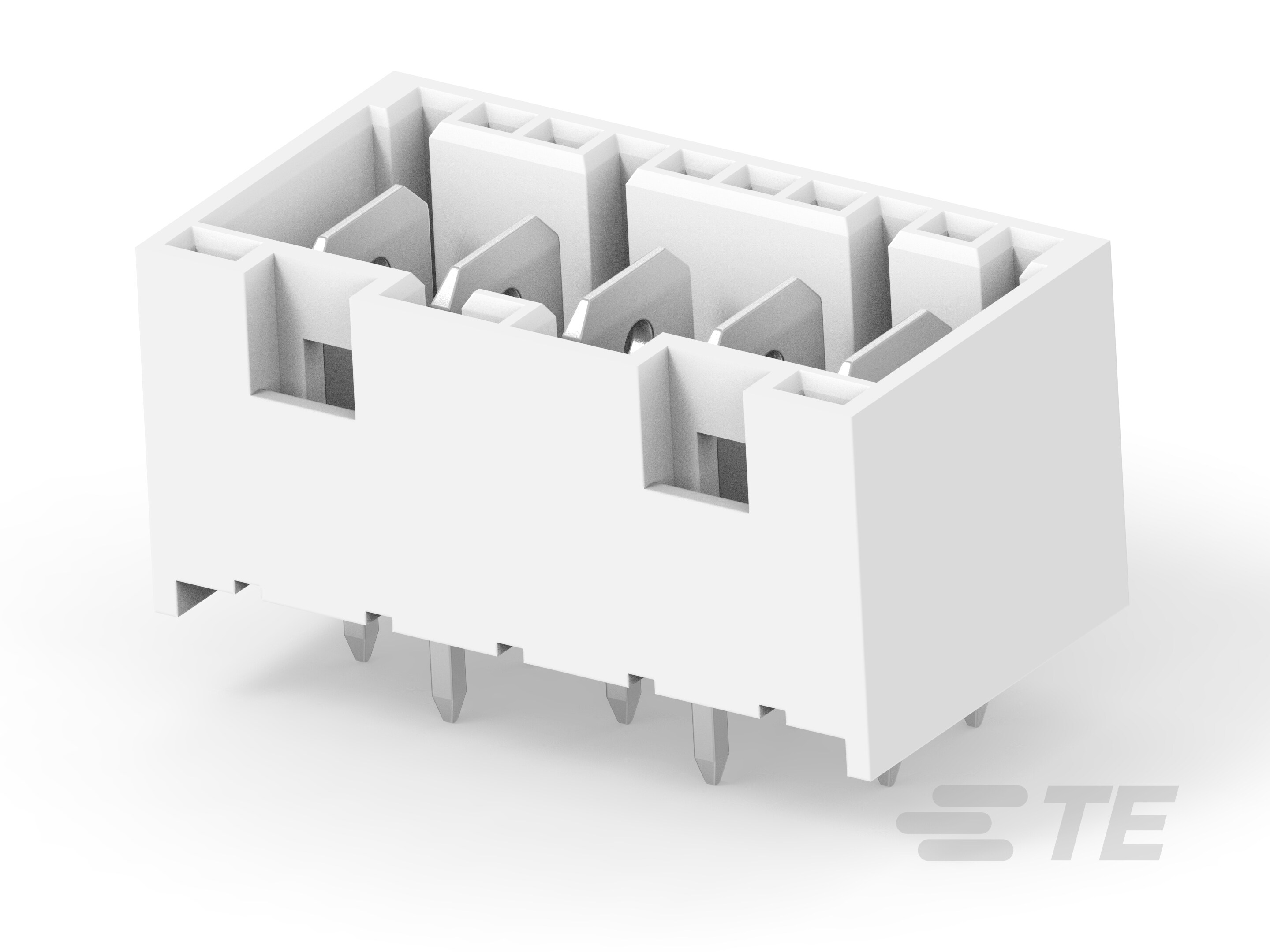

TE Connectivity AMP Connectors 1-2292457-5	5			-40 °C	120 °C	Through Hole	1		Latch Lock	Nylon Polyamide (PA)		Male Blade	Header					Board Cable/Wire	Rectangular	UL94 V-0	Shrouded - 4 Wall	Board Guide	Copper Alloy	0.504 in	0.138 in		All	Solder	0.197 in	16 A	Tin	Natural	Tin
TE Connectivity AMP Connectors 2315717-1	2		Natural			Free Hanging (In-Line)	1	0.197 in	Latch Lock	Nylon 6/6 Polyamide (PA66)	Crimp	Female Socket	Plug									Glow Wire Compliant												Contacts Not Included

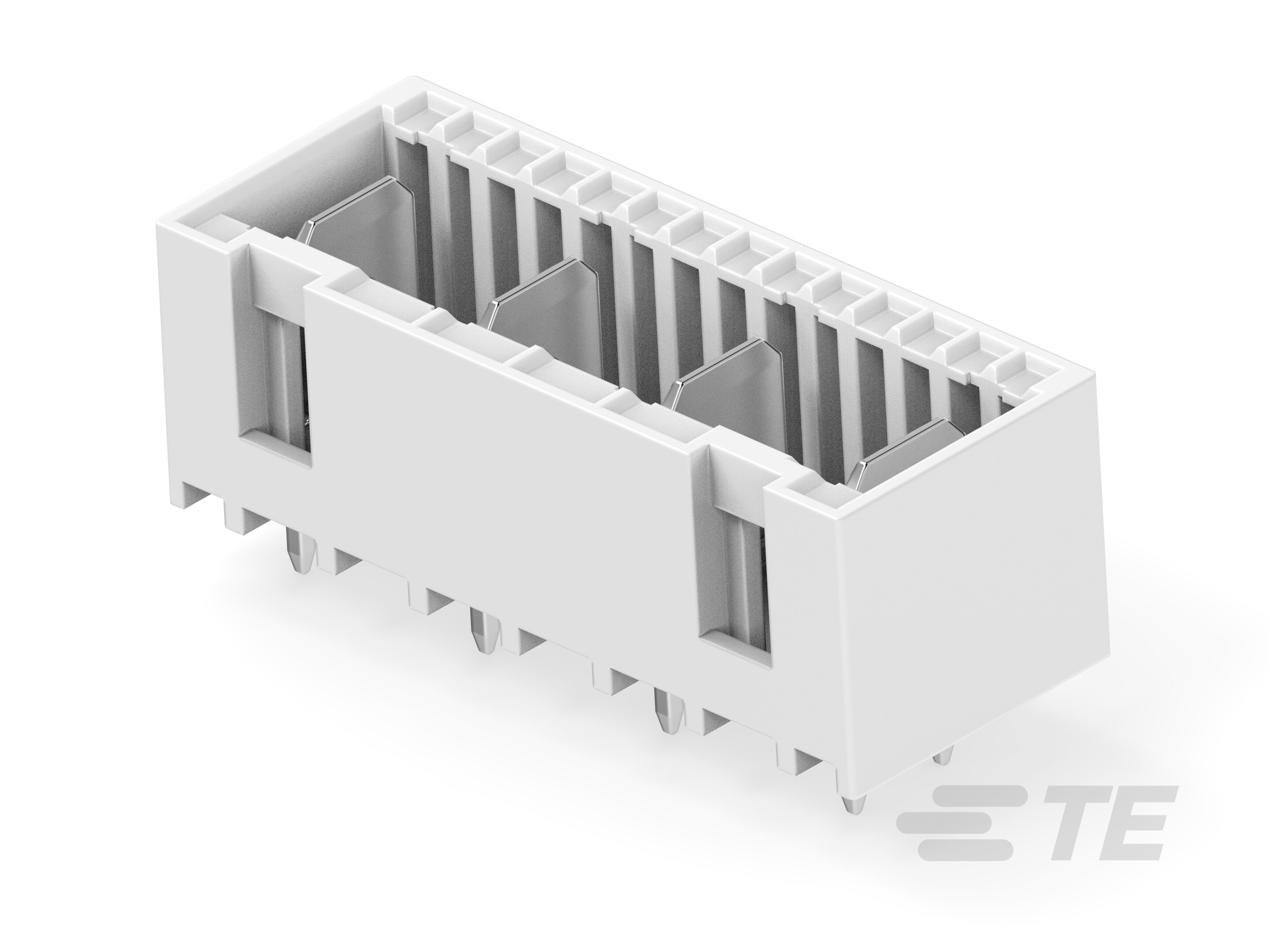

TE Connectivity AMP Connectors 2364002-4	4			-40 °C	120 °C	Through Hole	1		Latch Holder	Nylon Polyamide (PA)		Tab	Header					Board Cable/Wire	Rectangular	UL94 V-0	Shrouded - 4 Wall	Board Guide Glow Wire Compliant	Copper Alloy	0.504 in	0.138 in	400 V	All	Solder	0.197 in	25 A	Tin	Natural	Tin		149.6 µin	150 µin
