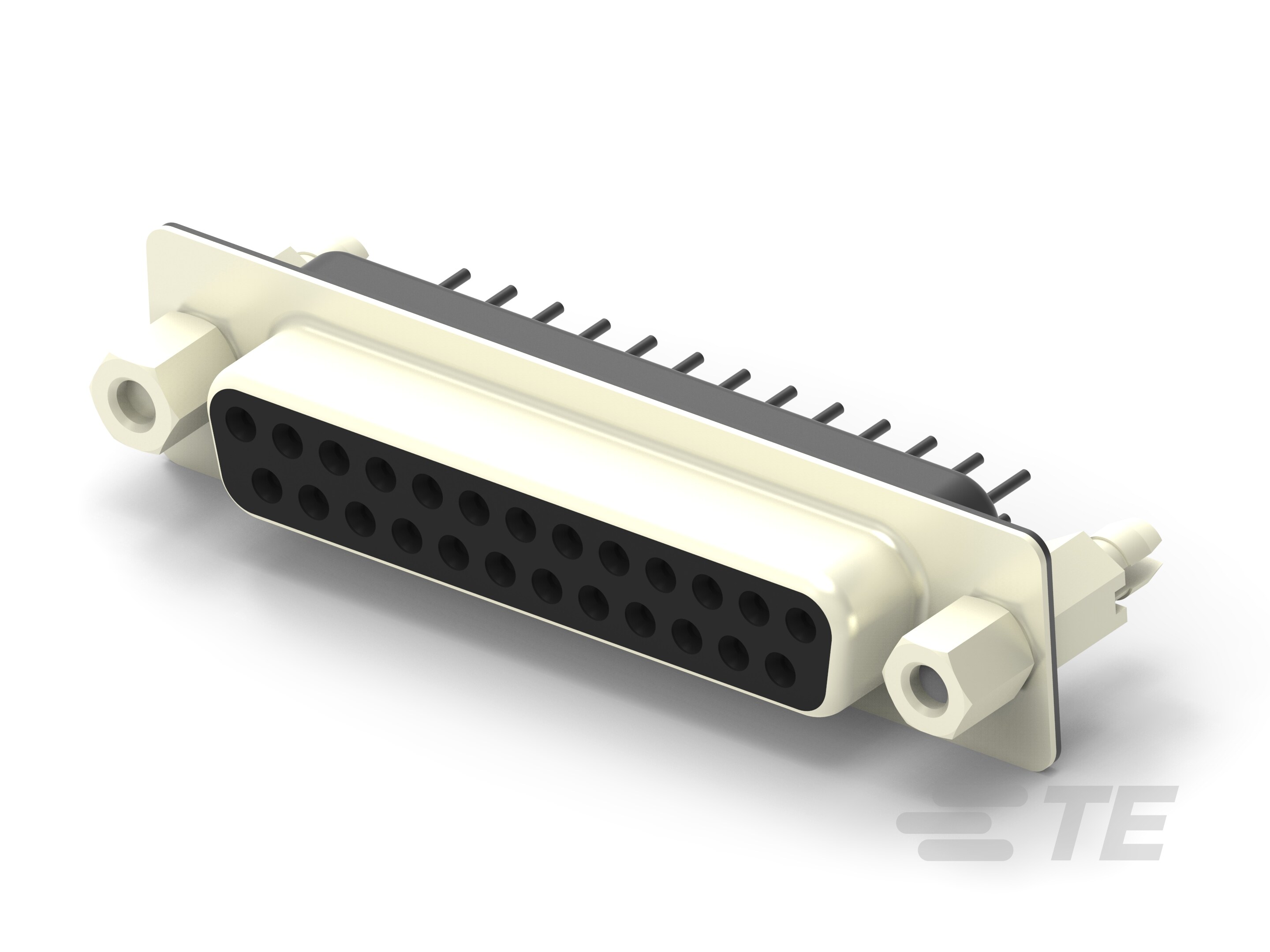

Specification	2301841-2

Color	Black
Connector Layout	DB, B
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Material	Brass
Contact Type	Signal
Current Rating	1.5 A
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT)
Features	Board Lock
Finish	Tin-Nickel Plated
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	25
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	3
Termination	Solder
Voltage Rating	250 V

2301841 Series

Part	Features	Contact Finish Thickness	Current Rating	Flange Feature	Finish	Shell Material	Contact Type	Shell Size	Connector Layout	Number of Positions	Contact Finish	Connector Type	Material Flammability Rating	Number of Rows	Termination	Mounting Type	Connector Style	Color	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Dielectric Material	Contact Material
TE Connectivity AMP Connectors 2301841-2	Board Lock	15 µin	1.5 A	Female Screwlock (4-40) Mating Side	Tin-Nickel Plated	Steel	Signal	3	B DB	25	Gold	Female Sockets Receptacle	UL94 V-0	2	Solder	Through Hole	D-Sub	Black	-55 °C	105 °C	250 V	Glass Filled Polybutylene Terephthalate (PBT)	Brass
