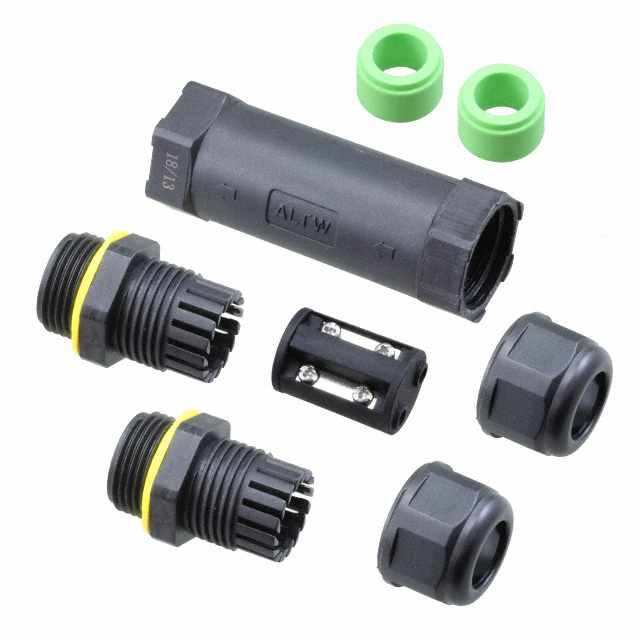

Specification	SC-L-UL13-04-GN

Accessory Type	Cable Joiner
Color	Green, Black
Contact Area (Max)	10.5 mm
Contact Area (Min)	8.5 mm
Features	Dust Tight, Waterproof, 4 Pole
For Use With/Related Products	Cable
Material	Nylon 6, 6, Polyamide (PA66)

SC-L-UL13 Series

Part	For Use With/Related Products	Contact Area (Min)	Contact Area (Max)	Features	Material	Accessory Type	Color

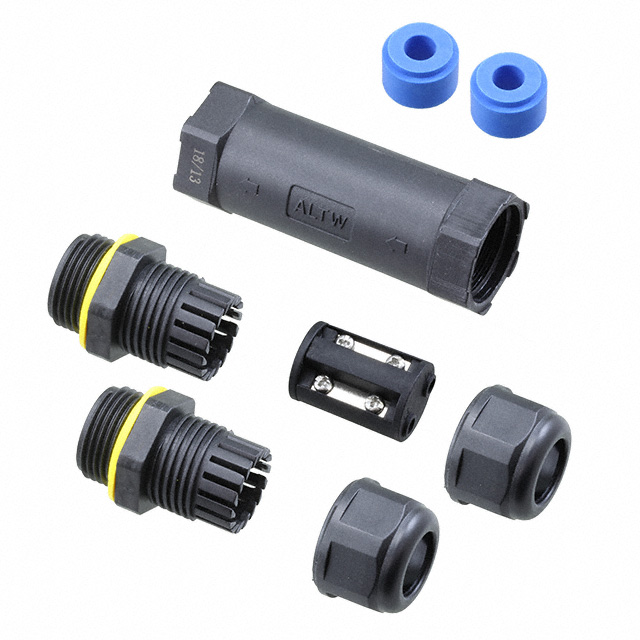

McGill Microwave Systems SC-L-UL13-02-BL	Cable	4.5 mm	6.5 mm	2 Pole Dust Tight Waterproof	6 Nylon 6 Polyamide (PA66)	Cable Joiner	Black Blue
McGill Microwave Systems SC-L-UL13-04-GN	Cable	8.5 mm	10.5 mm	4 Pole Dust Tight Waterproof	6 Nylon 6 Polyamide (PA66)	Cable Joiner	Black Green

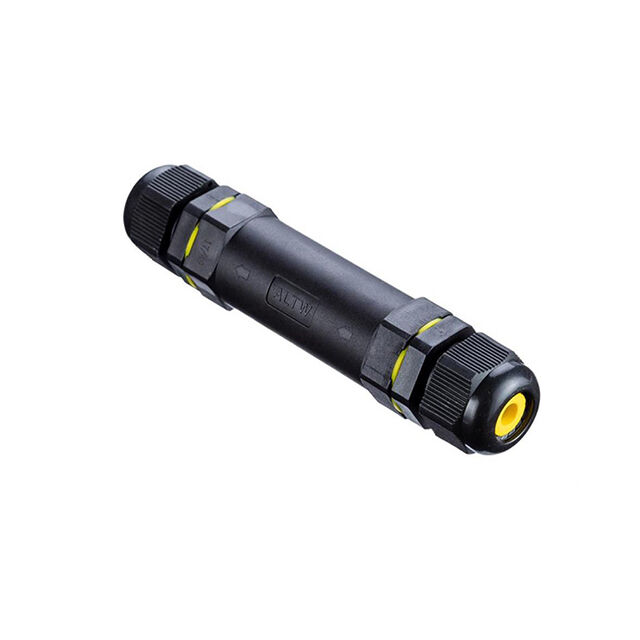

McGill Microwave Systems SC-L-UL13-04-AA	Cable	4.5 mm	11.5 mm	4 Pole Dust Tight Waterproof	6 Glass Filled Nylon 6 Polyamide (PA66)	Cable Joiner

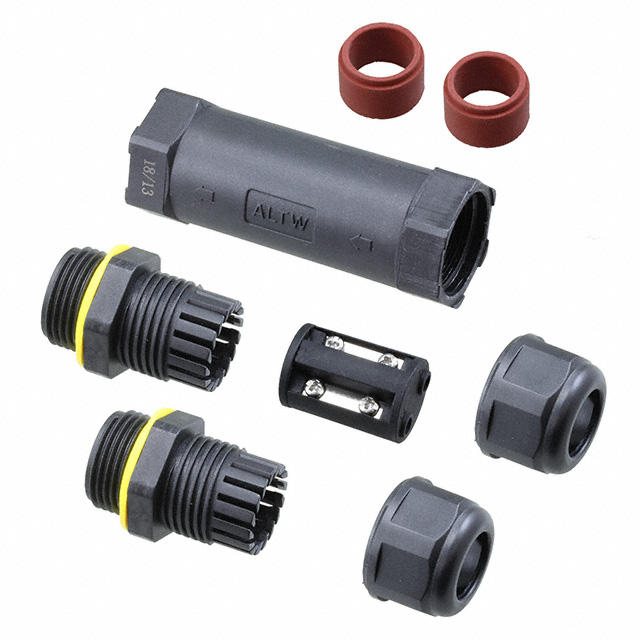

McGill Microwave Systems SC-L-UL13-03-RD	Cable	10.5 mm	12.5 mm	3 Pole Dust Tight Waterproof	6 Nylon 6 Polyamide (PA66)	Cable Joiner	Black Red

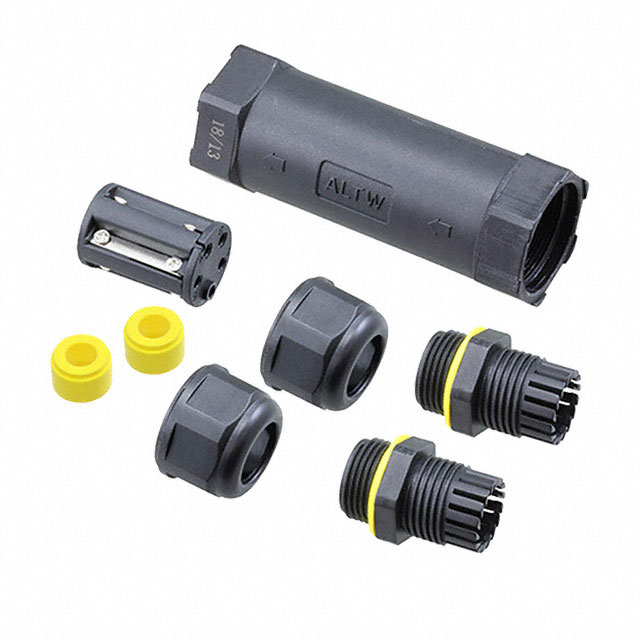

McGill Microwave Systems SC-L-UL13-05-YW	Cable	6.5 mm	8.5 mm	5 Pole Dust Tight Waterproof	6 Nylon 6 Polyamide (PA66)	Cable Joiner	Black Yellow

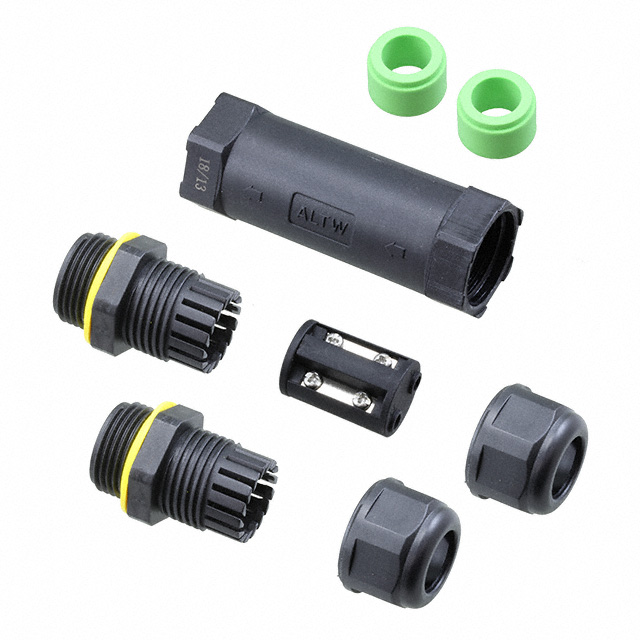

McGill Microwave Systems SC-L-UL13-02-GN	Cable	8.5 mm	10.5 mm	2 Pole Dust Tight Waterproof	6 Nylon 6 Polyamide (PA66)	Cable Joiner	Black Green

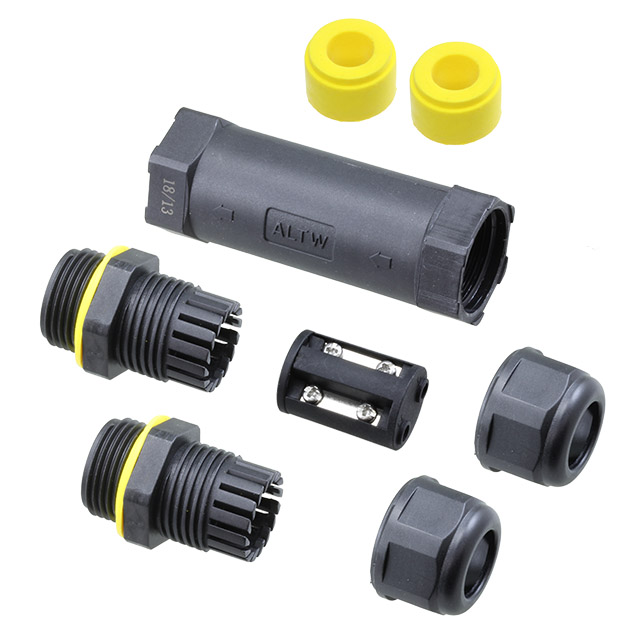

McGill Microwave Systems SC-L-UL13-03-YW	Cable	6.5 mm	8.5 mm	3 Pole Dust Tight Waterproof	6 Nylon 6 Polyamide (PA66)	Cable Joiner	Black Yellow

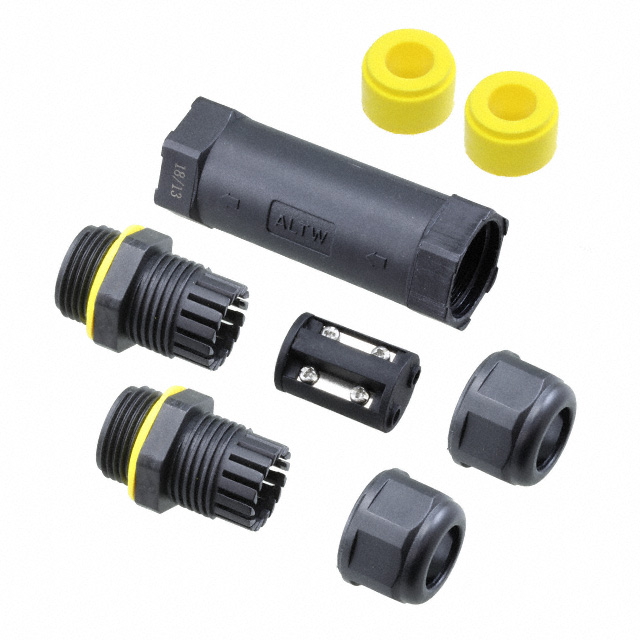

McGill Microwave Systems SC-L-UL13-04-YW	Cable	6.5 mm	8.5 mm	4 Pole Dust Tight Waterproof	6 Nylon 6 Polyamide (PA66)	Cable Joiner	Black Yellow

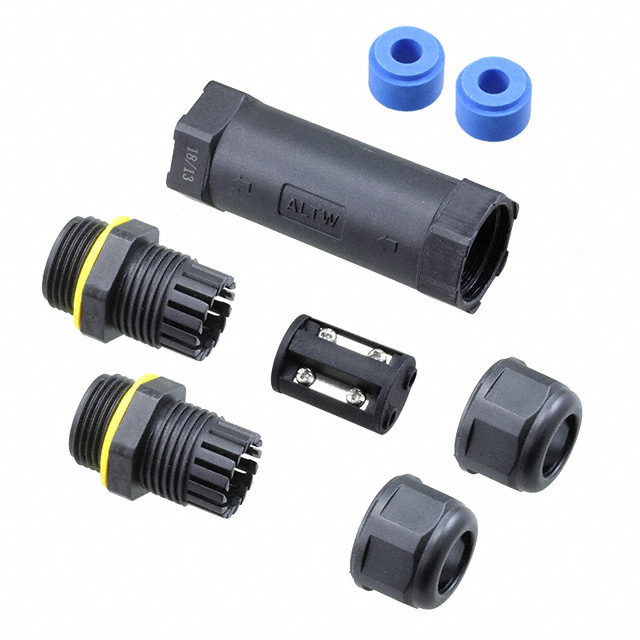

McGill Microwave Systems SC-L-UL13-03-BL	Cable	4.5 mm	6.5 mm	3 Pole Dust Tight Waterproof	6 Nylon 6 Polyamide (PA66)	Cable Joiner	Black Blue

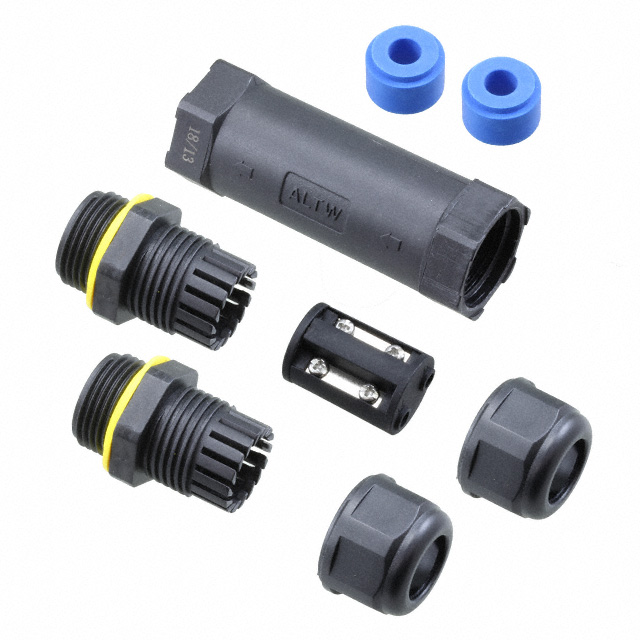

McGill Microwave Systems SC-L-UL13-04-BL	Cable	4.5 mm	6.5 mm	4 Pole Dust Tight Waterproof	6 Nylon 6 Polyamide (PA66)	Cable Joiner	Black Blue
