Specification	1-1747145-7

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	8 µin
Contact Length - Post	0.15 in
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Tab
Current Rating	20 A
Fastening Type	Detent Lock
Features	Board Guide, Board Lock
Insulation Color	Black
Insulation Height	0.63 in
Insulation Material	Polyester, Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.2 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	250 V

Dynamic DZ 5200 Series Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Features	Connector Type	Contact Type	Termination	Insulation Color	Contact Finish - Post	Contact Length - Post	Voltage Rating	Number of Positions	Contact Finish Thickness - Mating	Fastening Type	Mounting Type	Contact Shape	Style	Contact Finish - Mating	Contact Material	Current Rating	Insulation Material	Number of Positions Loaded	Material Flammability Rating	Shrouding	Number of Rows	Insulation Height	Pitch - Mating	Applications	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 5-1747145-3	-55 °C	105 °C	Board Guide Board Lock	Header	Tab	Solder	Black	Tin	0.15 in	600 V	3	8 µin	Detent Lock	Right Angle Through Hole	Rectangular	Board Cable/Wire	Gold	Copper Alloy	30 A	Glass Filled Polyester Thermoplastic	All	UL94 V-0	Shrouded - 4 Wall	1	0.63 in	0.4 in	General Purpose Industrial	78.7 µin
TE Connectivity AMP Connectors 5-1747147-4	-55 °C	105 °C	Board Guide Board Lock	Receptacle	Female Blade Socket	Solder	Black	Tin	0.15 in	600 V	4	8 µin	Push-Pull	Through Hole	Rectangular	Board	Gold	Phosphor Bronze	30 A	Glass Filled Polyester	All	UL94 V-0		1	0.551 in	0.4 in		78.7 µin
TE Connectivity AMP Connectors 5-1747145-4	-55 °C	105 °C	Board Guide Board Lock	Header	Tab	Solder	Black	Tin	0.15 in	600 V	4	8 µin	Detent Lock	Right Angle Through Hole	Rectangular	Board Cable/Wire	Gold	Copper Alloy	30 A	Glass Filled Polyester Thermoplastic	All	UL94 V-0	Shrouded - 4 Wall	1	0.63 in	0.4 in	General Purpose Industrial	78.7 µin
TE Connectivity AMP Connectors 1-1747147-5	-55 °C	105 °C	Board Guide Board Lock	Receptacle	Female Blade Socket	Solder	Black	Tin	0.15 in	250 V	5	8 µin	Push-Pull	Through Hole		Board	Gold		20 A		All	UL94 V-0		1	0.551 in	0.2 in

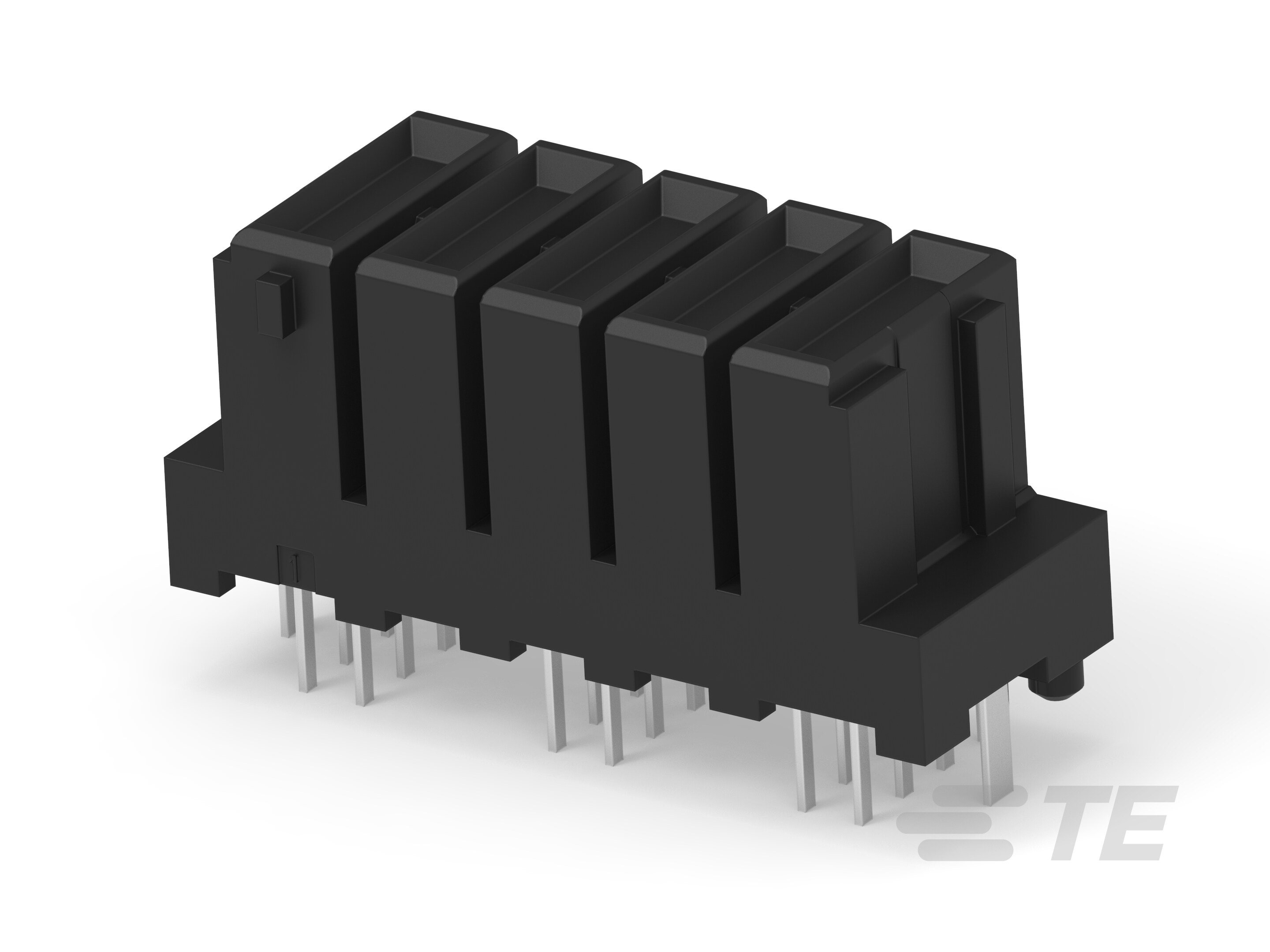

TE Connectivity AMP Connectors 5-1747147-3	-55 °C	105 °C	Board Guide Board Lock	Receptacle	Female Blade Socket	Solder	Black	Tin	0.15 in	600 V	3	8 µin	Push-Pull	Through Hole	Rectangular	Board	Gold	Phosphor Bronze	30 A	Glass Filled Polyester	All	UL94 V-0		1	0.551 in	0.4 in		78.7 µin
TE Connectivity AMP Connectors 1-1747145-5	-55 °C	105 °C	Board Guide Board Lock	Header	Tab	Solder	Black	Tin	0.15 in	250 V	5	8 µin	Detent Lock	Right Angle Through Hole	Rectangular	Board Cable/Wire	Gold	Copper Alloy	20 A	Glass Filled Polyester Thermoplastic	All	UL94 V-0	Shrouded - 4 Wall	1	0.63 in	0.2 in
TE Connectivity AMP Connectors 1-1747147-7	-55 °C	105 °C	Board Guide Board Lock	Receptacle	Female Blade Socket	Solder	Black	Tin	0.15 in	250 V	7	8 µin	Push-Pull	Through Hole		Board	Gold		20 A		All	UL94 V-0		1	0.551 in	0.2 in
TE Connectivity AMP Connectors 1-1747145-7	-55 °C	105 °C	Board Guide Board Lock	Header	Tab	Solder	Black	Tin	0.15 in	250 V	7	8 µin	Detent Lock	Right Angle Through Hole	Rectangular	Board Cable/Wire	Gold	Copper Alloy	20 A	Glass Filled Polyester Thermoplastic	All	UL94 V-0	Shrouded - 4 Wall	1	0.63 in	0.2 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

1-1747145-7 | Datasheet

Datasheet

Dynamic Connector DZ5000 Series
