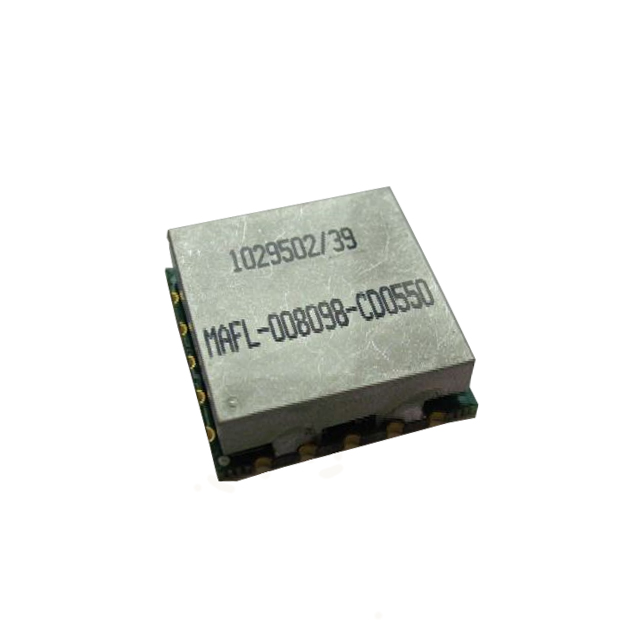

MAFL-008098-CD0550
ActiveMACOM Technology Solutions
RF FILTER BAL 23.5/557MHZ 20SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAFL-008098-CD0550
ActiveMACOM Technology Solutions
RF FILTER BAL 23.5/557MHZ 20SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MAFL-008098-CD0550 |
|---|---|
| Bandwidth | 37 MHz, 1.046 GHz |
| Filter Type | Balance |
| Frequency | 23.5 MHz, 557 MHz |
| Height (Max) [Max] | 0.063 in |
| Height (Max) [Max] | 1.6 mm |
| Insertion Loss | 1.2 dB |
| Mounting Type | Surface Mount |
| Package / Case | 20-SMD, No Lead |
| Size / Dimension [x] | 1.102 in |
| Size / Dimension [x] | 28 mm |
| Size / Dimension [y] | 28 mm |
| Size / Dimension [y] | 1.102 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 14.38 | |
| 10 | $ 13.01 | |||
| 25 | $ 11.98 | |||
| Digi-Reel® | 1 | $ 14.38 | ||
| 10 | $ 13.01 | |||
| 25 | $ 11.98 | |||
| Tape & Reel (TR) | 50 | $ 11.98 | ||
| 100 | $ 10.96 | |||
| 250 | $ 10.27 | |||
| 500 | $ 9.59 | |||
Description
General part information
MAFL-008098 Series
23.5MHz, 557MHz Frequency Balance RF Filter (Radio Frequency) 37MHz, 1.046GHz Bandwidth 1.2dB 20-SMD, No Lead
