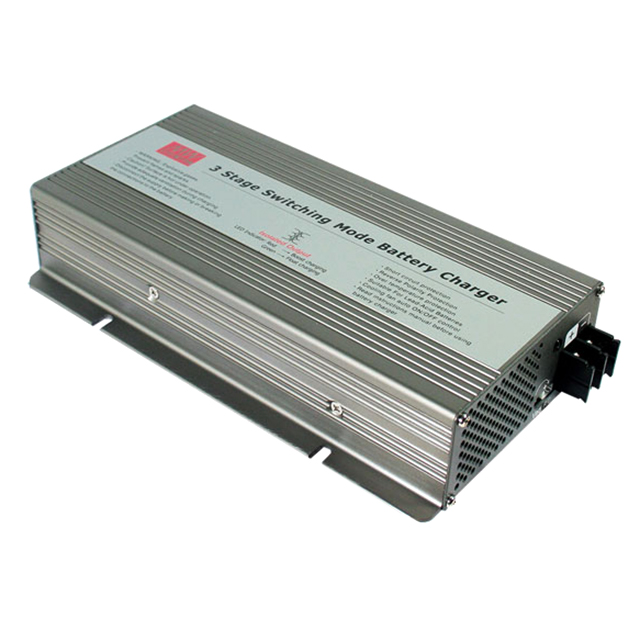

PB-300N-12
ObsoleteMEAN WELL USA Inc.
BATT CHRGR ENCLOSED 14.4V 20.85A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PB-300N-12
ObsoleteMEAN WELL USA Inc.
BATT CHRGR ENCLOSED 14.4V 20.85A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PB-300N-12 |
|---|---|
| Approval Agency | CB, cURus |
| Battery Cell Size | 12 V |
| Battery Chemistry | Lithium-Ion, Lead Acid |
| Charge Current - Max [Max] | 20.85 A |
| Features | LED Indicator |
| Mounting Type | Chassis Mount |
| Number of Cells | 1 |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Power - Max [Max] | 300 W |
| Size / Dimension [x] | 9.96 " |
| Size / Dimension [x] | 253 mm |
| Size / Dimension [y] | 135 mm |
| Size / Dimension [y] | 5.31 in |
| Size / Dimension [z] | 1.91 in |
| Size / Dimension [z] | 48.5 mm |
| Termination Style | Screw Terminal |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC, 132 VAC |
| Voltage - Input [Min] | 180 VAC, 90 VAC |
| Voltage - Nominal | 14.4 V |
| Weight | 1450 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 107.23 | |
Description
General part information
PB-300 Series
Enclosed Battery Charger 14.4V 20.85A 12V
