DW-02-16-T-S-236

Active

Samtec Inc.

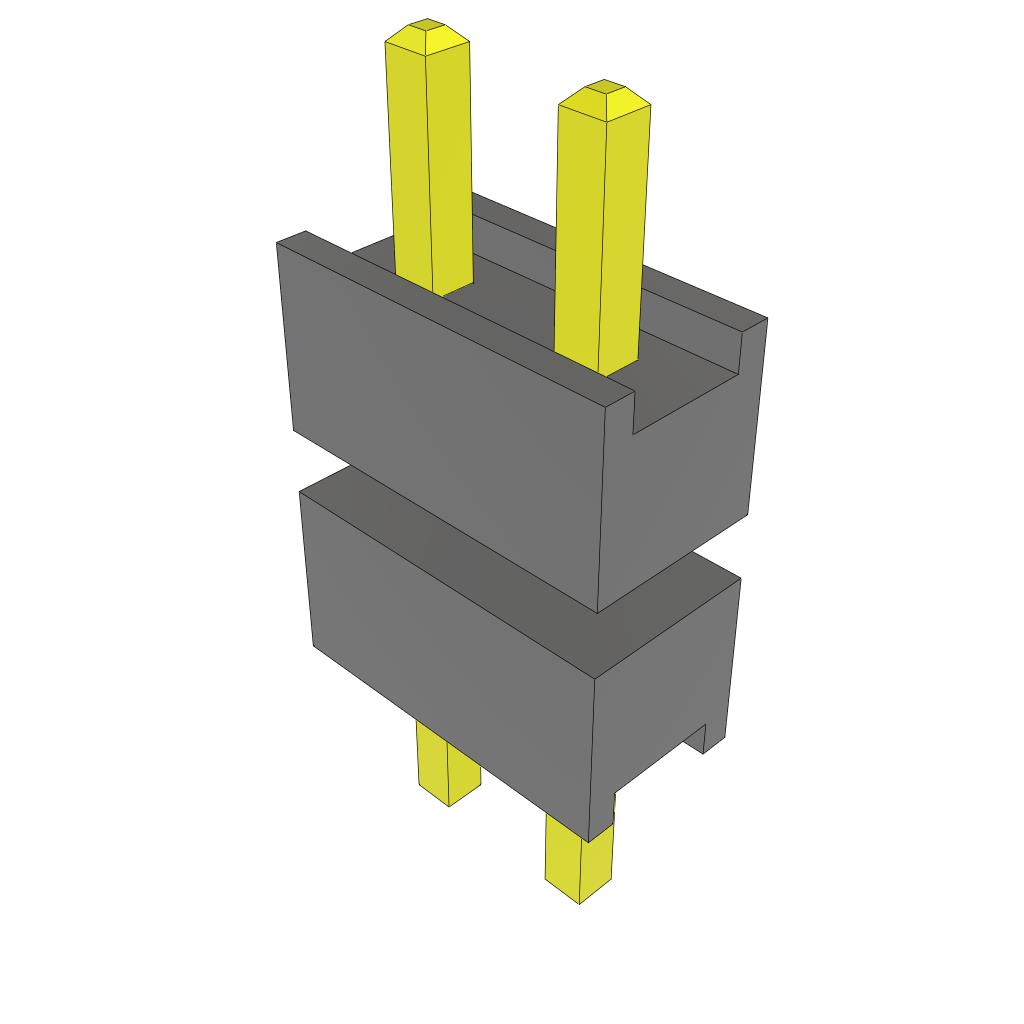

CONN HDR 2POS 0.1 STACK T/H TIN

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 2POS 0.1 STACK T/H TIN

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish - Post (Mating)	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Pitch [x]	Pitch [x]	Length - Tail [x]	Length - Tail [x]	Termination	Number of Positions	Color	Number of Rows	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Mounting Type	Length - Stack Height [x]	Length - Stack Height [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Row Spacing [x]	Row Spacing
Samtec Inc. DW-02-16-L-S-300	Gold	0.25 Ám	10 Áin	2.54 mm	0.1 in	0.11 in	2.794 mm	Solder	2	Black	1	0.889 mm	0.035 in	Through Hole	0.3 in	7.62 mm	11.303 mm	0.445 in
Samtec Inc. DW-02-16-G-S-200	Gold	0.25 Ám	10 Áin	2.54 mm	0.1 in	0.11 in	2.794 mm	Solder	2	Black	1	3.429 mm	0.135 in	Through Hole			11.303 mm	0.445 in
Samtec Inc. DW-02-16-T-S-236	Tin			2.54 mm	0.1 in	0.11 in	2.794 mm	Solder	2	Black	1	2.515 mm	0.099 in	Through Hole	0.236 in	5.994 mm	11.303 mm	0.445 in
Samtec Inc. DW-02-16-T-S-200	Tin			2.54 mm	0.1 in	0.11 in	2.794 mm	Solder	2	Black	1	3.429 mm	0.135 in	Through Hole			11.303 mm	0.445 in
Samtec Inc. DW-02-16-F-D-300	Gold	0.076 Ám	3 Áin	2.54 mm	0.1 in	0.11 in	2.794 mm	Solder	4	Black	2	0.889 mm	0.035 in	Through Hole	0.3 in	7.62 mm	11.303 mm	0.445 in	0.1 in	2.54 mm
Samtec Inc. DW-02-16-F-S-200	Gold	0.076 Ám	3 Áin	2.54 mm	0.1 in	0.11 in	2.794 mm	Solder	2	Black	1	3.429 mm	0.135 in	Through Hole			11.303 mm	0.445 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.30

General part information

2 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
