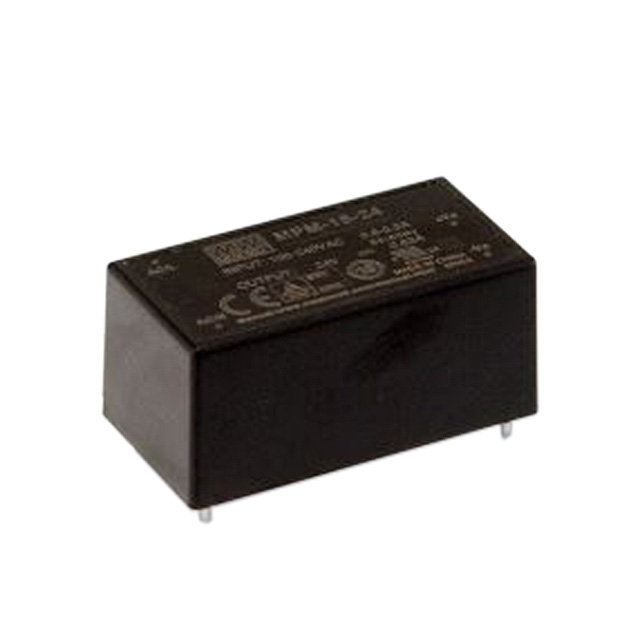

MPM-15-5

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 15W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	MPM-15-5

Applications	Household Appliances, Medical
Approval Agency	TUV, cURus, EAC, CE, CB
Current - Output (Max) [Max]	3 A
Efficiency	85.5 %
Features	Universal Input
Line Regulation	0.5 %
Load Regulation	0.5 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	4-DIP Module
Power (Watts)	15 W
Size / Dimension [x]	52.4 mm
Size / Dimension [x]	2.06 in
Size / Dimension [y]	27.2 mm
Size / Dimension [y]	1.07 in
Size / Dimension [z]	24 mm
Size / Dimension [z]	0.94 in
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Output 1	5 V

Part	Package / Case	Features	Voltage - Output 1	Efficiency	Current - Output (Max) [Max]	Approval Agency	Line Regulation	Mounting Type	Applications	Power (Watts)	Number of Outputs	Load Regulation	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Type	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]
MEAN WELL USA Inc. MPM-15-5	4-DIP Module	Universal Input	5 V	85.5 %	3 A	CB CE cURus EAC TUV	0.5 %	Through Hole	Household Appliances Medical	15 W	1	0.5 %	27.2 mm	1.07 in	52.4 mm	24 mm	2.06 in	0.94 in	Enclosed	264 VAC	80 VAC	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 5V 3A 80 ~ 264 VAC Input
