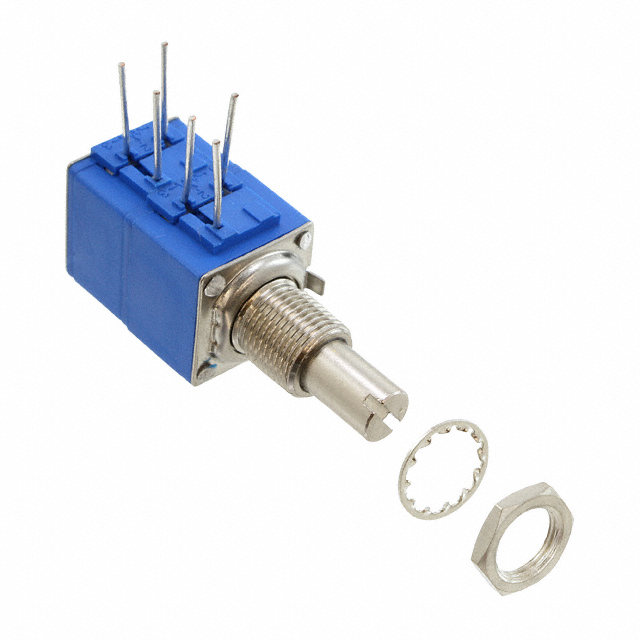

81A2A-B24-D15/D15L

Active

Bourns Inc.

PANEL CONTROL - 5/8" (16MM) ST-CP /TRAY PACKAGING ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Bourns Inc.

PANEL CONTROL - 5/8" (16MM) ST-CP /TRAY PACKAGING ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Adjustment Type	Rotation	Actuator Type	Bushing Thread	Number of Turns	Number of Gangs	Built in Switch	Actuator Diameter	Actuator Diameter [diameter]	Power (Watts)	Power (Watts)	Tolerance	Taper	Resistive Material	Resistance (Ohms)	Actuator Length [z]	Actuator Length [z]	Termination Style	Size - Body [x]	Size - Body [y]	Size - Body [x]	Size - Body [y]	Temperature Coefficient
Bourns Inc. 81A2A-B24-D15/D15L	Side Adjustment	300 ░	Slotted	3/8-32	1	2		6.35 mm	0.25 in	0.25 W	250 mW	20 %	Logarithmic	Conductive Plastic	10k	19.05 mm	0.75 in	PC Pins	0.625 in	15.88 mm	15.88 mm	0.625 in	1000 ppm/°C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	270	$ 17.67
Newark	Each	250	$ 17.02
		500	$ 15.81

General part information

10k Ohm 2 Gang Logarithmic Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.25W, 1/4W PC Pins
