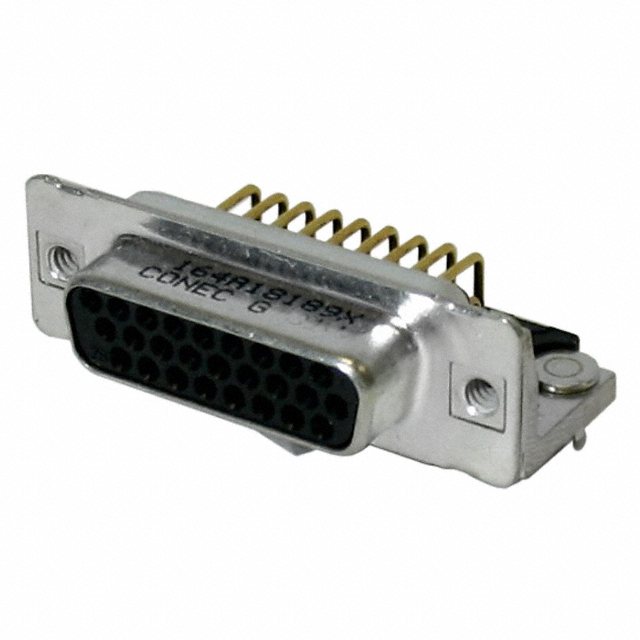

164A18189X
ActiveAmphenol CONEC
CONN D-SUB HD RCPT 26P R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
164A18189X
ActiveAmphenol CONEC
CONN D-SUB HD RCPT 26P R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 164A18189X |
|---|---|
| Backset Spacing | 0.314 in |
| Backset Spacing | 7.98 mm |
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 2 |
| Shell Size, Connector Layout | (DA, A) High Density |
| Termination | Solder |
| Voltage Rating | 60 VDC |
164A181 Series
| Part | Material Flammability Rating | Backset Spacing | Backset Spacing | Color | Number of Positions | Contact Type | Connector Type | Connector Style | Number of Rows | Termination | Mounting Type | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Material | Shell Size, Connector Layout | Shell Size, Connector Layout | Dielectric Material | Current Rating (Amps) | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol CONEC | UL94 V-0 | 0.314 in | 7.98 mm | Black | 26 | Signal | Receptacle Female Sockets | D-Sub High Density | 3 | Solder | Through Hole Right Angle | M3 | -55 °C | 125 °C | 60 VDC | Copper Alloy | 2 | (DA A) High Density | Polybutylene Terephthalate (PBT) Glass Filled | 3 A | Gold | ||||||||
Amphenol CONEC | UL94 V-0 | 0.314 in | 7.98 mm | Black | 26 | Signal | Receptacle Female Sockets | D-Sub High Density | 3 | Solder | Board Edge Right Angle Through Hole | Housing/Shell (4-40) | -55 °C | 125 °C | 60 VDC | Copper Alloy | 2 | (DA A) High Density | Polybutylene Terephthalate (PBT) Glass Filled | 3 A | Gold | 8 çin | 0.203 çm | ||||||
Amphenol CONEC | UL94 V-0 | 0.314 in | 7.98 mm | Black | 44 | Signal | Receptacle Female Sockets | D-Sub High Density | 3 | Solder | Through Hole Right Angle | M3 | -55 °C | 125 °C | 60 VDC | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | 3 A | Gold | 3 | B DB | ||||||||
Amphenol CONEC | UL94 V-0 | 0.314 in | 7.98 mm | Black | 15 | Signal | Receptacle Female Sockets | D-Sub High Density | 3 | Solder | Through Hole Right Angle | M3 | -55 °C | 125 °C | 60 VDC | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | 3 A | Gold | DE E | 1 | High Density | |||||||
Amphenol CONEC | UL94 V-0 | 0.314 in | 7.98 mm | Black | 62 | Signal | Receptacle Female Sockets | D-Sub High Density | 3 | Solder | Through Hole Right Angle | M3 | -55 °C | 125 °C | 60 VDC | Copper Alloy | 4 | Polybutylene Terephthalate (PBT) Glass Filled | 3 A | Gold | |||||||||
Amphenol CONEC | UL94 V-0 | 0.314 in | 7.98 mm | Black | 62 | Signal | Receptacle Female Sockets | D-Sub High Density | 3 | Solder | Board Edge Right Angle Through Hole | 4-40 | -55 °C | 125 °C | 60 VDC | Copper Alloy | 4 | Polybutylene Terephthalate (PBT) Glass Filled | 3 A | Gold | Flash | Mounting Brackets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.39 | |
| 30 | $ 17.08 | |||
| 120 | $ 15.98 | |||
Description
General part information
164A181 Series
26 Position D-Sub, High Density Receptacle, Female Sockets Connector
