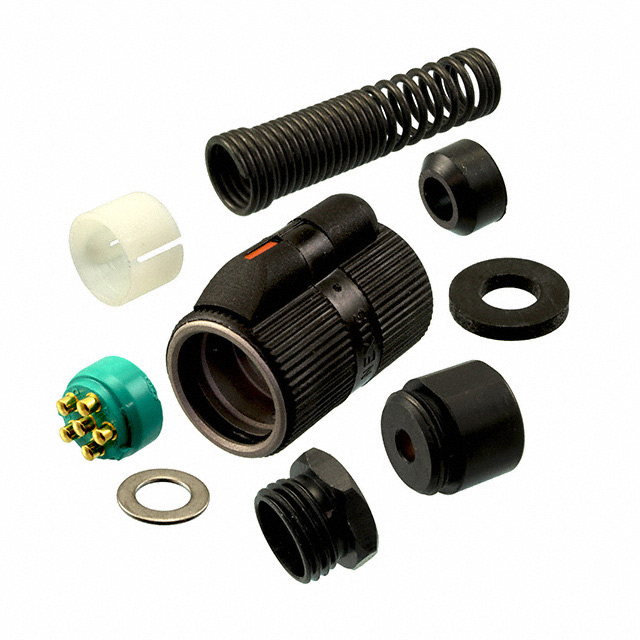

Specification	AP-145/3-1

Applications	Video, Military, Audio
Backshell Material	Aluminum
Cable Opening	0.165 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating	0.5 A
Fastening Type	Bayonet Lock
Insert Material	Diallyl Phthalate, DAP
Mounting Type	Free Hanging (In-Line)
Number of Positions	5
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Plating	Anodized
Primary Material	Plastic
Qualification	MIL-DTL-55116
Shell Material	Polyamide (PA), Nylon, Stainless Steel, Glass Filled
Termination	Solder Cup
Voltage Rating	60 V

AP-145 Series

Part	Shell Material	Applications	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Qualification	Current Rating	Contact Material	Contact Finish - Mating	Voltage Rating	Plating	Backshell Material	Primary Material	Mounting Type	Color	Fastening Type	Cable Opening	Orientation	Insert Material	Termination	Shell Finish	Shielding	Features
McGill Microwave Systems AP-145/3-1	Glass Filled Nylon Polyamide (PA) Stainless Steel	Audio Military Video	5	-55 °C	85 °C	Female Sockets Plug	MIL-DTL-55116	0.5 A	Brass	Gold	60 V	Anodized	Aluminum	Plastic	Free Hanging (In-Line)	Black	Bayonet Lock	0.165 in	Keyed	DAP Diallyl Phthalate	Solder Cup
McGill Microwave Systems AP-145SD/5	Stainless Steel	Audio Communication Systems Military Video	5	-55 °C	85 °C	Female Sockets Plug		0.5 A	Brass	Gold	60 V			Metal	Free Hanging (In-Line)	Black	Bayonet Lock	0.325 in	Keyed	Thermoplastic	Solder Cup	Passivated	Unshielded	Backshell Coupling Nut Strain Relief
