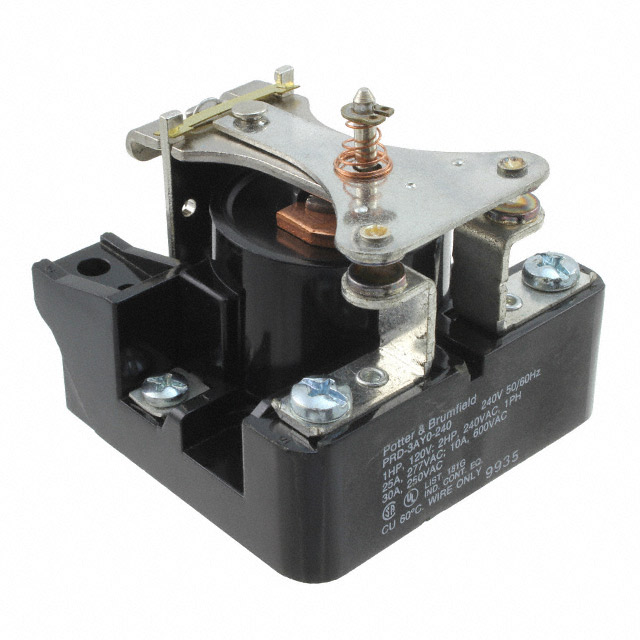

PRD-3AY0-240
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 25A 240V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PRD-3AY0-240 |
|---|---|
| Approval Agency | CSA, UL |
| Coil Current | 43 mA |
| Coil Insulation | Class B |
| Coil Resistance | 1.2 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 240 VAC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Contact Material | Silver (Ag) |
| Contact Rating (Current) | 25 A |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 204 VAC |
| Must Release Voltage | 24 VAC |
| Operate Time | 40 ms |
| Operating Temperature [Max] | 45 °C |
| Operating Temperature [Min] | -55 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage | 125 VDC, 600 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PRD-3AY0 Series
General Purpose Relay SPST-NO (DM) (1 Form X) 240VAC Coil Chassis Mount
