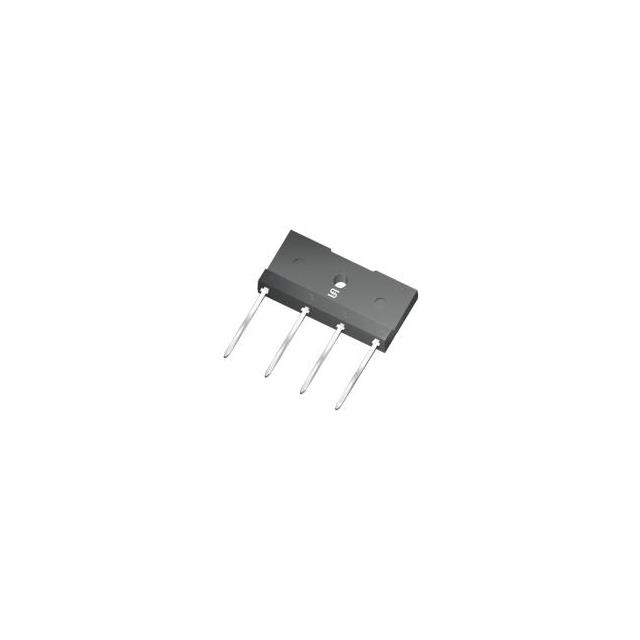

T15JA06G-K
ActiveTaiwan Semiconductor Corporation
BRIDGE RECTIFIERS 15A, 800V, STANDARD BRIDGE RECTIFIER
T15JA06G-K
ActiveTaiwan Semiconductor Corporation
BRIDGE RECTIFIERS 15A, 800V, STANDARD BRIDGE RECTIFIER
Description
General part information
T15JA Series
Bridge Rectifier Single Phase Standard 800 V Through Hole TS-6P
Technical Specifications
Parameters and characteristics for this part
| Specification | T15JA06G-K |
|---|---|
| Current - Average Rectified (Io) | 15 A |
| Current - Reverse Leakage | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | TS-6P, 4-SIP |
| Package Name | TS-6P |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) | 1.1 V |
| Voltage - Peak Reverse (Max) | 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
DECLARATION_LETTER_-_PRODUCT_SHELF_LIFE_REVB
AN-1006 Power Diode Parameters and Characteristic Introduction
Whisker - TS-6PL REV:A
T15JA05G-K SERIES - Datasheet
T15JA05G-K Series - FIT MTTF Report
TS-6PL - Packing Information
T15JA06G-K - Material Composition Declaration
T15JA05G-K Series - Reliability Report
T15JA06G-K | Datasheet
