5-1375549-3

Active

TE Connectivity AMP Connectors

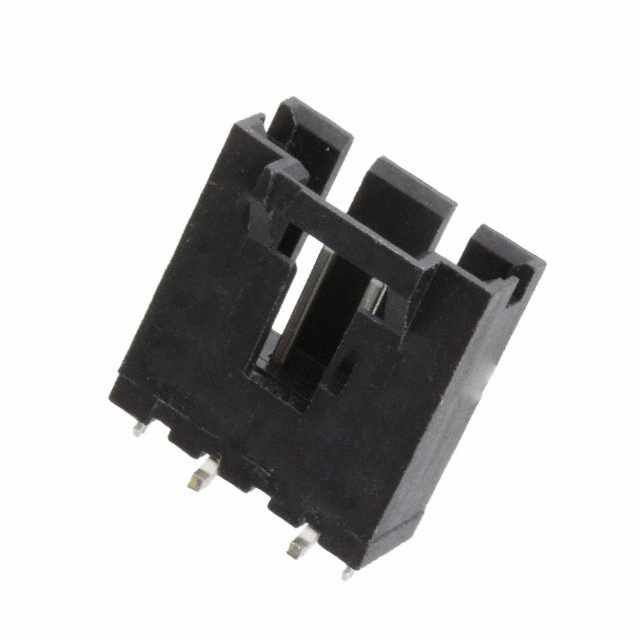

CONN HEADER SMD 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5-1375549-3

Active

TE Connectivity AMP Connectors

CONN HEADER SMD 4POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.39
		10	$ 3.02
		100	$ 2.68
		500	$ 2.46
	Tape & Reel (TR)	1200	$ 1.81
		3600	$ 1.68
		6000	$ 1.60

Description

General part information

1375549 Series

Connector Header Surface Mount 4 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Specification	5-1375549-3	1375549 Series

Applications	Medical, General Purpose, Automotive, Telecommunications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header	Header
Contact Finish - Mating	-	Tin-Lead
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	2.54 çm	2.54 çm
Contact Finish Thickness - Mating	100 çin	100 çin
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	5.84 mm	5.84 mm
Contact Length - Mating [x]	0.23 in	0.23 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Latch Holder	Latch Holder
Features	Board Lock, Keying Slot	Board Lock, Keying Slot
Insulation Color	Black	Black
Insulation Height	13.6 mm	13.6 mm
Insulation Height	0.535 in	0.535 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	4	4 - 23
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

Part

Contact Length - Mating [x]

Contact Length - Mating

Contact Material

Number of Positions Loaded

Insulation Height

Applications

Features

Insulation Material

Termination

Number of Rows

Shrouding

Fastening Type

Contact Finish Thickness - Post

Style

Operating Temperature [Min]

Operating Temperature [Max]

Contact Finish Thickness - Mating

Contact Shape

Material Flammability Rating

Current Rating (Amps)

Mounting Type

Pitch - Mating

Insulation Color

Contact Type

Connector Type

Contact Finish - Post

Number of Positions

Contact Finish - Mating

Number of Positions

TE Connectivity AMP Connectors

5-1375549-4

0.23 in

5.84 mm

Brass

All

13.6 mm

0.535 in

Automotive, General Purpose, Medical, Telecommunications

Board Lock, Keying Slot

Thermoplastic

Solder

Shrouded - 4 Wall

Latch Holder

2.54 µm

100 µin

Board to Board, Cable

-65 ░C

105 ░C

2.54 çm

100 çin

Square

UL94 V-0

3 A

Surface Mount

0.1 in

2.54 mm

Black

Male Pin

Header

Tin

TE Connectivity AMP Connectors

6-1375549-6

0.23 in

5.84 mm

Brass

All

13.6 mm

0.535 in

Automotive, General Purpose, Medical, Telecommunications

Board Lock, Keying Slot

Thermoplastic

Solder

Shrouded - 4 Wall

Latch Holder

2.54 µm

100 µin

Board to Board, Cable

-65 ░C

105 ░C

2.54 çm

100 çin

Square

UL94 V-0

3 A

Surface Mount

0.1 in

2.54 mm

Black

Male Pin

Header

Tin

TE Connectivity AMP Connectors

5-1375549-5

0.23 in

5.84 mm

Brass

All

13.6 mm

0.535 in

Automotive, General Purpose, Medical, Telecommunications

Board Lock, Keying Slot

Thermoplastic

Solder

Shrouded - 4 Wall

Latch Holder

2.54 µm

100 µin

Board to Board, Cable

-65 ░C

105 ░C

2.54 çm

100 çin

Square

UL94 V-0

3 A

Surface Mount

0.1 in

2.54 mm

Black

Male Pin

Header

Tin

TE Connectivity AMP Connectors

2-1375549-0

0.23 in

5.84 mm

Brass

All

13.6 mm

0.535 in

Automotive, General Purpose, Medical, Telecommunications

Board Lock, Keying Slot

Thermoplastic

Solder

Shrouded - 4 Wall

Latch Holder

2.54 µm

100 µin

Board to Board, Cable

-65 ░C

105 ░C

2.54 çm

100 çin

Square

UL94 V-0

3 A

Surface Mount

0.1 in

2.54 mm

Black

Male Pin

Header

Tin-Lead

TE Connectivity AMP Connectors

6-1375549-1

0.23 in

5.84 mm

Brass

All

13.6 mm

0.535 in

Automotive, General Purpose, Medical, Telecommunications

Board Lock, Keying Slot

Thermoplastic

Solder

Shrouded - 4 Wall

Latch Holder

2.54 µm

100 µin

Board to Board, Cable

-65 ░C

105 ░C

2.54 çm

100 çin

Square

UL94 V-0

3 A

Surface Mount

0.1 in

2.54 mm

Black

Male Pin

Header

Tin

TE Connectivity AMP Connectors

5-1375549-2

0.23 in

5.84 mm

Brass

All

13.6 mm

0.535 in

Automotive, General Purpose, Medical, Telecommunications

Board Lock, Keying Slot

Thermoplastic

Solder

Shrouded - 4 Wall

Latch Holder

2.54 µm

100 µin

Board to Board, Cable

-65 ░C

105 ░C

2.54 çm

100 çin

Square

UL94 V-0

3 A

Surface Mount

0.1 in

2.54 mm

Black

Male Pin

Header

Tin

TE Connectivity AMP Connectors

5-1375549-3

0.23 in

5.84 mm

Brass

All

13.6 mm

0.535 in

Automotive, General Purpose, Medical, Telecommunications

Board Lock, Keying Slot

Thermoplastic

Solder

Shrouded - 4 Wall

Latch Holder

2.54 µm

100 µin

Board to Board, Cable

-65 ░C

105 ░C

2.54 çm

100 çin

Square

UL94 V-0

3 A

Surface Mount

0.1 in

2.54 mm

Black

Male Pin

Header

Tin

TE Connectivity AMP Connectors

1-1375549-9

0.23 in

5.84 mm

Brass

All

13.6 mm

0.535 in

Automotive, General Purpose, Medical, Telecommunications

Board Lock, Keying Slot

Thermoplastic

Solder

Shrouded - 4 Wall

Latch Holder

2.54 µm

100 µin

Board to Board, Cable

-65 ░C

105 ░C

2.54 çm

100 çin

Square

UL94 V-0

3 A

Surface Mount

0.1 in

2.54 mm

Black

Male Pin

Header

Tin-Lead

TE Connectivity AMP Connectors

6-1375549-9

0.23 in

5.84 mm

Brass

All

13.6 mm

0.535 in

Automotive, General Purpose, Medical, Telecommunications

Board Lock, Keying Slot

Thermoplastic

Solder

Shrouded - 4 Wall

Latch Holder

2.54 µm

100 µin

Board to Board, Cable

-65 ░C

105 ░C

2.54 çm

100 çin

Square

UL94 V-0

3 A

Surface Mount

0.1 in

2.54 mm

Black

Male Pin

Header

Tin

TE Connectivity AMP Connectors

7-1375549-2

0.23 in

5.84 mm

Brass

All

13.6 mm

0.535 in

Automotive, General Purpose, Medical, Telecommunications

Board Lock, Keying Slot

Thermoplastic

Solder

Shrouded - 4 Wall

Latch Holder

2.54 µm

100 µin

Board to Board, Cable

-65 ░C

105 ░C

2.54 çm

100 çin

Square

UL94 V-0

3 A

Surface Mount

0.1 in

2.54 mm

Black

Male Pin

Header

Tin

Part	Contact Length - Mating [x]	Contact Length - Mating	Contact Material	Number of Positions Loaded	Insulation Height	Insulation Height	Applications	Features	Insulation Material	Termination	Number of Rows	Shrouding	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Material Flammability Rating	Current Rating (Amps)	Mounting Type	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Type	Connector Type	Contact Finish - Post	Number of Positions	Contact Finish - Mating
TE Connectivity AMP Connectors 5-1375549-4	0.23 in	5.84 mm	Brass	All	13.6 mm	0.535 in	Automotive, General Purpose, Medical, Telecommunications	Board Lock, Keying Slot	Thermoplastic	Solder	1	Shrouded - 4 Wall	Latch Holder	2.54 µm	100 µin	Board to Board, Cable	-65 ░C	105 ░C	2.54 çm	100 çin	Square	UL94 V-0	3 A	Surface Mount	0.1 in	2.54 mm	Black	Male Pin	Header	Tin
TE Connectivity AMP Connectors 6-1375549-6	0.23 in	5.84 mm	Brass	All	13.6 mm	0.535 in	Automotive, General Purpose, Medical, Telecommunications	Board Lock, Keying Slot	Thermoplastic	Solder	1	Shrouded - 4 Wall	Latch Holder	2.54 µm	100 µin	Board to Board, Cable	-65 ░C	105 ░C	2.54 çm	100 çin	Square	UL94 V-0	3 A	Surface Mount	0.1 in	2.54 mm	Black	Male Pin	Header	Tin
TE Connectivity AMP Connectors 5-1375549-5	0.23 in	5.84 mm	Brass	All	13.6 mm	0.535 in	Automotive, General Purpose, Medical, Telecommunications	Board Lock, Keying Slot	Thermoplastic	Solder	1	Shrouded - 4 Wall	Latch Holder	2.54 µm	100 µin	Board to Board, Cable	-65 ░C	105 ░C	2.54 çm	100 çin	Square	UL94 V-0	3 A	Surface Mount	0.1 in	2.54 mm	Black	Male Pin	Header	Tin	6
TE Connectivity AMP Connectors 2-1375549-0	0.23 in	5.84 mm	Brass	All	13.6 mm	0.535 in	Automotive, General Purpose, Medical, Telecommunications	Board Lock, Keying Slot	Thermoplastic	Solder	1	Shrouded - 4 Wall	Latch Holder	2.54 µm	100 µin	Board to Board, Cable	-65 ░C	105 ░C	2.54 çm	100 çin	Square	UL94 V-0	3 A	Surface Mount	0.1 in	2.54 mm	Black	Male Pin	Header	Tin-Lead	21	Tin-Lead
TE Connectivity AMP Connectors 6-1375549-1	0.23 in	5.84 mm	Brass	All	13.6 mm	0.535 in	Automotive, General Purpose, Medical, Telecommunications	Board Lock, Keying Slot	Thermoplastic	Solder	1	Shrouded - 4 Wall	Latch Holder	2.54 µm	100 µin	Board to Board, Cable	-65 ░C	105 ░C	2.54 çm	100 çin	Square	UL94 V-0	3 A	Surface Mount	0.1 in	2.54 mm	Black	Male Pin	Header	Tin	12
TE Connectivity AMP Connectors 5-1375549-2	0.23 in	5.84 mm	Brass	All	13.6 mm	0.535 in	Automotive, General Purpose, Medical, Telecommunications	Board Lock, Keying Slot	Thermoplastic	Solder	1	Shrouded - 4 Wall	Latch Holder	2.54 µm	100 µin	Board to Board, Cable	-65 ░C	105 ░C	2.54 çm	100 çin	Square	UL94 V-0	3 A	Surface Mount	0.1 in	2.54 mm	Black	Male Pin	Header	Tin
TE Connectivity AMP Connectors 5-1375549-3	0.23 in	5.84 mm	Brass	All	13.6 mm	0.535 in	Automotive, General Purpose, Medical, Telecommunications	Board Lock, Keying Slot	Thermoplastic	Solder	1	Shrouded - 4 Wall	Latch Holder	2.54 µm	100 µin	Board to Board, Cable	-65 ░C	105 ░C	2.54 çm	100 çin	Square	UL94 V-0	3 A	Surface Mount	0.1 in	2.54 mm	Black	Male Pin	Header	Tin	4
TE Connectivity AMP Connectors 1-1375549-9	0.23 in	5.84 mm	Brass	All	13.6 mm	0.535 in	Automotive, General Purpose, Medical, Telecommunications	Board Lock, Keying Slot	Thermoplastic	Solder	1	Shrouded - 4 Wall	Latch Holder	2.54 µm	100 µin	Board to Board, Cable	-65 ░C	105 ░C	2.54 çm	100 çin	Square	UL94 V-0	3 A	Surface Mount	0.1 in	2.54 mm	Black	Male Pin	Header	Tin-Lead	20	Tin-Lead
TE Connectivity AMP Connectors 6-1375549-9	0.23 in	5.84 mm	Brass	All	13.6 mm	0.535 in	Automotive, General Purpose, Medical, Telecommunications	Board Lock, Keying Slot	Thermoplastic	Solder	1	Shrouded - 4 Wall	Latch Holder	2.54 µm	100 µin	Board to Board, Cable	-65 ░C	105 ░C	2.54 çm	100 çin	Square	UL94 V-0	3 A	Surface Mount	0.1 in	2.54 mm	Black	Male Pin	Header	Tin	20
TE Connectivity AMP Connectors 7-1375549-2	0.23 in	5.84 mm	Brass	All	13.6 mm	0.535 in	Automotive, General Purpose, Medical, Telecommunications	Board Lock, Keying Slot	Thermoplastic	Solder	1	Shrouded - 4 Wall	Latch Holder	2.54 µm	100 µin	Board to Board, Cable	-65 ░C	105 ░C	2.54 çm	100 çin	Square	UL94 V-0	3 A	Surface Mount	0.1 in	2.54 mm	Black	Male Pin	Header	Tin	23
