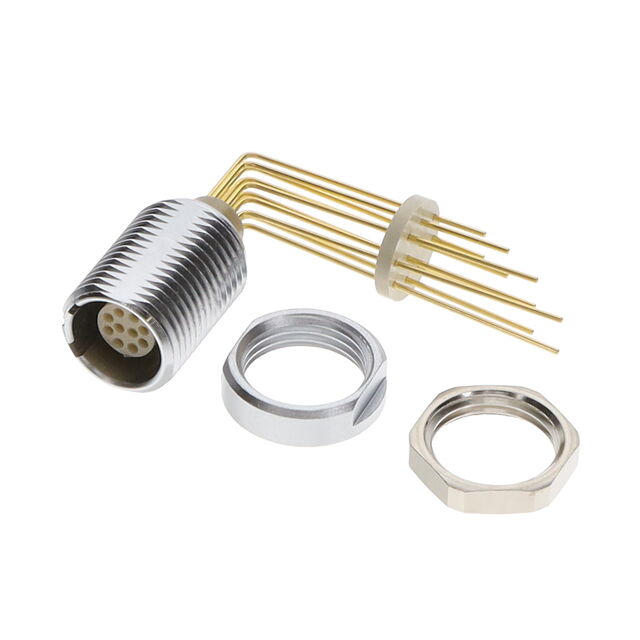

Specification	G51LFC-P10QC00-A000

Applications	Testing Equipment & Measurement, Medical, Military, Industrial
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating	4 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyetheretherketone, PEEK
Mounting Feature	Bulkhead, Front or Rear Side Nut
Mounting Type	Panel Mount, Through Hole
Number of Positions	10
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Orientation	F
Primary Material	Metal
Shell Finish	Chrome, Nickel
Shell Material	Brass
Shell Size - Insert	1
Shell Size - Insert	1
Shielding	Unshielded
Termination	Solder
Voltage Rating	333 V

G51LFC-P Series

Part	Contact Material	Shell Finish	Connector Type	Applications	Insert Material	Voltage Rating	Shell Size - Insert	Shell Size - Insert	Fastening Type	Mounting Type	Termination	Features	Shell Material	Mounting Feature	Primary Material	Ingress Protection Description	Ingress Protection IP Rating	Orientation	Number of Positions	Contact Finish - Mating	Shielding	Color	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)
ODU G51LFC-P10LCC0-0000	Brass	Chrome Nickel	Female Sockets Receptacle	Industrial Medical Military Testing Equipment & Measurement	PEEK Polyetheretherketone	333 V	1	1	Push-Pull	Panel Mount	Solder Cup	Ground	Brass	Bulkhead Front or Rear Side Nut	Metal	Dust Protected	IP50	F	10	Gold	Unshielded	Silver	4 A	120 °C	-40 °C
ODU G51LFC-P10QC00-0000	Brass	Chrome Nickel	Female Sockets Receptacle	Industrial Medical Military Testing Equipment & Measurement	PEEK Polyetheretherketone	333 V	1	1	Push-Pull	Panel Mount Through Hole	Solder	Ground	Brass	Bulkhead Front or Rear Side Nut	Metal	Dust Protected	IP50	F	10	Gold	Unshielded	Silver	4 A	120 °C	-40 °C
ODU G51LFC-P10QC00-A000	Brass	Chrome Nickel	Female Sockets Receptacle	Industrial Medical Military Testing Equipment & Measurement	PEEK Polyetheretherketone	333 V	1	1	Push-Pull	Panel Mount Through Hole	Solder	Ground	Brass	Bulkhead Front or Rear Side Nut	Metal	Dust Protected	IP50	F	10	Gold	Unshielded	Silver	4 A	120 °C	-40 °C
ODU G51LFC-P08NFG0-0000	Brass	Chrome Nickel	Female Sockets Receptacle	Industrial Medical Military Testing Equipment & Measurement	PEEK Polyetheretherketone	300 VAC/DC	1	1	Push-Pull	Panel Mount	Crimp	Ground	Brass	Bulkhead Front or Rear Side Nut	Metal	Dust Protected	IP50	F	8	Gold	Unshielded	Silver	7.5 A	120 °C	-40 °C
ODU G51LFC-P05QJ00-0000	Brass	Chrome Nickel	Female Sockets Receptacle	Industrial Medical Military Testing Equipment & Measurement	PEEK Polyetheretherketone	450 VAC	1	1	Push-Pull	Panel Mount Through Hole	Solder	Ground	Brass	Bulkhead Front or Rear Side Nut	Metal	Dust Protected	IP50	F	5	Gold	Unshielded	Silver	7.5 A	120 °C	-40 °C
