6GK57954MX000AA0

Active

Siemens

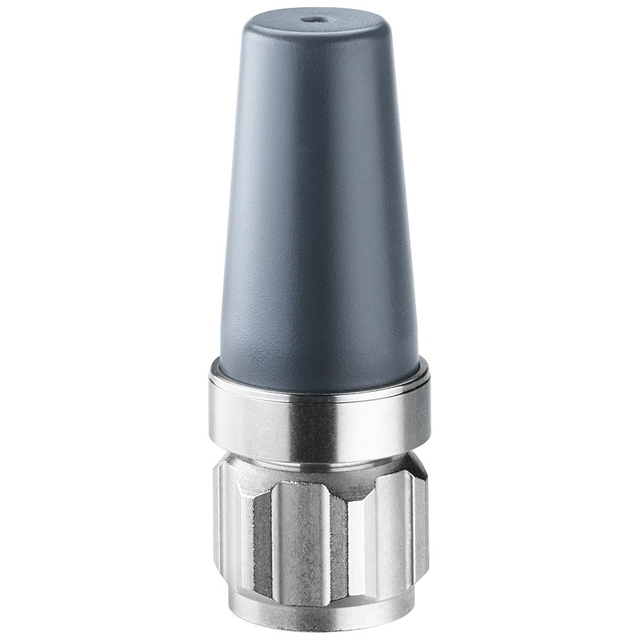

IWLAN ANTENNA ANT795-4MX

Search across all available documentation for this part.

Active

Siemens

IWLAN ANTENNA ANT795-4MX

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	VSWR	Ingress Protection	Number of Bands	Frequency Range [Max]	Frequency Range [Min]	RF Family/Standard	Applications	Gain	Height (Max) [Max]	Height (Max) [Max]	Antenna Type	Termination	Frequency (Center/Band)	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Number of Bands [custom]	Frequency Group	Height (Max) [Max]
Siemens 6GK57954MC000AA3	Connector Mount	2	IP65	3	2.4835 GHz 5.35 GHz 5.85 GHz	2.4 GHz 5.15 GHz 5.725 GHz	WiFi	WLAN	3 dBi 5 dBi	160 mm	6.299 in	Tilt Whip	N Type Male	2.44175 GHz 5.25 GHz 5.7875 GHz	4 GHz	2 GHz	3 GHz
Siemens 6GK57954MX000AA0		2	IP68 IP69K		2 GHz 2.7 GHz 3.8 GHz 5.925 GHz 7.125 GHz	1.7 GHz 2 GHz 2.7 GHz 4.9 GHz 5.925 GHz	WiFi	WLAN	2 dBic 2.5 dBi	55 mm	2.165 in	Dome	N Type Male	1.85 GHz 2.35 GHz 3.25 GHz 5.412 GHz 6.525 GHz				5	Wide Band
Siemens 6GK57954MA000AA3	Connector Mount	2	IP30	3	2.4835 GHz 5.35 GHz 5.85 GHz	2.4 GHz 5.15 GHz 5.725 GHz	WiFi	WLAN	3 dBi 5 dBi	160 mm	6.299 in	Tilt Whip	RP-SMA Male	2.44175 GHz 5.25 GHz 5.7875 GHz	4 GHz	2 GHz	3 GHz
Siemens 6GK57954MB000AA0	Connector Mount	2	IP65	2	2.5 GHz 5.85 GHz	2.4 GHz 5.15 GHz	WiFi	Wi-Fi WLAN	2 dBic 3 dBi	4.488 in		Tilt Whip	SMA	2.45 GHz 5.5 GHz					Wide Band	114 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 83.25

General part information

RF ANTENNA WLAN Dome N Type Male Panel Mount
