DPAF-15-03.0-S-8-2-A

Obsolete

Samtec Inc.

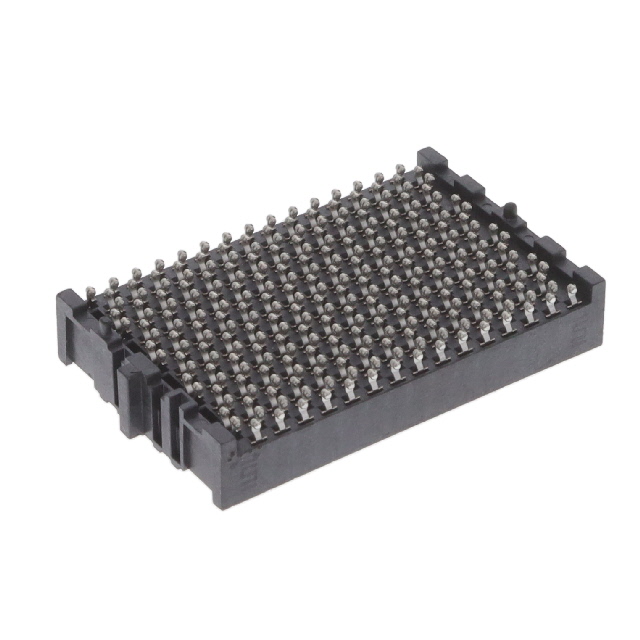

CONN DIFF ARRAY RCPT 208POS SMD

Search across all available documentation for this part.

Obsolete

Samtec Inc.

CONN DIFF ARRAY RCPT 208POS SMD

Technical Specifications

Parameters and characteristics for this part

Specification	DPAF-15-03.0-S-8-2-A

Connector Type	Differential Pair Array, Female
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide
Height Above Board [z]	0.254 in
Height Above Board [z]	6.45 mm
Mated Stacking Heights	10 mm, 17 mm, 14 mm
Mounting Type	Surface Mount
Number of Positions [custom]	208
Number of Positions [custom]	104
Number of Rows	8
Pitch [x]	0.085 in
Pitch [x]	2.16 mm

Part	Mated Stacking Heights	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Number of Positions [custom]	Number of Positions [custom]	Number of Rows	Pitch [x]	Pitch [x]	Connector Type	Features	Contact Finish
Samtec Inc. DPAF-15-03.0-S-8-2-A	10 mm 14 mm 17 mm	Surface Mount	0.76 Ám	30 Áin	0.254 in	6.45 mm	208	104	8	0.085 in	2.16 mm	Differential Pair Array Female	Board Guide	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

208 Signal (104 Pair) Position Connector Differential Pair Array, Female Surface Mount Gold
