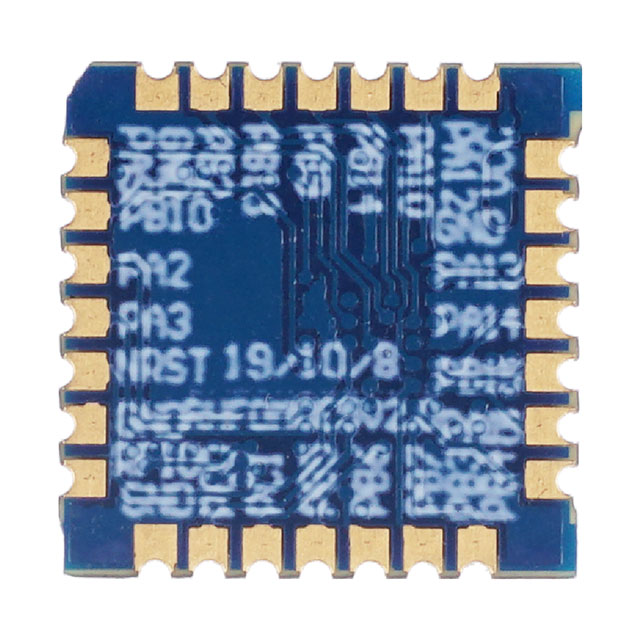

317990687
ActiveSeeed Technology Co., Ltd
RF TXRX MOD ISM<1GHZ SMD LORA
317990687
ActiveSeeed Technology Co., Ltd
RF TXRX MOD ISM<1GHZ SMD LORA
Description
General part information
317990 Series
General ISM < 1GHz LoRaWAN Transceiver Module 868MHz, 915MHz Antenna Not Included Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 317990687 |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving | 6.7 mA |
| Current - Transmitting (Max) | 111 mA |
| Current - Transmitting (Min) | 50 mA |
| Frequency | 915 MHz, 868 MHz |
| Frequency | 868MHz, 915MHz |
| Modulation | LoRa, FSK |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 28-SMD Module |
| Power - Output | 22 dBm |
| Protocol | LoRaWAN |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -137 dBm |
| Serial Interfaces | SPI, UART, I2C, GPIO, ADC |
| Utilized IC / Part | STM32WLE5JC, SX126x |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 1.8 V |
