SCP7VT93KEL1VLK36E

Active

Samsung Semiconductor, Inc.

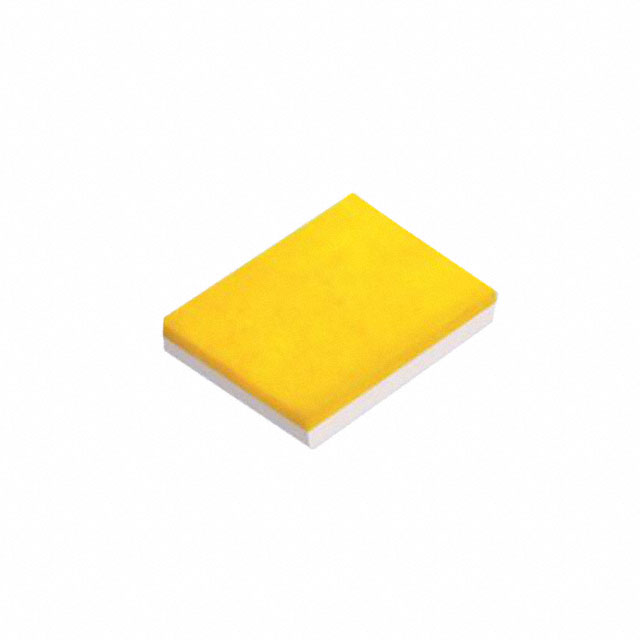

LED LH151B WARM WHT 3000K SMD

Search across all available documentation for this part.

Active

Samsung Semiconductor, Inc.

LED LH151B WARM WHT 3000K SMD

Technical Specifications

Parameters and characteristics for this part

LED LH151B WARM WHT 3000K SMD

Part	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Package / Case	Current - Test	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Color	Mounting Type	Lumens/Watt @ Current - Test	Viewing Angle	CRI (Color Rendering Index)
Samsung Semiconductor, Inc. SCP7VT93KEL1VLK36E	130 lm	160 lm	145 lm	0.018 "	0.46 mm	2.9 V	700 mA	0606, 1616 Metric	350 mA	SMD	1.7 mm	1.7 mm	0.067 in	0.067 in	Warm, White	Surface Mount	143 lm/W	120 °	70

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting LH151B White, Warm 3000K 2.9V 350mA 120° 0606 (1616 Metric)

Technical documentation and resources

No documents available
