DS4212AN+
ActiveAnalog Devices Inc./Maxim Integrated

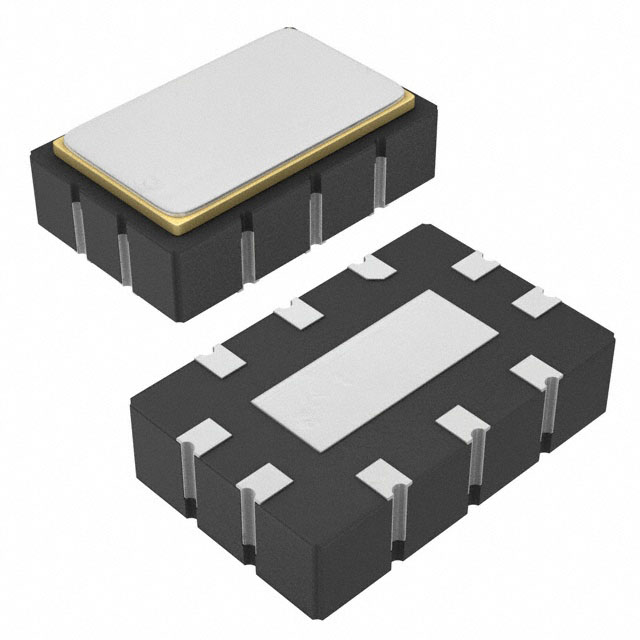

IC OSC CLOCK 212.5MHZ 10-LCCC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DS4212AN+
ActiveAnalog Devices Inc./Maxim Integrated
IC OSC CLOCK 212.5MHZ 10-LCCC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DS4212AN+ |
|---|---|
| Current - Supply | 53 mA |
| Frequency | 212.5 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-LCCC Exposed Pad |
| Supplier Device Package | 10-LCCC |
| Supplier Device Package [x] | 5 |
| Supplier Device Package [y] | 3.2 |
| Type | Clock Oscillator |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
DS4212 Series
IC OSC CLOCK 212.5MHZ 10-LCCC
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Supply | Package / Case | Frequency | Type | Supplier Device Package | Supplier Device Package [x] | Supplier Device Package [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS4212AN+ | Surface Mount | 85 °C | -40 °C | 3.6 V | 3 V | 53 mA | 10-LCCC Exposed Pad | 212.5 MHz | Clock Oscillator | 10-LCCC | 5 | 3.2 |
Description
General part information
DS4212 Series
Clock Oscillator IC 212.5MHz 10-LCCC (5x3.2)
