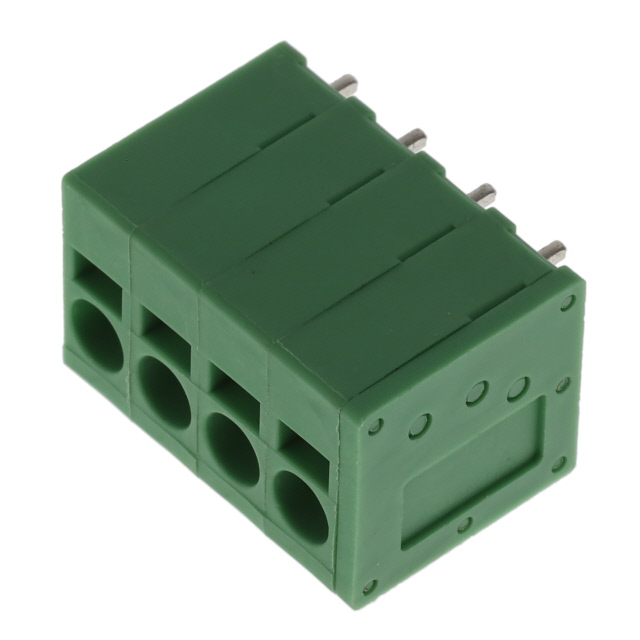

Specification	NJ0400500000G

Clamp Material - Plating	Steel, Stainless
Color	Green
Housing Material	Thermoplastic
Mating Orientation	Vertical with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature (Max)	115 °C
Operating Temperature (Min)	-40 °C
Pitch	0.197 in
Positions Per Level	4
Voltage	300 V
Wire Gauge (AWG) (Max)	24 AWG
Wire Gauge (AWG) (Min)	12 AWG
Wire Termination	Leg Spring, Screwless, Push-In Spring

NJ04 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Clamp Material - Plating	Housing Material	Color	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Wire Termination	Positions Per Level	Mounting Type	Voltage	Number of Levels	Pitch	Mating Orientation	Current

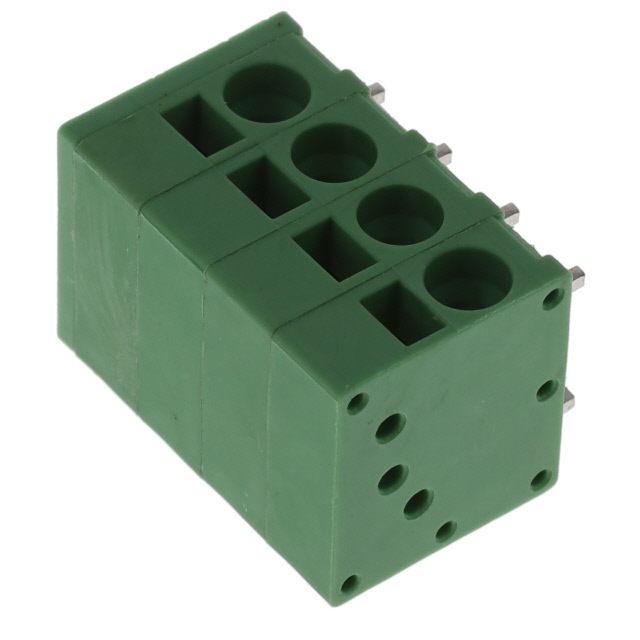

McGill Microwave Systems NJ0401500000G	-40 °C	115 °C	Steel Stainless	Thermoplastic	Green	12 AWG	24 AWG	Leg Spring Push-In Spring Screwless	4	Through Hole	300 V	1	0.197 in	Horizontal with Board
McGill Microwave Systems NJ0400500000G	-40 °C	115 °C	Steel Stainless	Thermoplastic	Green	12 AWG	24 AWG	Leg Spring Push-In Spring Screwless	4	Through Hole	300 V	1	0.197 in	Vertical with Board
McGill Microwave Systems NJ0421500000G	-40 °C	115 °C	Steel Stainless	Thermoplastic	Green	16 AWG	24 AWG	Leg Spring Push-In Spring Screwless	4	Through Hole	300 V	1	0.138 in	Horizontal with Board	10 A
