General part information

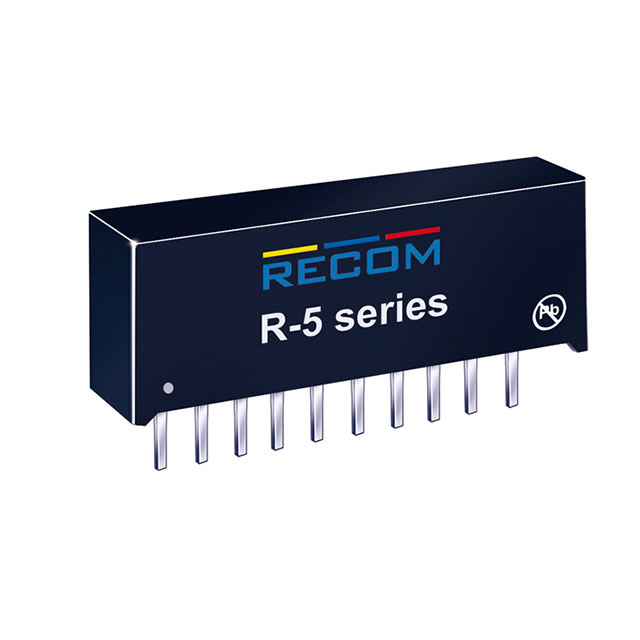

Non-Isolated DC/DC Converters DC/DC REG 4.5-18Vin 1.0-3Vout
Technical documentation and resources
Parameters and characteristics for this part
| Specification | R-545.0DA |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 4 A |
| Efficiency | 95 % |
| Features | Remote On/Off, OCP, SCP |
| Mounting Type | Through Hole, Right Angle |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 12-SIP Module |
| Power (Watts) | 20 W |
| Size / Dimension [x] | 1.27 in |
| Size / Dimension [x] | 32.2 mm |
| Size / Dimension [y] | 15 mm |
| Size / Dimension [y] | 0.59 in |
| Size / Dimension [z] | 9.1 mm |
| Size / Dimension [z] | 0.36 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 6.5 V |
| Voltage - Output 1 | 5 V |
Non-Isolated DC/DC Converters DC/DC REG 4.5-18Vin 1.0-3Vout
| Part | Current - Output (Max) [Max] | Power (Watts) | Voltage - Input (Min) [Min] | Control Features | Package / Case | Efficiency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Type | Voltage - Input (Max) [Max] | Voltage - Output 1 | Applications | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RECOM Power R-545.0DA | 4 A | 20 W | 6.5 V | Active High, Enable | 12-SIP Module | 95 % | 9.1 mm | 15 mm | 1.27 in | 0.59 in | 0.36 in | 32.2 mm | Non-Isolated PoL Module | 18 V | 5 V | ITE (Commercial) | 1 | 85 °C | -40 °C | OCP, Remote On/Off, SCP | Through Hole, Right Angle |
