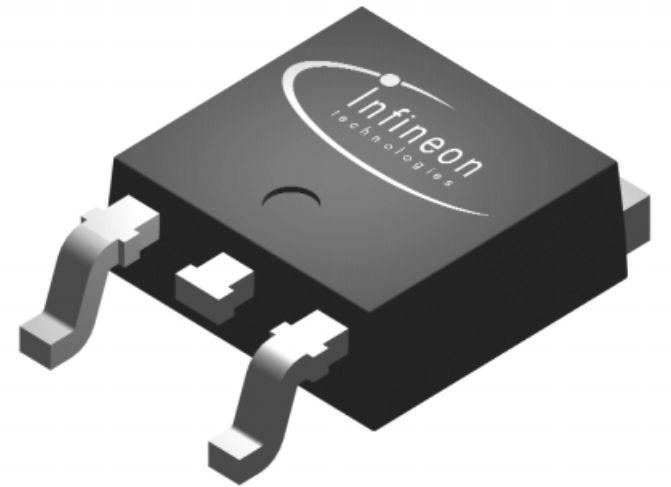

Specification	IPD50R399CPBTMA1

Current - Continuous Drain (Id) (Tc)	9 A
Drain to Source Voltage (Vdss)	500 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Max)	23 nC
Input Capacitance (Ciss) (Max)	890 pF
Mounting Type	Surface Mount
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Package Name	PG-TO252-3-313
Power Dissipation (Max)	83 W
Rds On (Max)	399 mOhm
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max)	3.5 V

IPD50R Series

Part	Package Name	Mounting Type	Vgs(th) (Max)	Gate Charge (Max)	Power Dissipation (Max)	Input Capacitance (Ciss) (Max)	Technology	Drain to Source Voltage (Vdss)	Package / Case	Vgs (Max)	Current - Continuous Drain (Id) (Tc)	Drive Voltage (Max Rds On, Min Rds On)	Operating Temperature (Min)	Operating Temperature (Max)	FET Type	Rds On (Max)
INFINEON IPD50R399CPATMA1	PG-TO252-3-313	Surface Mount	3.5 V	23 nC	83 W	890 pF	MOSFET (Metal Oxide)	500 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	20 V	9 A	10 V	-55 °C	150 °C	N-Channel	399 mOhm
INFINEON IPD50R380CEBTMA1	PG-TO252-3	Surface Mount	3.5 V	24.8 nC	73 W	584 pF	MOSFET (Metal Oxide)	500 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	20 V	14.1 A	13 V	-55 °C	150 °C	N-Channel	380 mOhm
INFINEON IPD50R520CP	PG-TO252-3-11	Surface Mount	3.5 V	17 nC	66 W	680 pF	MOSFET (Metal Oxide)	500 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	20 V	7.1 A	10 V	-55 °C	150 °C	N-Channel	520 mOhm
INFINEON IPD50R500CEATMA1	PG-TO252-3	Surface Mount	3.5 V	18.7 nC	57 W	433 pF	MOSFET (Metal Oxide)	500 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	20 V	7.6 A	13 V	-55 °C	150 °C	N-Channel	500 mOhm
INFINEON IPD50R950CEBTMA1	PG-TO252-3-11	Surface Mount	3.5 V	10.5 nC	34 W	231 pF	MOSFET (Metal Oxide)	500 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	20 V	4.3 A	13 V	-55 °C	150 °C	N-Channel	950 mOhm
INFINEON IPD50R800CEBTMA1	PG-TO252-3	Surface Mount	3.5 V	12.4 nC	40 W	280 pF	MOSFET (Metal Oxide)	500 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	20 V	5 A	13 V	-55 °C	150 °C	N-Channel	800 mOhm
INFINEON IPD50R380CEAUMA1	PG-TO252-3	Surface Mount	3.5 V	24.8 nC	98 W	584 pF	MOSFET (Metal Oxide)	500 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	20 V	14.1 A	13 V	-55 °C	150 °C	N-Channel	380 mOhm
INFINEON IPD50R650CEATMA1	PG-TO252-3	Surface Mount	3.5 V	15 nC	69 W	342 pF	MOSFET (Metal Oxide)	500 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	20 V	6.1 A	13 V	-55 °C	150 °C	N-Channel	650 mOhm
INFINEON IPD50R950CEATMA1	PG-TO252-3	Surface Mount	3.5 V	10.5 nC	53 W	231 pF	MOSFET (Metal Oxide)	500 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	20 V	4.3 A	13 V	-55 °C	150 °C	N-Channel	950 mOhm
INFINEON IPD50R280CEATMA1	PG-TO252-3	Surface Mount	3.5 V	32.6 nC	119 W	773 pF	MOSFET (Metal Oxide)	500 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	20 V	13 A	13 V	-55 °C	150 °C	N-Channel	0.28 Ohm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

IPD50R399CPBTMA1 | Datasheet
