ECC-A3A820JGE

Obsolete

Panasonic Industrial Automation Sales

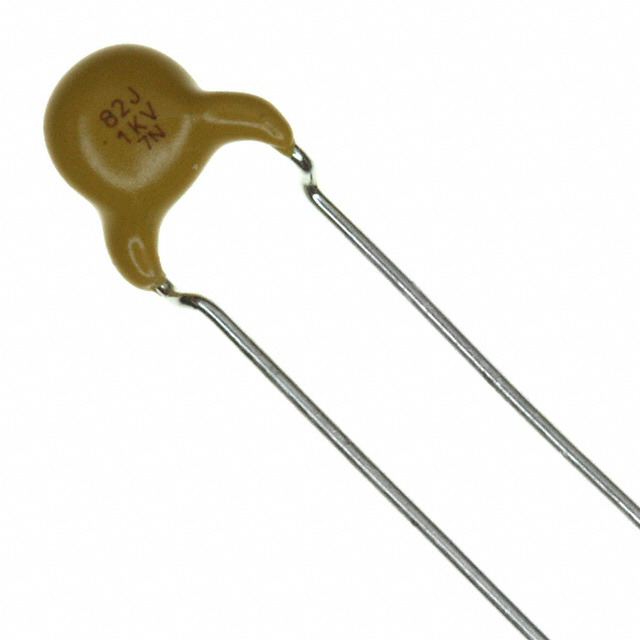

CAP CER 82PF 1KV SL/GP RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

ECC-A3A820JGE

Obsolete

Panasonic Industrial Automation Sales

CAP CER 82PF 1KV SL/GP RADIAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECC-A3A820JGE

Applications	General Purpose
Capacitance	82 pF
Features	High Voltage
Height - Seated (Max) [Max]	0.394 in
Height - Seated (Max) [Max]	10 mm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lead Style	Formed Leads
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Package / Case	Disc, Radial
Size / Dimension [diameter]	6 mm
Size / Dimension [diameter]	0.236 in
Temperature Coefficient	SL/GP
Tolerance	5 %
Voltage - Rated	1 kV
Voltage - Rated	1000 V

ECC-A3 Series

Part	Tolerance	Applications	Capacitance	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Mounting Type	Lead Style	Package / Case	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Voltage - Rated	Height - Seated (Max)
Panasonic Industrial Automation Sales ECC-A3F120JGE	5 %	General Purpose	12 pF	7.5 mm	0.295 in	-25 °C	105 ░C	SL/GP	Through Hole	Formed Leads	Disc Radial	High Voltage	11 mm	0.433 in	7 mm	0.276 in
Panasonic Industrial Automation Sales ECC-A3A470JGE	5 %	General Purpose	47 pF	5 mm	0.197 in	-25 °C	105 ░C	SL/GP	Through Hole	Formed Leads	Disc Radial	High Voltage			6 mm	0.236 in	0.394 in	10 mm	1 kV	1000 V
Panasonic Industrial Automation Sales ECC-A3D470JGE	5 %	General Purpose	47 pF	7.5 mm	0.295 in	-25 °C	105 ░C	SL/GP	Through Hole	Formed Leads	Disc Radial	High Voltage	11 mm	0.433 in	7 mm	0.276 in			2 kV	2000 V
Panasonic Industrial Automation Sales ECC-A3A820JGE	5 %	General Purpose	82 pF	5 mm	0.197 in	-25 °C	105 ░C	SL/GP	Through Hole	Formed Leads	Disc Radial	High Voltage			6 mm	0.236 in	0.394 in	10 mm	1 kV	1000 V
Panasonic Industrial Automation Sales ECC-A3A101JGE	5 %	General Purpose	100 pF	5 mm	0.197 in	-25 °C	105 ░C	SL/GP	Through Hole	Formed Leads	Disc Radial	High Voltage	11 mm	0.433 in	7 mm	0.276 in			1 kV	1000 V
Panasonic Industrial Automation Sales ECC-A3F101JGE	5 %	General Purpose	100 pF	7.5 mm	0.295 in	-25 °C	105 ░C	SL/GP	Through Hole	Straight	Disc Radial	High Voltage			10 mm	0.394 in	0.551 "				14 mm
Panasonic Industrial Automation Sales ECC-A3J101JGE	5 %	General Purpose	100 pF	7.5 mm	0.295 in	-25 °C	105 ░C	SL/GP	Through Hole	Formed Leads	Disc Radial	High Voltage	17 mm	0.669 in	13 mm	0.512 in			6 kV	6000 V
Panasonic Industrial Automation Sales ECC-A3A560JGE	5 %	General Purpose	56 pF	5 mm	0.197 in	-25 °C	105 ░C	SL/GP	Through Hole	Formed Leads	Disc Radial	High Voltage			6 mm	0.236 in	0.394 in	10 mm	1 kV	1000 V
Panasonic Industrial Automation Sales ECC-A3A220JGE	5 %	General Purpose	22 pF	5 mm	0.197 in	-25 °C	105 ░C	SL/GP	Through Hole	Formed Leads	Disc Radial	High Voltage			6 mm	0.236 in	0.394 in	10 mm	1 kV	1000 V
Panasonic Industrial Automation Sales ECC-A3D120JGE	5 %	General Purpose	12 pF	7.5 mm	0.295 in	-25 °C	105 ░C	SL/GP	Through Hole	Formed Leads	Disc Radial	High Voltage	11 mm	0.433 in	7 mm	0.276 in			2 kV	2000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ECC-A3 Series

82 pF ±5% 1000V (1kV) Ceramic Capacitor SL/GP Radial, Disc
