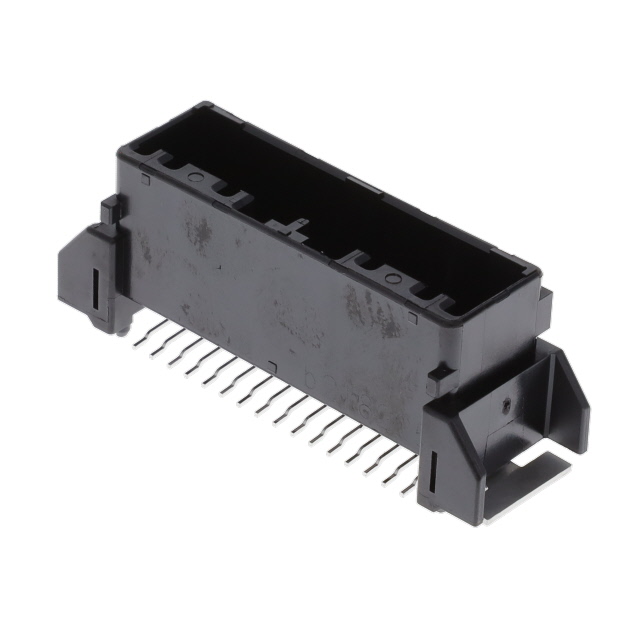

MX34R32VF1

Active

JAE Electronics

2 TIN 3MM -40℃~+85℃ COPPER ALLOY VERTICAL WELDING SMD WIRE TO BOARD CONNECTOR ROHS

Search across all available documentation for this part.

Active

JAE Electronics

2 TIN 3MM -40℃~+85℃ COPPER ALLOY VERTICAL WELDING SMD WIRE TO BOARD CONNECTOR ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	MX34R32VF1

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Solder Retention, Board Guide
Insulation Color	Black
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.087 in
Pitch - Mating	2.2 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Contact Material	Number of Positions Loaded	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Features	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Shape	Style	Applications	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Termination	Contact Type	Fastening Type	Mounting Type	Connector Type	Insulation Material
JAE Electronics MX34R32VF1	Copper Alloy	All	3 A	3 mm	0.118 in	Board Guide Solder Retention	Shrouded - 4 Wall	85 °C	-40 °C	2	Square	Board to Cable/Wire	Automotive	Black	0.087 in	2.2 mm	Tin	Solder	Male Pin	Locking Ramp	Surface Mount	Header	Polyphenylene Sulfide (PPS) Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 32 position 0.087" (2.20mm)
