Specification	TV07UCOMUSB3SW11S

Applications	Military, Aerospace
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Fastening Type	Threaded
Features	Heat Shrink
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Free Hanging (In-Line), Panel Mount
Number of Positions	8
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Position Types	Data
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert	11
Shell Size - Insert	11
Shielding	Unshielded
Termination	Solder Cup

TV07UCO Series

Part	Applications	Mounting Feature	Orientation	Connector Type	Termination	Shell Finish	Number of Positions	Position Types	Color	Shielding	Primary Material	Operating Temperature (Max)	Operating Temperature (Min)	Shell Material	Shell Size - Insert	Shell Size - Insert	Mounting Type	Fastening Type	Features

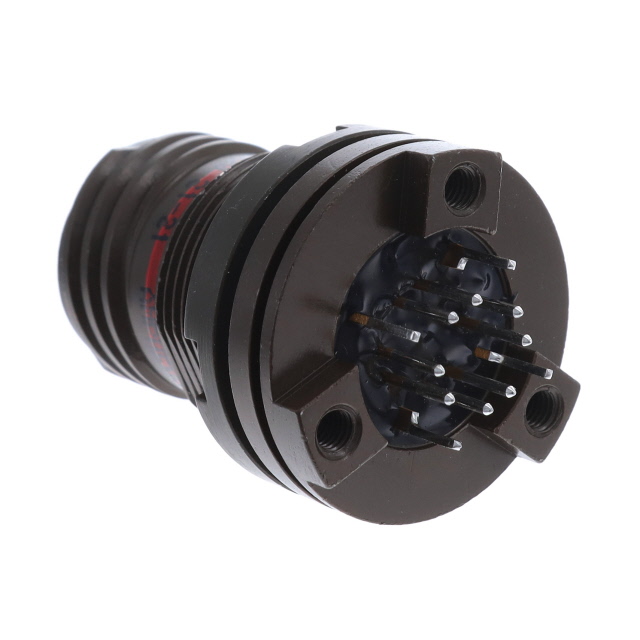

McGill Microwave Systems TV07UCOMUSB3CIW11SF059	Aerospace Military	Bulkhead Front Side Nut	N (Normal)	Female Sockets Receptacle	Solder	Olive Drab Cadmium	8	Data	Olive Drab	Unshielded	Metal	125 °C	-55 °C	Aluminum	11	11	Panel Mount Through Hole	Threaded
McGill Microwave Systems TV07UCOMUSB3CZN11SF312	Aerospace Military	Bulkhead Front Side Nut	N (Normal)	Female Sockets Receptacle	Crimp	Black Zinc Nickel	8	Data	Black	Unshielded	Metal	125 °C	-55 °C	Aluminum	11	11	Free Hanging (In-Line) Panel Mount	Threaded	Heat Shrink

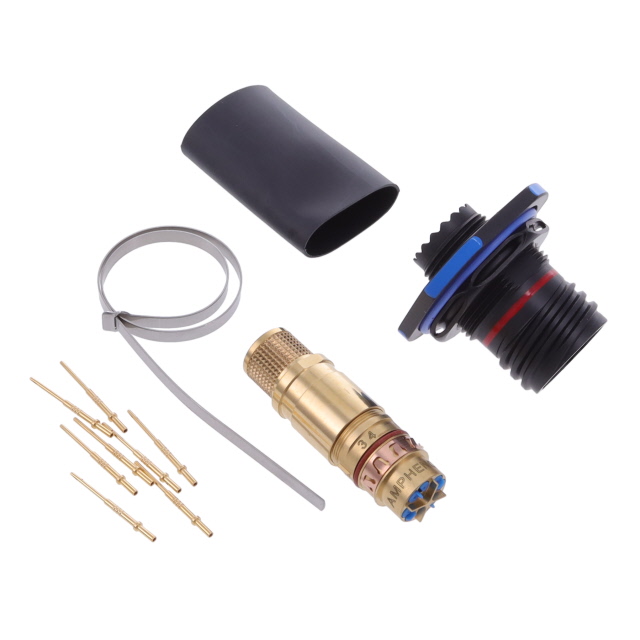

McGill Microwave Systems TV07UCOMUSB3CZN11S	Aerospace Military	Bulkhead Front Side Nut	N (Normal)	Female Sockets Receptacle	Crimp	Black Zinc Nickel	8	Data	Black	Unshielded	Metal	125 °C	-55 °C	Aluminum	11	11	Free Hanging (In-Line) Panel Mount	Threaded	Heat Shrink

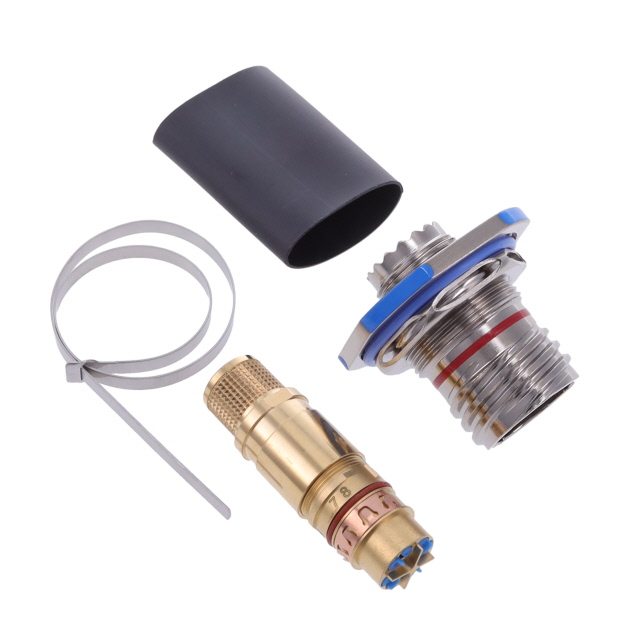

McGill Microwave Systems TV07UCOMUSB3SF11S	Aerospace Military	Bulkhead Front Side Nut	N (Normal)	Female Sockets Receptacle	Solder Cup	Nickel	8	Data	Silver	Unshielded	Metal	125 °C	-55 °C	Aluminum	11	11	Free Hanging (In-Line) Panel Mount	Threaded	Heat Shrink

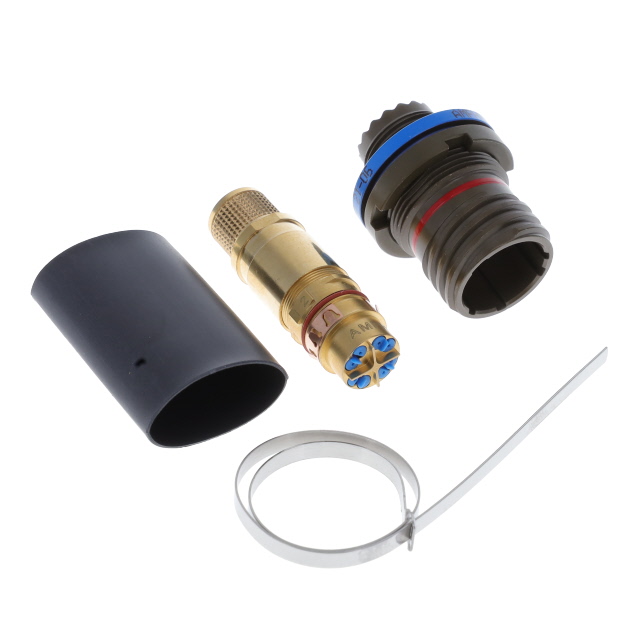

McGill Microwave Systems TV07UCOMUSB3SW11SF312	Aerospace Military	Bulkhead Front Side Nut	N (Normal)	Female Sockets Receptacle	Solder Cup	Olive Drab Cadmium	8	Data	Olive Drab	Unshielded	Metal	125 °C	-55 °C	Aluminum	11	11	Free Hanging (In-Line) Panel Mount	Threaded	Heat Shrink
McGill Microwave Systems TV07UCOMUSB3CW11SF312	Aerospace Military	Bulkhead Front Side Nut	N (Normal)	Female Sockets Receptacle	Crimp	Olive Drab Cadmium	8	Data	Olive Drab	Unshielded	Metal	125 °C	-55 °C	Aluminum	11	11	Free Hanging (In-Line) Panel Mount	Threaded	Heat Shrink

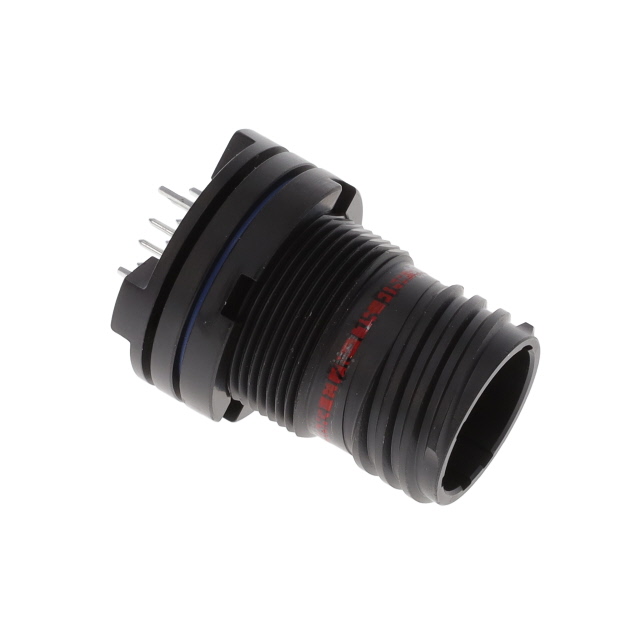

McGill Microwave Systems TV07UCOMUSB3CIZN11SF059	Aerospace Military	Bulkhead Front Side Nut	N (Normal)	Female Sockets Receptacle	Solder	Black Zinc Nickel	8	Data	Black	Unshielded	Metal	125 °C	-55 °C	Aluminum	11	11	Panel Mount Through Hole	Threaded

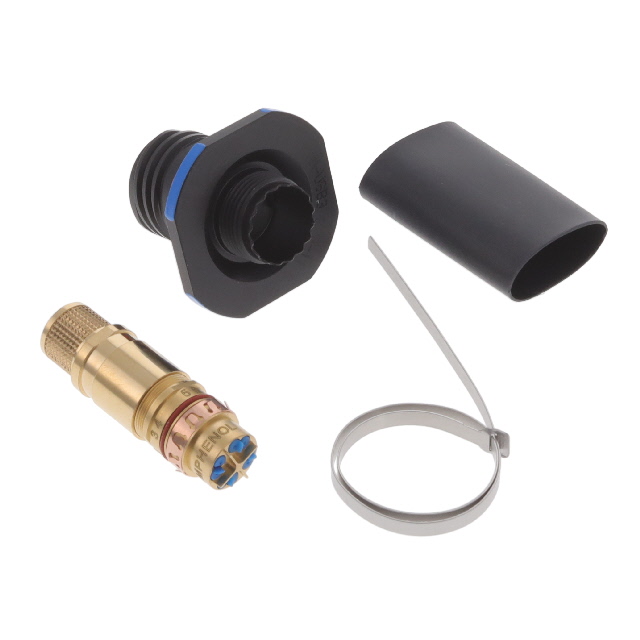

McGill Microwave Systems TV07UCOMUSB3SZN11S	Aerospace Military	Bulkhead Front Side Nut	N (Normal)	Female Sockets Receptacle	Solder Cup	Black Zinc Nickel	8	Data	Black	Unshielded	Metal	125 °C	-55 °C	Aluminum	11	11	Free Hanging (In-Line) Panel Mount	Threaded	Heat Shrink

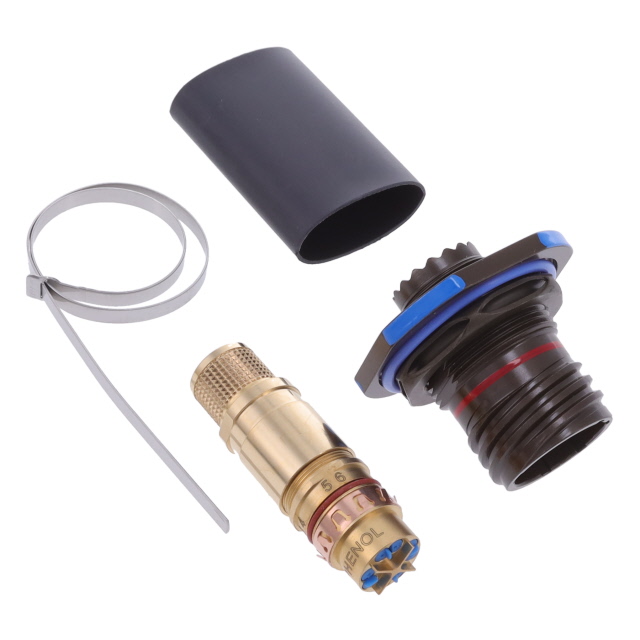

McGill Microwave Systems TV07UCOMUSB3SW11S	Aerospace Military	Bulkhead Front Side Nut	N (Normal)	Female Sockets Receptacle	Solder Cup	Olive Drab Cadmium	8	Data	Olive Drab	Unshielded	Metal	125 °C	-55 °C	Aluminum	11	11	Free Hanging (In-Line) Panel Mount	Threaded	Heat Shrink

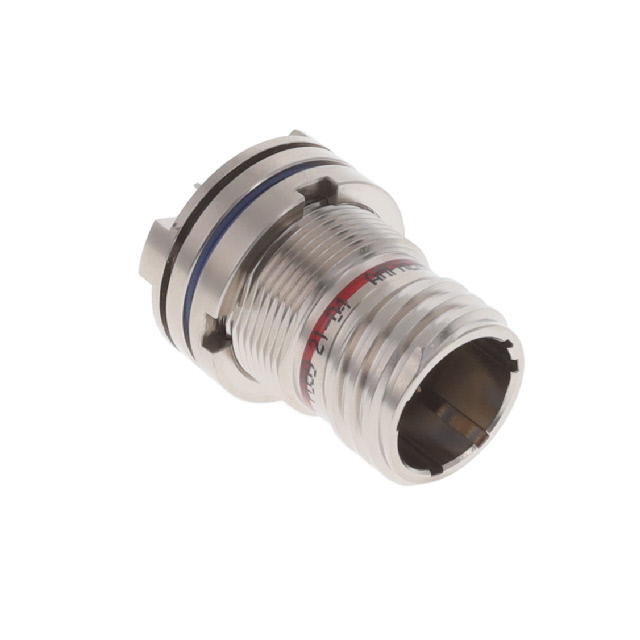

McGill Microwave Systems TV07UCOMUSB3CIF11SF059	Aerospace Military	Bulkhead Front Side Nut	N (Normal)	Female Sockets Receptacle	Solder	Nickel	8	Data	Silver	Unshielded	Metal	125 °C	-55 °C	Aluminum	11	11	Panel Mount Through Hole	Threaded
