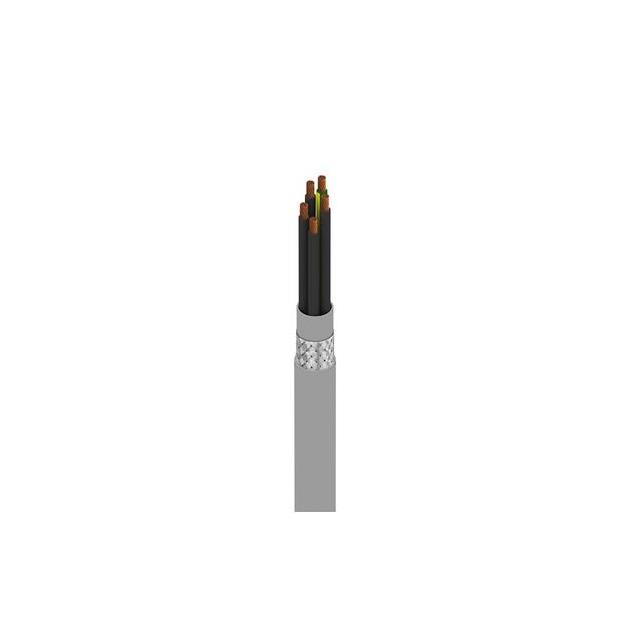

Specification	73805WS 008100

Cable Type	Conductor, Multi
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand Count	16
Conductor Strand Gauge	30
Features	Oil Resistant
Jacket (Insulation) Diameter	0.414 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Gray
Length	100 ft
Number of Conductors	5
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-5 °C
Ratings	UL, 2587, Style
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Industrial, Signal, Control
Voltage	600 V
Wire Gauge	18 AWG

73805WS Series

Part	Cable Type	Jacket (Insulation) Thickness	Ratings	Conductor Insulation	Operating Temperature (Max)	Operating Temperature (Min)	Conductor Strand Gauge	Conductor Strand Count	Usage	Shield Type	Jacket Color	Voltage	Wire Gauge	Number of Conductors	Features	Conductor Material	Length	Jacket (Insulation) Material	Jacket (Insulation) Diameter	Shield Coverage	Spool Size	Shield Material	Length
Belden Inc. 73805WS 0081000	Conductor Multi	0.035 in	2587 Style UL	Poly-Vinyl Chloride (PVC)	90 °C	-5 °C	30	16	Control Industrial Signal	Braid	Gray	600 V	18 AWG	5	Oil Resistant	Bare Copper	Enter Number of Feet in Order Quantity	Poly-Vinyl Chloride (PVC)	0.414 in	85 %	1000 ft	Copper Tinned
Belden Inc. 73805WS 008100	Conductor Multi	0.035 in	2587 Style UL	Poly-Vinyl Chloride (PVC)	90 °C	-5 °C	30	16	Control Industrial Signal	Braid	Gray	600 V	18 AWG	5	Oil Resistant	Bare Copper		Poly-Vinyl Chloride (PVC)	0.414 in	85 %		Copper Tinned	100 ft
