W18282-3PG-P-311

Active

Conxall/Switchcraft

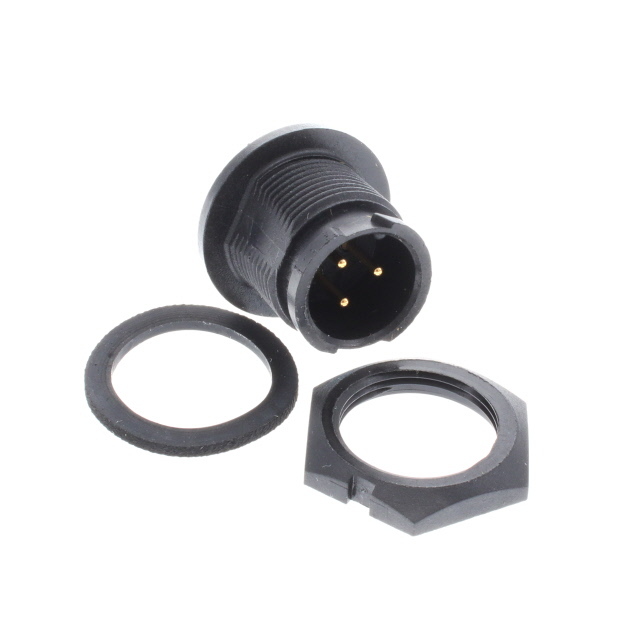

CONN RCPT MALE 3POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 3POS GOLD SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 8.98

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

CONN RCPT MALE 3POS GOLD SOLDER

Part	Contact Material	Shielding	Connector Type	Backshell Material, Plating	Primary Material	Features	Insert Material	Mounting Type	Contact Finish - Mating	Orientation	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Color	Fastening Type	Number of Positions
Conxall/Switchcraft W18282-3PG-P-311	Copper Alloy	Unshielded	Male Pins, Receptacle	Thermoplastic	Plastic	Backshell, UV Resistant	Thermoplastic	Free Hanging (In-Line)	Gold	Keyed	2.29 mm	0.09 in, 0.14 in	3.56 mm	Black	Bayonet Lock
Conxall/Switchcraft W18282-2PG-P-311	Copper Alloy	Unshielded	Male Pins, Receptacle	Thermoplastic	Plastic	Backshell, UV Resistant	Thermoplastic	Free Hanging (In-Line)	Gold	Keyed	2.29 mm	0.09 in, 0.14 in	3.56 mm	Black	Bayonet Lock	2
