6792225342F

Active

DIALIGHT

9MM HG/G PMI-24VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

9MM HG/G PMI-24VDC W/O-RING

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6792225342F	6792225 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Green	Green
Millicandela Rating	5870 mcd	5870 - 25000 mcd
Panel Cutout Dimensions	-	0.37 in
Panel Cutout Dimensions	-	9.35 mm
Panel Cutout Dimensions [custom]	0.37 in	0.37 in
Panel Cutout Dimensions [custom]	9.4 mm	9.4 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Type	LED	LED
Viewing Angle	-	30 °
Voltage	24 V	12 - 24 V
Wavelength - Peak	-	525 nm

LED PANEL INDCATOR GREEN 12V

Part	Type	Voltage	Wavelength - Peak	Ingress Protection	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Lamp Color	Panel Cutout Shape	Ratings	Viewing Angle	Millicandela Rating	Current	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]
DIALIGHT 6792225332F	LED	12 V	525 nm	IP66, NEMA 4X	0.37 in	9.35 mm	Green	Round	DC	30 °	25000 mcd	30 mA
DIALIGHT 6792225342F	LED	24 V		IP66, NEMA 4X			Green	Round	DC		5870 mcd	30 mA	0.37 in	9.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 7.91

General part information

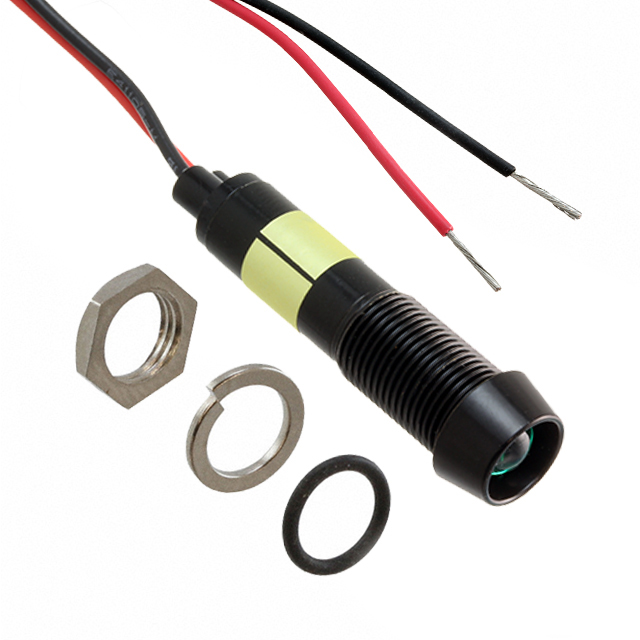

LED Panel Indicator Green 24V 30mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available
