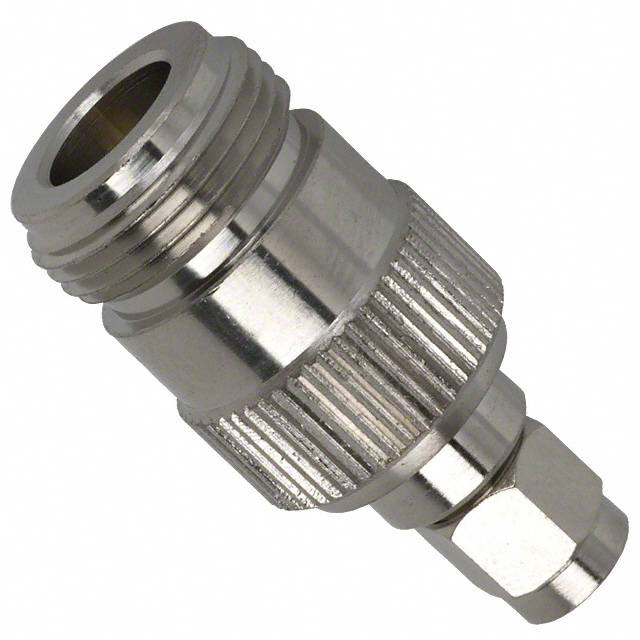

242112RP

Active

Amphenol RF

COAX ADAPT RP-SMA TO N

Search across all available documentation for this part.

Active

Amphenol RF

COAX ADAPT RP-SMA TO N

Technical Specifications

Parameters and characteristics for this part

Specification	242112RP

Adapter Series	RP-SMA to N
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	RP-SMA Plug, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Convert From (Adapter End)	Body Finish	Mounting Type	Impedance	Dielectric Material	Convert To (Adapter End)	Adapter Series	Adapter Type	Operating Temperature [Min]	Operating Temperature [Max]	Style	Frequency - Max [Max]	Conversion Type	Body Material	Center Gender	Center Contact Material	Center Contact Plating
Amphenol RF 242112RP	Female Socket RP-SMA Plug	Nickel	Free Hanging (In-Line)	50 Ohms	Polytetrafluoroethylene (PTFE)	Female Socket N Jack	RP-SMA to N	Plug to Jack	-65 ░C	165 °C	Straight	11 GHz	Between Series	Brass	Female to Female	Beryllium Copper	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector RP-SMA Plug, Female Socket To N Jack, Female Socket 50 Ohms
