M3BRK-4036J

Active

IDC CABLE - MSR40K/MC40G/MPR40K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 4600 Series Drawing +1

M3BRK-4036J

Active

IDC CABLE - MSR40K/MC40G/MPR40K

Deep-Dive with AI

DocumentsDatasheet 4600 Series Drawing +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38.77
		10	$ 29.97
		25	$ 27.18
		50	$ 25.29
		100	$ 23.58
		250	$ 21.57

Description

General part information

M3BRK Series

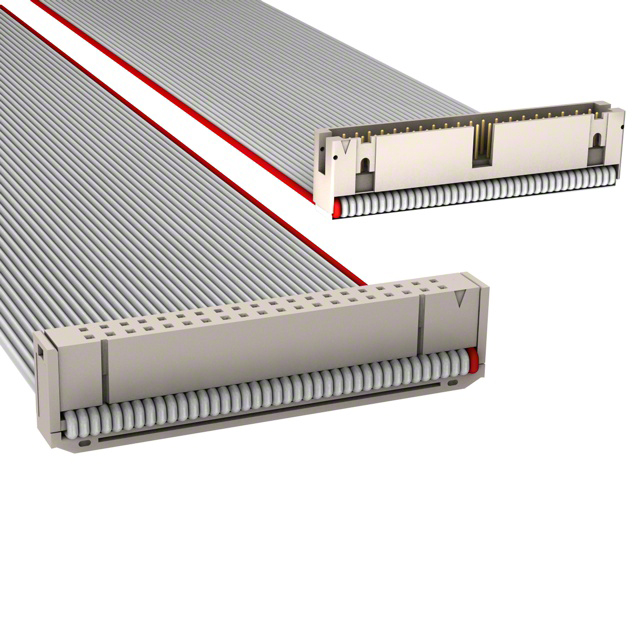

40 Position Cable Assembly Rectangular Socket to Plug 3.00' (914.40mm)

Documents

Technical documentation and resources

Datasheet

4600 Series Drawing

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3BRK-4036J	M3BRK Series

Cable Termination	IDC	IDC
Color	-	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Socket to Plug	Socket to Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Strain Relief (Socket), Strain Relief (Plug), Polarizing Key	Strain Relief (Socket), Strain Relief (Plug), Polarizing Key
Length	-	1.52 - 508 m
Length	-	1.67 - 5 '
Length	-	6 "
Length	-	0.5 '
Length [x]	3 ft	1.5 - 3.34 ft
Length [x]	914.4 mm	1.02 - 914.4 mm
Number of Positions	40	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3BRK Series

IDC CABLE - MSR34K/MC34F/MPR34K

Part	Number of Positions	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Shielding	Pitch - Cable	Pitch - Cable	Cable Termination	Length	Length	Contact Finish	Features	Connector Type	Color	Length [x]	Length [x]	Length	Length	Number of Positions
3M M3BRK-3460K	34	0.1 in	2.54 mm	0.76 Ám	30 Áin	2	Unshielded	0.05 "	1.27 mm	IDC	1.52 m	5 '	Gold	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	Socket to Plug	Multiple, Twisted Pair (Flat)
3M M3BRK-2418R	24	0.1 in	2.54 mm	0.76 Ám	30 Áin	2	Unshielded	0.05 "	1.27 mm	IDC			Gold	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	Socket to Plug	Multiple, Ribbon	457.2 mm	1.5 ft
3M M3BRK-2018R	20	0.1 in	2.54 mm	0.76 Ám	30 Áin	2	Unshielded	0.05 "	1.27 mm	IDC			Gold	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	Socket to Plug	Multiple, Ribbon	457.2 mm	1.5 ft
3M M3BRK-3436R	34	0.1 in	2.54 mm	0.76 Ám	30 Áin	2	Unshielded	0.05 "	1.27 mm	IDC			Gold	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	Socket to Plug	Multiple, Ribbon	914.4 mm	3 ft
3M M3BRK-2036J	20	0.1 in	2.54 mm	0.76 Ám	30 Áin	2	Unshielded	0.05 "	1.27 mm	IDC			Gold	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	Socket to Plug		914.4 mm	3 ft
3M M3BRK-2006R	20	0.1 in	2.54 mm	0.76 Ám	30 Áin	2	Unshielded	0.05 "	1.27 mm	IDC	152.4 mm		Gold	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	Socket to Plug	Multiple, Ribbon			6 "	0.5 '
3M M3BRK-1606R		0.1 in	2.54 mm	0.76 Ám	30 Áin	2	Unshielded	0.05 "	1.27 mm	IDC	152.4 mm		Gold	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	Socket to Plug	Multiple, Ribbon			6 "	0.5 '	16
3M M3BRK-2636J	26	0.1 in	2.54 mm	0.76 Ám	30 Áin	2	Unshielded	0.05 "	1.27 mm	IDC			Gold	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	Socket to Plug		914.4 mm	3 ft
3M M3BRK-2640K	26	0.1 in	2.54 mm	0.76 Ám	30 Áin	2	Unshielded	0.05 "	1.27 mm	IDC			Gold	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	Socket to Plug	Multiple, Twisted Pair (Flat)	1.02 m	3.34 ft
3M M3BRK-1618R		0.1 in	2.54 mm	0.76 Ám	30 Áin	2	Unshielded	0.05 "	1.27 mm	IDC			Gold	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	Socket to Plug	Multiple, Ribbon	457.2 mm	1.5 ft			16
