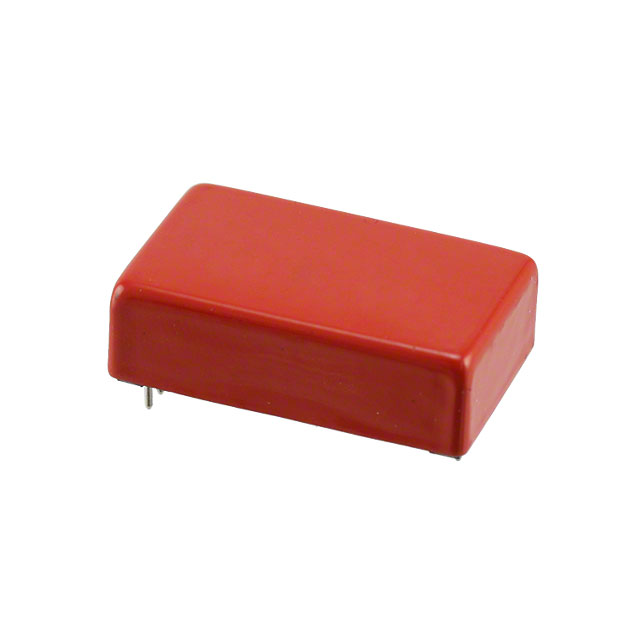

7104-24-1100

Active

Coto Technology

RELAY REED 4PST 500MA 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

7104-24-1100

Active

Coto Technology

RELAY REED 4PST 500MA 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 25.96
		21	$ 24.66
		42	$ 22.06
		105	$ 20.77
		252	$ 19.47
		504	$ 18.17

Description

General part information

7104 Series

RELAY REED 4PST 500MA 24V

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	7104-24-1100	7104 Series

Coil Current	12 mA	12 - 62.5 mA
Coil Resistance	2 kOhms	2 - 550 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	5 - 24 VDC
Contact Form	4PST-NO (4 Form A)	4PST-NO (4 Form A)
Contact Rating (Current)	0.5 A	0.5 A
Features	-	Electrostatic Shield, Diode
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	18 VDC	3.75 - 18 VDC
Must Release Voltage	2 VDC	0.4 - 2 VDC
Operate Time	1 ms	1 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Release Time	0.1 ms	0.1 ms
Switching Voltage	200 VDC, 200 VAC	200 VDC
Termination Style	PC Pin	PC Pin

7104 Series

RELAY REED 4PST 500MA 24V

Part	Must Operate Voltage	Coil Voltage	Operate Time	Contact Form	Contact Rating (Current)	Switching Voltage	Coil Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Release Time	Mounting Type	Coil Current	Must Release Voltage	Features
Coto Technology 7104-24-1100	18 VDC	24 VDC	1 ms	4PST-NO (4 Form A)	0.5 A	200 VDC, 200 VAC	Non Latching	PC Pin	85 °C	-20 C	2 kOhms	0.1 ms	Through Hole	12 mA	2 VDC
Coto Technology 7104-05-1010	3.75 VDC	5 VDC	1 ms	4PST-NO (4 Form A)	0.5 A	200 VDC, 200 VAC	Non Latching	PC Pin	85 °C	-20 C	80 Ohms	0.1 ms	Through Hole	62.5 mA	0.4 VDC	Electrostatic Shield
Coto Technology 7104-05-1011	3.75 VDC	5 VDC	1 ms	4PST-NO (4 Form A)	0.5 A	200 VDC, 200 VAC	Non Latching	PC Pin	85 °C	-20 C	80 Ohms	0.1 ms	Through Hole	62.5 mA	0.4 VDC	Diode, Electrostatic Shield
Coto Technology 7104-12-1010	9 VDC	12 VDC	1 ms	4PST-NO (4 Form A)	0.5 A	200 VDC, 200 VAC	Non Latching	PC Pin	85 °C	-20 C	550 Ohms	0.1 ms	Through Hole	21.8 mA	1 VDC	Electrostatic Shield
Coto Technology 7104-05-1001	3.75 VDC	5 VDC	1 ms	4PST-NO (4 Form A)	0.5 A	200 VDC, 200 VAC	Non Latching	PC Pin	85 °C	-20 C	80 Ohms	0.1 ms	Through Hole	62.5 mA	0.4 VDC	Diode
Coto Technology 7104-24-1010	18 VDC	24 VDC	1 ms	4PST-NO (4 Form A)	0.5 A	200 VDC, 200 VAC	Non Latching	PC Pin	85 °C	-20 C	2 kOhms	0.1 ms	Through Hole	12 mA	2 VDC	Electrostatic Shield
Coto Technology 7104-12-1000	9 VDC	12 VDC	1 ms	4PST-NO (4 Form A)	0.5 A	200 VDC, 200 VAC	Non Latching	PC Pin	85 °C	-20 C	550 Ohms	0.1 ms	Through Hole	21.8 mA	1 VDC
Coto Technology 7104-12-1011	9 VDC	12 VDC	1 ms	4PST-NO (4 Form A)	0.5 A	200 VDC, 200 VAC	Non Latching	PC Pin	85 °C	-20 C	550 Ohms	0.1 ms	Through Hole	21.8 mA	1 VDC	Diode, Electrostatic Shield
Coto Technology 7104-12-1100	9 VDC	12 VDC	1 ms	4PST-NO (4 Form A)	0.5 A	200 VDC, 200 VAC	Non Latching	PC Pin	85 °C	-20 C	550 Ohms	0.1 ms	Through Hole	21.8 mA	1 VDC
