Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 46.00 | |
| 10 | $ 39.68 | |||
| 25 | $ 37.40 | |||
| 50 | $ 35.77 | |||
| 100 | $ 35.25 | |||
General part information

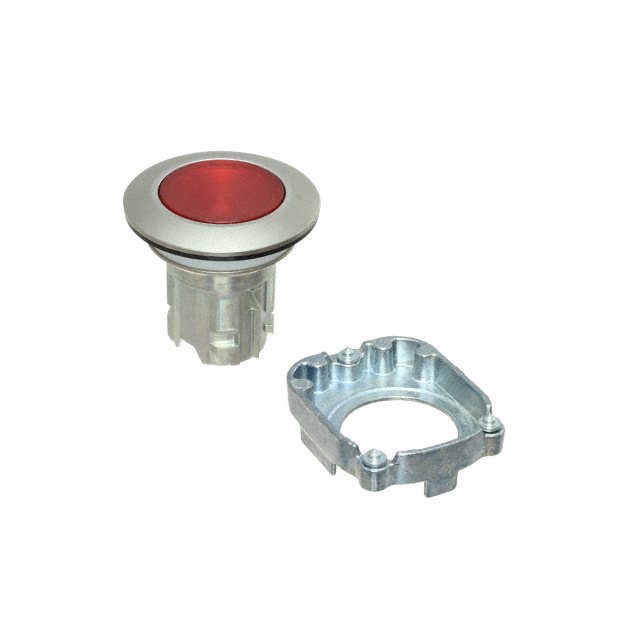

Configurable Switch Body Pushbutton, Round Illuminated - Red
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 45-2231.4FE0.000 | 45-2231 Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | 45, EAO | 45, EAO |
| Actuator Type | Pushbutton, Round | Pushbutton, Round |
| Illumination | - | Illuminated - White, Illuminated - Blue, Illuminated, Illuminated - Yellow, Illuminated - Amber, Illuminated - Green |
| Panel Cutout Dimensions | 30.5 mm | 22.3 - 30.5 mm |
| Requires | Illumination Source, Contact Block(s) | Illumination Source, Contact Block(s) |
| Type | Momentary | Momentary |
CONFIG SW BODY PUSHBUTTON ILLUM
| Part | Type | Actuator Type | Illumination | Panel Cutout Dimensions | Requires | (Select First, Then Apply Filters) Compatible Series |
|---|---|---|---|---|---|---|
Momentary | Pushbutton, Round | Illuminated - White | 22.3 mm | Contact Block(s), Illumination Source | 45, EAO | |
Momentary | Pushbutton, Round | 30.5 mm | Contact Block(s), Illumination Source | 45, EAO | ||
Momentary | Pushbutton, Round | Illuminated - Blue | 22.3 mm | Contact Block(s), Illumination Source | 45, EAO | |
Momentary | Pushbutton, Round | Illuminated | 22.3 mm | Contact Block(s), Illumination Source | 45, EAO | |
Momentary | Pushbutton, Round | Illuminated - Yellow | 22.3 mm | Contact Block(s), Illumination Source | 45, EAO | |
Momentary | Pushbutton, Round | Illuminated - Amber | 22.3 mm | Contact Block(s), Illumination Source | 45, EAO | |
Momentary | Pushbutton, Round | Illuminated - White | 22.3 mm | Contact Block(s), Illumination Source | 45, EAO | |
Momentary | Pushbutton, Round | Illuminated - Blue | 22.3 mm | Contact Block(s), Illumination Source | 45, EAO | |
Momentary | Pushbutton, Round | Illuminated - Blue | 22.3 mm | Contact Block(s), Illumination Source | 45, EAO | |
Momentary | Pushbutton, Round | Illuminated - Blue | 22.3 mm | Contact Block(s), Illumination Source | 45, EAO |
