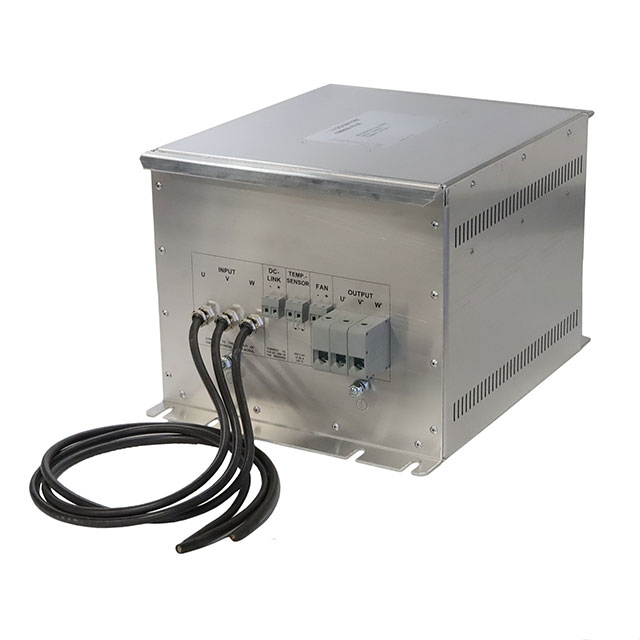

FN5030-75-35

Obsolete

TE Connectivity Raychem Cable Protection

LINE FILTER 75A CHASSIS MOUNT

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

LINE FILTER 75A CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	FN5030-75-35

Applications	General Purpose
Configuration	Three Stage
Current	75 A
Filter Type	Three Phase (Delta)
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Wire Leads, Terminal Block
Voltage - Rated AC (Phase to Ground/Neutral)	288 V
Voltage - Rated AC (Phase to Phase)	500 V

Part	Operating Temperature [custom]	Current	Applications	Configuration	Mounting Type	Voltage - Rated AC (Phase to Phase)	Filter Type	Termination Style	Voltage - Rated AC (Phase to Ground/Neutral)
TE Connectivity Raychem Cable Protection FN5030-120-35	-25 °C 100 °C	120 A	General Purpose	Three Stage	Chassis Mount	500 V	Three Phase (Delta)	Terminal Block Wire Leads	288 V
TE Connectivity Raychem Cable Protection FN5030-75-35	-25 °C 100 °C	75 A	General Purpose	Three Stage	Chassis Mount	500 V	Three Phase (Delta)	Terminal Block Wire Leads	288 V
TE Connectivity Raychem Cable Protection FN5030-25-33	-25 °C 100 °C	25 A	General Purpose	Three Stage	Chassis Mount	500 V	Three Phase (Delta)	Terminal Block Wire Leads	288 V
TE Connectivity Raychem Cable Protection FN5030-55-34	-25 °C 100 °C	55 A	General Purpose	Three Stage	Chassis Mount	500 V	Three Phase (Delta)	Terminal Block Wire Leads	288 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3838.45

General part information

Three Phase (Delta) EMC/EMI Line Filter 75 A Three Stage Terminal Block, Wire Leads

Technical documentation and resources

No documents available
