AU-06PMMP-LC7001

Active

CIRCULAR CONNECTOR, MINI (A) SERIES, PANEL MOUNT PLUG, 6 CONTACTS, PCB PIN, BAYONET

Active

CIRCULAR CONNECTOR, MINI (A) SERIES, PANEL MOUNT PLUG, 6 CONTACTS, PCB PIN, BAYONET

Description

General part information

6 Position Circular Connector Receptacle, Male Pins Solder

Parameters and characteristics for this part

Specification	AU-06PMMP-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating	2 A
Fastening Type	Bayonet Lock
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	PA, Nylon, Polyamide
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount, Through Hole
Number of Positions	6
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	A
Shielding	Unshielded
Termination	Solder
Voltage Rating	300 VAC/DC

Part	Primary Material	Shielding	Shell Size - Insert	Connector Type	Mounting Feature	Termination	Shell Material	Current Rating	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Number of Positions	Contact Material	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Color	Insert Material	Voltage Rating	Contact Finish - Mating	Position Types
McGill Microwave Systems AU-06PMMP-LC7001	Plastic	Unshielded	A	Male Pins Receptacle	Bulkhead Front Side Nut	Solder	Glass Filled Nylon Polyamide (PA)	2 A	Keyed	Dust Tight Waterproof	IP67	6	Copper Alloy	Panel Mount Through Hole	-40 °C	105 °C	Bayonet Lock	Black	Nylon PA Polyamide	300 VAC/DC	Gold
McGill Microwave Systems AU-06PMMP-SC7001	Plastic	Unshielded	A	Male Pins Receptacle	Bulkhead Front Side Nut	Solder	Glass Filled Nylon Polyamide (PA)	2 A	Keyed	Dust Tight Waterproof	IP67	6	Copper Alloy	Panel Mount Through Hole	-40 °C	105 °C	Threaded	Black	Glass Filled Nylon PA Polyamide	250 V	Gold

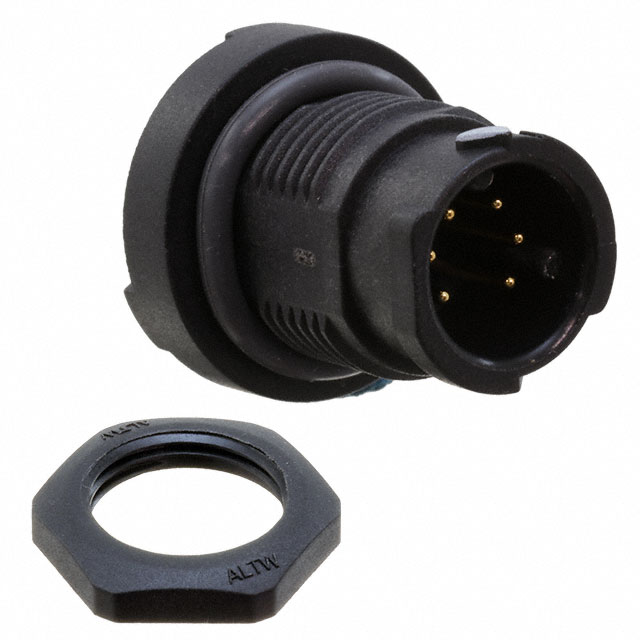

McGill Microwave Systems AU-06PMMP-QC8001	Plastic	Unshielded	A	Male Pins Receptacle	Bulkhead Front Side Nut	Solder	Thermoplastic	2 A	Keyed	Dust Tight Waterproof	IP68	6	Copper Alloy	Panel Mount Through Hole			Push-Pull	Black	Thermoplastic		Gold	Data
McGill Microwave Systems AU-06PMMP-LS7001	Plastic	Unshielded	A	Male Pins Receptacle	Flange	Solder	Glass Filled Nylon Polyamide (PA)	2 A	Keyed	Dust Tight Waterproof	IP67	6	Copper Alloy	Panel Mount Through Hole	-40 °C	105 °C	Bayonet Lock	Black	Glass Filled Nylon PA Polyamide	250 V	Gold
