TL1220R1BBBRHALO

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

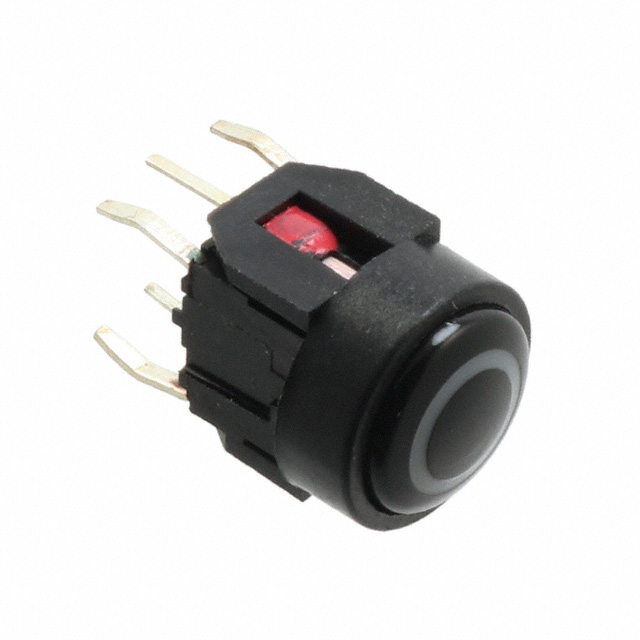

TL1220R1BBBRHALO

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TL1220R1BBBRHALO

Actuator Height off PCB, Vertical [z]	9.9 mm
Actuator Orientation	Top Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Tactile Feedback
Illumination	Illuminated
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	2.3 VDC
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Force	180 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	7.6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	PC Pin

TL1220 Series

Part	Actuator Orientation	Mounting Type	Termination Style	Mechanical Life	Actuator Type	Switch Function	Actuator Height off PCB, Vertical [z]	Switch Travel	Outline [x]	Outline [y]	Contact Rating @ Voltage	Circuit	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Illumination Type, Color	Illumination Voltage (Nominal)	Features
E-Switch TL1220R1BBRNN-GLOSSY	Top Actuated	Through Hole	PC Pin	500000 Cycles	Round Button	Off-Mom	9.9 mm	0.2 mm	7.6 mm	6 mm	0.05 A 12 VDC	SPST-NO	180 gf	85 °C	-40 °C	Non-Illuminated
E-Switch TL1220R2BGGRHALO	Top Actuated	Through Hole	PC Pin	500000 Cycles	Round Button	Off-Mom	9.9 mm	0.2 mm	7.6 mm	6 mm	0.05 A 12 VDC	SPST-NO	180 gf	85 °C	-40 °C	Illuminated	LED Red	2.3 VDC
E-Switch TL1220R1BBSNN-GLOSSY	Top Actuated	Through Hole	PC Pin	500000 Cycles	Round Button	Off-Mom	9.9 mm	0.2 mm	7.6 mm	6 mm	0.05 A 12 VDC	SPST-NO	180 gf	85 °C	-40 °C	Non-Illuminated
E-Switch TL1220R2BGGYHALO	Top Actuated	Through Hole	PC Pin	500000 Cycles	Round Button	Off-Mom	9.9 mm	0.2 mm	7.6 mm	6 mm	0.05 A 12 VDC	SPST-NO	180 gf	85 °C	-40 °C	Illuminated	LED Yellow	2.3 VDC
E-Switch TL1220S2BBGNN	Top Actuated	Through Hole	PC Pin	500000 Cycles	Square Button	Off-Mom	12.5 mm	0.2 mm	7.8 mm	6 mm	0.05 A 12 VDC	SPST-NO	180 gf	85 °C	-40 °C	Non-Illuminated
E-Switch TL1220R1BBBNN-GLOSSY	Top Actuated	Through Hole	PC Pin	500000 Cycles	Round Button	Off-Mom	9.9 mm	0.2 mm	7.6 mm	6 mm	0.05 A 12 VDC	SPST-NO	180 gf	85 °C	-40 °C	Non-Illuminated
E-Switch TL1220S1NNBWTRI	Top Actuated	Through Hole	PC Pin	500000 Cycles	Square Button	Off-Mom	9.9 mm	0.2 mm	7.6 mm	6 mm	0.05 A 12 VDC	SPST-NO	180 gf	85 °C	-40 °C	Illuminated	LED White	3.6 VDC	Triangle Graphic
E-Switch TL1220R1BBBRHALO	Top Actuated	Through Hole	PC Pin	500000 Cycles	Round Button	Off-Mom	9.9 mm	0.2 mm	7.6 mm	6 mm	0.05 A 12 VDC	SPST-NO	180 gf	85 °C	-40 °C	Illuminated	LED Red	2.3 VDC	Tactile Feedback
E-Switch TL1220S4NNBRSQUARE	Top Actuated	Through Hole	PC Pin	500000 Cycles	Rectangular Button	Off-Mom	14.25 mm	0.2 mm	7.6 mm	6 mm	0.05 A 12 VDC	SPST-NO	180 gf	85 °C	-40 °C	Illuminated	LED Red	2.3 VDC	Square Graphic
E-Switch TL1220S2BBTNN	Top Actuated	Through Hole	PC Pin	500000 Cycles	Translucent	Off-Mom	12.5 mm	0.2 mm	7.8 mm	6 mm	0.05 A 12 VDC	SPST-NO	180 gf	85 °C	-40 °C	Non-Illuminated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.91
		10	$ 3.75
		25	$ 3.42
		200	$ 2.96
		400	$ 2.69
		600	$ 2.49
		1000	$ 2.31
		2400	$ 2.10

Description

General part information

TL1220 Series

Tactile Switch SPST-NO Top Actuated Through Hole
