BAS40-06-C

Active

Diotec Semiconductor

Search across all available documentation for this part.

Active

Diotec Semiconductor

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.02

General part information

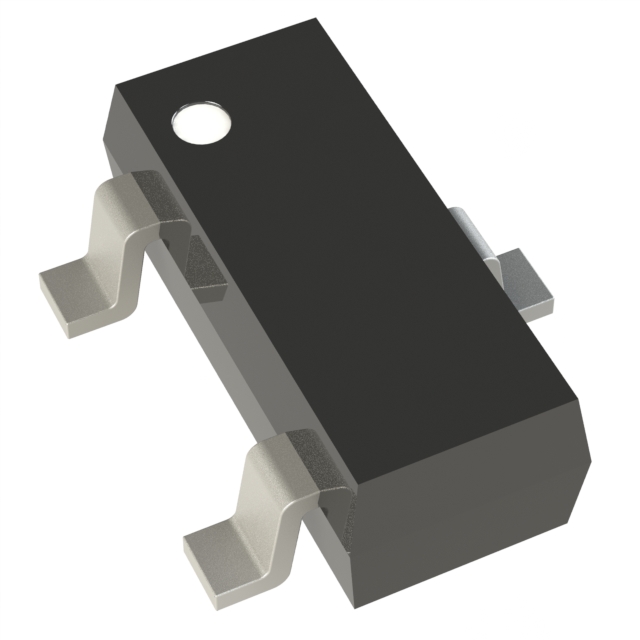

Diode Array 1 Pair Common Anode 30 V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BAS40-06-C	BAS40 Series

Current - Average Rectified (Io) (per Diode)	200 mA	200 mA
Current - Reverse Leakage @ Vr	200 nA	10 - 200 nA
Diode Configuration	1 Pair Common Anode	1 Pair Common Anode, 1 Pair Common Cathode
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction [Max]	125 °C	125 - 150 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	SOT-23-3, TO-236-3, SC-59	SOT-23-3, TO-236-3, SC-59
Reverse Recovery Time (trr)	5 ns	5 ns
Speed	Any Speed	Any Speed
Speed	200 mA	200 mA
Supplier Device Package	SOT-23-3 (TO-236)	SOT-23-3 (TO-236)
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V	30 - 40 V
Voltage - Forward (Vf) (Max) @ If	1 V	1 V

Part	Reverse Recovery Time (trr)	Supplier Device Package	Current - Average Rectified (Io) (per Diode)	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Diode Configuration	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Technology	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Speed	Speed
Diotec Semiconductor BAS40-06-C	5 ns	SOT-23-3 (TO-236)	200 mA	SC-59, SOT-23-3, TO-236-3	30 V	200 nA	1 Pair Common Anode	Surface Mount	1 V	Schottky	-55 °C	125 °C	Any Speed	200 mA
Diotec Semiconductor BAS40-05	5 ns	SOT-23-3 (TO-236)	200 mA	SC-59, SOT-23-3, TO-236-3	40 V	10 µA	1 Pair Common Cathode	Surface Mount	1 V	Schottky	-55 °C	150 °C	Any Speed	200 mA
